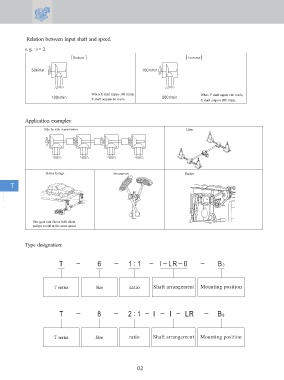

Page 2 - T series spiral bevel gear units
P. 2

Relation between input shaft and speed.
            e. g. : i = 2

                                Reducer                                          Increaser







                                        When X shaft inputs 100 r/min,                When Y-shaft inputs 100 r/min,
                                        Y shaft outputs 50 r/min.                     X shaft outputs 200 r/min.



            Application examples:

                    Side by side transmission                                   Lifter









                    Stereo Garage                Amusement                      Packer











               One gear unit drives both chain
               pulleys to roll at the same speed.


            Type designation:










                        T series          Size











                        T series          Size






                                                           02
   1   2   3   4   5   6   7
