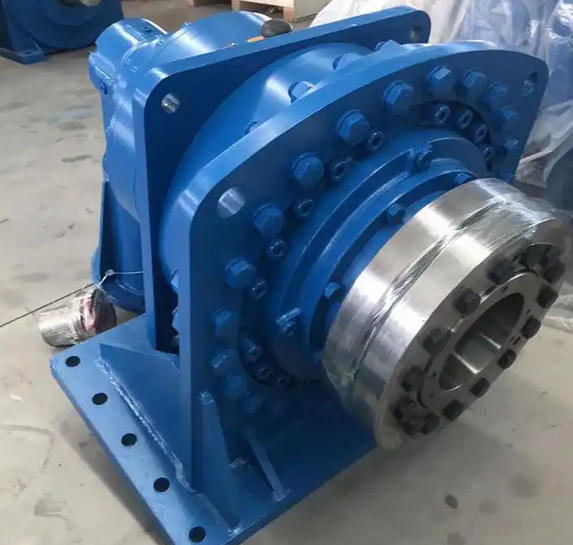

What is the typical service life of the core transmission components of P3SA16 planetary gearbox

The design life of the core transmission components (sun gear, planetary gear, inner ring gear, planetary carrier, bearings) of P3SA16 planetary gearbox under rated working conditions is usually 20000 hours (about 2.3 years), and the actual life is significantly affected by load, lubrication, installation, and maintenance.

Core component lifespan and influencing factors

Bearings: As the most susceptible component to fatigue failure, they have a rated lifespan of approximately 20000 hours; Radial/axial misalignment, poor alignment, or lubrication failure can shorten its lifespan by more than 50%.

Sun gear/planetary gear/internal gear ring: carburized, quenched and ground (HRC58-62), designed for a lifespan of ≥ 20000 hours; Overloading, impact, or high oil temperature can cause pitting and peeling on the tooth surface, reducing the lifespan to 8000-12000 hours.

Planetary carrier: made of high-strength alloy, designed for a lifespan of ≥ 25000 hours; Unbalanced load or resonance can cause deformation, leading to abnormal gear meshing and increased vibration.

The impact of working conditions on lifespan

Load: Continuous overload of 10% -20%, shortened lifespan to below 10000 hours; Frequent start stop/reversing generates impact loads, further reducing the lifespan to 6000-8000 hours.

Speed: High speed (≥ 3000rpm) increases the gear meshing frequency and oil temperature, reducing the service life by 20% -30%.

Lubrication: Mineral oil is replaced every 2000 hours, while synthetic oil can be extended to 5000 hours; Oil contamination or aging can accelerate wear and shorten lifespan by 40% -60%.

Installation: Poor alignment of the shaft system (radial>0.03mm or angular>0.05mm/m) can cause eccentric load, reducing the life of bearings and gears by 30% -50%.

Typical lifespan range

Ideal operating conditions (rated load, good lubrication, precise installation): 20000-25000 hours.

General operating conditions (load ≤ 80% rated, regular maintenance): 15000-20000 hours.

Adverse working conditions (overload, impact, poor lubrication): 6000-10000 hours.
