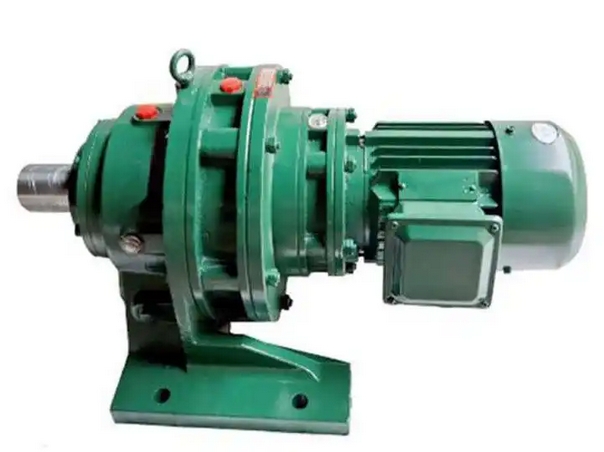

What are the components of the lubrication system for XWED53-1605-2.2KW cycloidal pinwheel reducer

The lubrication system of XWED53-1605-2.2KW cycloidal pinwheel reducer usually consists of the following parts:

Oil tank: used to store lubricating oil, provide oil source for the lubrication system, and also play a role in settling impurities and dissipating heat.

Oil pump: It is the power source of the lubrication system, which extracts lubricating oil from the oil tank, pressurizes it, and delivers it to various lubrication parts of the gearbox to ensure the circulation of lubricating oil.

Filter: Generally installed at the suction or outlet of the oil pump, it is used to filter impurities in the lubricating oil, such as metal particles, sludge, etc., to prevent these impurities from entering the lubrication area and exacerbating part wear.

Oil pipe: It is a transmission channel for lubricating oil, which delivers the lubricating oil output by the oil pump to the parts inside the reducer that need lubrication, such as bearings, gear meshing, etc.

Oil gauge or sight gauge: used to observe the oil level height inside the reducer, so that the operator can timely understand the amount of lubricating oil, ensure that the oil level is within the appropriate range, and prevent oil shortage or high oil level.

Ventilation cap: usually installed on the top of the oil tank or gearbox housing, it plays a ventilation role, maintains the balance between the pressure inside the oil tank and the outside, prevents lubricating oil from leaking due to pressure changes, and also prevents external dust and other impurities from entering the oil tank.

Seals, such as sealing rings, are used to prevent lubricating oil leakage, ensure the sealing of the lubrication system, ensure that lubricating oil can circulate in the specified oil circuit, and improve lubrication efficiency.

In addition, in some complex or special lubrication systems, there may be a cooler used to cool the lubricating oil and prevent excessive oil temperature from affecting the lubrication effect and gearbox performance.
