What are the precautions for adding lubricating grease to different models of reducers

The core differences in adding lubricating grease to different models of reducers lie in the selection of oil type, amount and method of filling, oil level control, and oil change cycle. It is necessary to strictly follow the instructions. The following are precautions for different types for quick comparison and operation.

1. Type: Cylindrical Gear
Oil type: Low viscosity grease/oil for high-speed use, extreme pressure grease (such as molybdenum disulfide lithium based grease) for low-speed heavy-duty use.
Oil bath: gear immersion ≤ 1 tooth height and ≥ 10mm; grease lubrication: bearing space.
Oil change cycle: The first oil change for a new machine takes 300 hours, followed by 2000-3000 hours per year.
Special requirement: Circulating lubrication requires monitoring of pump pressure difference and filter cleaning.

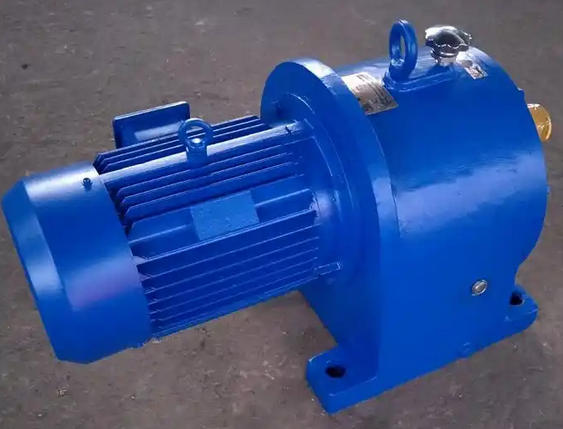

2. Type: Cycloid pinwheel
Oil type: Horizontal oil bath (VG220~320 gear oil), vertical small use 2 # lithium grease; Independently lubricated motor bearings are greased separately.
Refueling volume control: Oil bath: volume 1/3~1/2; Lubricating grease: Bearing space 1/2~2/3.
Oil change cycle: The first change of the new machine takes 150-300 hours, followed by 6-12 months; Gently move 3-5 times to infiltrate the upper needle teeth.
Special requirement: The oil level of the shared oil tank type should cover 1/2 of the inner ring of the motor bearing.

3. Type: Worm Gear Worm
Oil type: specialized oil for copper worm gears (VG220~680), low viscosity grease/oil for plastic worm gears; Avoid damaging copper parts with sulfur-containing extreme pressure agents.
Refueling amount control: The oil level should be maintained at the centerline of the fuel window (1/2 of the radius of the worm gear), and should not be lower than 1/3 or higher than 2/3.
Oil change cycle: The first oil change for a new machine is 500 hours, followed by 2000 hours per year; High temperature and high dust reduce by 30% to 50%.
Special requirements: Pay attention to the compatibility of seals to prevent oil from reacting with rubber.

4. Type: Planet
Oil type: Lithium based/polyurea grease for small and medium-sized low-speed applications, and shear resistant gear oil for large high-speed applications.
Fuel quantity control: grease lubrication: bearing space 1/3~2/3; Oil bath: 2/3 height of oil window.
Oil change cycle: The first oil change for a new machine takes 10-15 days, followed by 6-12 months; Continuous working conditions are shortened.
Special requirements: High shear resistance and avoidance of calcium based lipids (temperature resistance).
