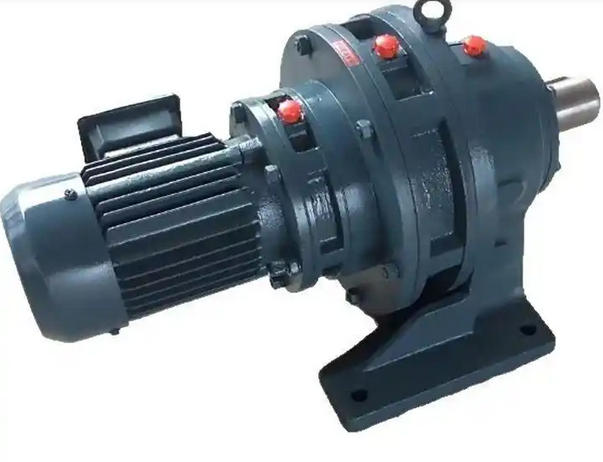

What are the advantages of BWED1812-289-0.55KW cycloidal reducer compared to other types of reducers

The following is a comparison of the core advantages of BWED1812-289-0.55KW cycloidal pinwheel reducer and other types of reducers (such as planetary gear reducers, worm gear reducers, etc.), combined with technical parameters and industry application characteristics:
1、 Transmission efficiency and reduction ratio advantages

1‌. High efficiency

The single-stage transmission efficiency reaches 94%, higher than planetary gear reducers (90-95%) and worm gear reducers (60-80%), with less energy loss.

The reduction ratio of two-stage transmission can reach 121-5133, far exceeding the speed ratio range of planetary gearboxes of the same power (such as 289 speed ratio, which requires multi-stage combination to achieve).

2‌. Ability to achieve high speed ratio

Multi level combination speed ratios can reach tens of thousands, suitable for scenarios that require ultra-low speed ratios (such as mixing equipment, heavy machinery).

2、 Structure and Performance Characteristics

Compact and lightweight

The planetary transmission structure reduces the volume by more than one-third compared to gear reducers of the same power, and the coaxial design of the input and output shafts saves installation space.

Low noise and smoothness

Simultaneous meshing of multiple teeth (with a theoretical contact tooth count of 1/2) results in significantly lower vibration and noise compared to worm gear reducers, and stronger overload capacity.

Long lifespan and reliability

The key components (cycloidal gear, needle gear sleeve) are made of GCr15 bearing steel quenched to HRC58-62. The rolling friction design has minimal wear, and the service life is 2-3 times longer than that of gear reducers.

3、 Comparison of applicable scenarios


4、 Maintenance and economy

Easy maintenance: The structure is simple, and disassembly only requires the replacement of vulnerable parts such as the needle gear sleeve, while the planetary gearbox requires the replacement of the planetary carrier as a whole.

Cost advantage: Under the same power, the price is lower than that of planetary gearboxes, and the energy consumption is also lower.

summary

The BWED1812-289-0.55KW cycloidal reducer has significant comprehensive advantages in efficiency, speed ratio, compactness, and durability, especially suitable for industrial scenarios that require high speed ratio, low noise, and long service life. However, attention should be paid to the high-speed shaft speed limit (≤ 1800r/min), and if higher speeds are required, other types should be chosen.
