Aluminum alloy shell single stage FCPK reducer

Description

Product introduction: FCPDK series micro worm reducer is a new generation of practical products developed by our company, in line with the standard Q/JF01-1999. The FCPDK series miniature worm gear reducer adopts the advanced "square box" structure, and the box body is die-casted with high quality aluminum alloy. The motor or brake motor, stepless speed changer, etc. are skillfully combined and installed with flanges or torque arms, so the speed can be adjusted as needed in the load. It is the equipment and production line that needs to adjust the speed and control device. The best choice among the best production lines.

It is suitable for the reduction gear of machinery, leather, textile, glass, ceramics, medical, light industry and other mechanical equipment. It is the best choice for modern transmission system to realize mechatronics in single machine transmission and production line.

Size	B	G	G1	G2	H	I	LH	M	N	N1	N2	KE	R
30	20	62.5	55	58	46	30	39	65	30	30	2	4-M6×9	51
45	30	74	65	68	55	45	49	65	35	35	2	4-M6×14	72
50	30	81.5	81	74.5	65	50	54.5	94	38	38	3	4-M6×9	81
63	45	99.5	120	93	79	63	70	90	45	45	5	8-M8×17	100
63A	45	99.5	120	93	79	63	70	90	45	45	5	8-M8×17	100
85	50	124	135	112	98	85	94.5	130	64	64	3.5	4-M10×18	138
110	56	148	155	138	125	110	120	165	74	74	3.5	8-M12×30	170

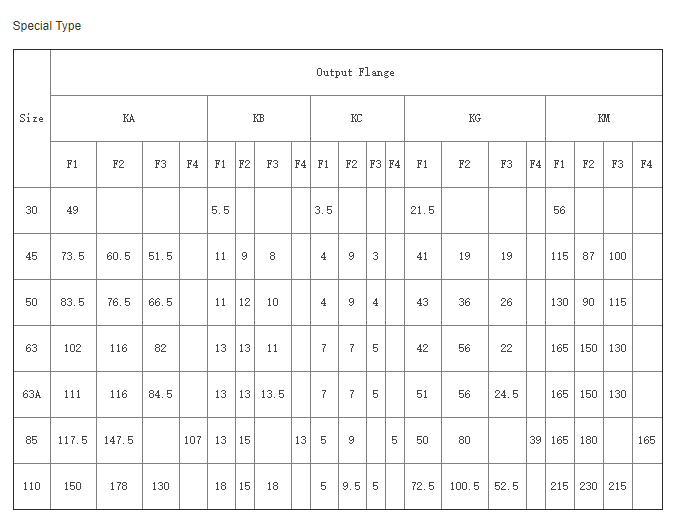

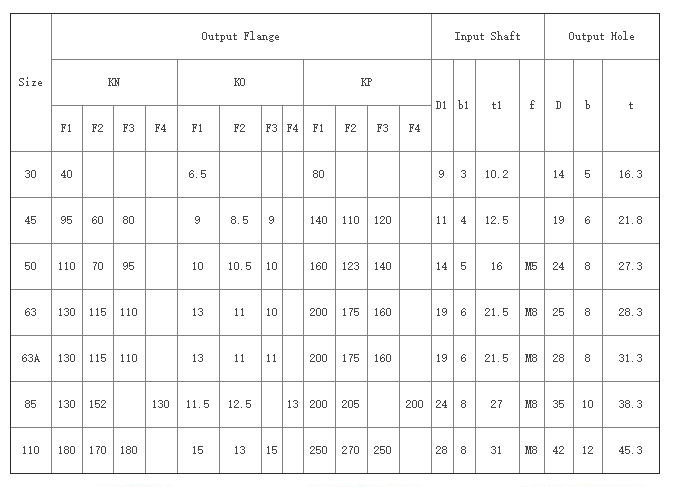

Size	Output Flange												Input Shaft				Output Hole			Weight Kg
	KA		KB	KC	KM		KN		KO		KP		D1	b1	t1	f	D	b	t
	FC	FL	KB	KC	FC	FL	FC	FL	FC	FL	FC	FL	D1	b1	t1	f	D	b	t
30	50.5	55.5	6	6	68	87	50	60	7	8.5	80	110	9	3	10.2		14	5	16.3	1
45	60.5	90.5	9	9	87		60		8.5		110		11	4	12.5		18	6	20.8	2.4
50	85	114.5	12	9	90		70		10.5		123		16	5	18	M6	25	8	28.3	3
63	86	116	13	7	150		115		10.5		175		18	6	20.5	M6	25	8	28.3	6
63A	85	111	13	7	165		130		13		200		18	6	20.5	M6	28	8	31.3	6
85	108	148.5	16	5	176		152		13		205		25	8	28	M8	35	10	38.3	11
110	131.5	179.5	16.5	11	230		170		13		270		25	8	28	M8	42	12	45.3	35
