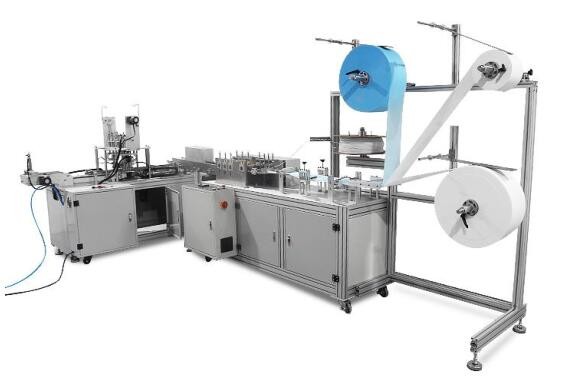

Automatic mask production line High-speed three-layer flat mask making machine(1 + 1 fully automatic)

  • FOB Reference price:YMCW101
  • Minimum order quantity:$30000
  • Category:Dongchuan Motor Series
  • Inquiry Send Email
    Description
    Guide

    Automatic mask production line High-speed three-layer flat mask making machine(1 + 1 fully automatic)

    After Warranty Service:Video technical support, Online support, Spare parts
    Local Service Location:
    None
    Showroom Location:
    None
    Condition:
    New
    Automatic Grade:
    Full-automatic, Automatic
    Brand Name:
    YCHAUTO
    Model Number:
    YMCW101
    Voltage:
    220v50hz
    Place of Origin:
    Guangdong, China
    Power:
    10kw
    Dimension(L*W*H):
    6500*3500*1850mm
    Weight:
    3000kg
    Certification:
    CE
    Warranty:
    1 YEAR
    Year:
    2019
    After-sales Service Provided:
    Free spare parts, Video technical support, Online support
    Production Capacity:
    100pcs
    Key Selling Points:
    Automatic
    Mask types:
    Flat
    Mask Material:
    Non-woven Fabrics
    Product name:
    Face Mask Making Machine
    Keywords:
    Nonwoven Fabric Medical Maks Proction Line
    Machine Type:
    Fully Automatic Production Line
    Material:
    Non-woven Farbic(10g-25g)
    Speed:
    60-80 Pcs/min
    Function:
    Making Surgical Face Mask
    Feature:
    stable working , high speed
    Suit for mask type:

    flat mask

    Power

    220V/50HZ    110V60HZ

    Working power

    9- 10KW

    Mask specification

    175*95mm

    Production efficiency

    60-80pcs/minute

    Failure rate

    ≤2%

    product percent of pass

    99%

    Compressed air

    0.5 ~ 0.7MPa, the use flow rate is about 300L / min

    Operating environment

    dust-free plant,temperature 10 ~ 35 ℃, humidity 5-35% HR

    Weight

    3000kg

    Dimensions

    6500*3500*1850mm


    This product is a full-automatic face mask production line, which realizes the entire automatic operation and simple operation. The whole process only needs 1-2 people to operate, and the labor cost is minimized,the whole automatic mask production line including these process :mask body forming , nose bridge side welding , cutting ,earloop welding ect


    This flat face mask making machine used for making 3 layer disposable surgical mask, it with two sets ultrasonic ear loop welding machine , will greatly improve the mask output , can make 5000-6000pcs mask per hour


    Mask-equipment-1+1-machine-quotation.pdf
