FLENDER ONE
WELCOME TO THE NEW ERA OF INDUSTRIAL DRIVE TECHNOLOGY: INDIVIDUAL, EFFICIENT, SMART.
FLENDER ONE® is the new platform for the best industrial gearboxes from FLENDER. As single-stage and multi-stage gearboxes, they are suitable for more than a hundred applications.
INDIVIDUALLY
Our new FLENDER ONE gearbox platform is available with almost any configuration and performance. You decide what you need! From pumps to bucket elevators to conveyor belts, lifting applications and paper machines – FLENDER ONE covers more than a hundred applications. Tailor-made solutions that reduce your operating costs: We call this “application fit”.
EFFICIENT
A FLENDER ONE gearbox that perfectly suits your requirements is efficient in planning and operation. Through simplified processes, immediately available 3D data and shorter delivery times, you can save around 25% time in planning. And thanks to reduced power loss, you save valuable energy during operation.
SMART
With AIQ gearbox intelligence, you can monitor the speed, temperature and vibrations of your gearbox around the clock. The system warns of the slightest irregularities, evaluates the condition of components and helps with the correct alignment of the drive train. The AIQ Core Sensor is installed ex works in every new FLENDER ONE gearbox.
SAME PERFORMANCE WITH FEWER RESOURCES
We have designed bearings and thermal performance to better suit the needs of our customers, so that oversizing is no longer necessary. The result is a transmission with the highest performance while using fewer resources, both in production and in operation.
YOUR BENEFITS AT A GLANCE
- Spur and bevel-helical gearboxes developed from scratch for more than 100 applications
- Tailor-made design avoids waste of resources in design and operation

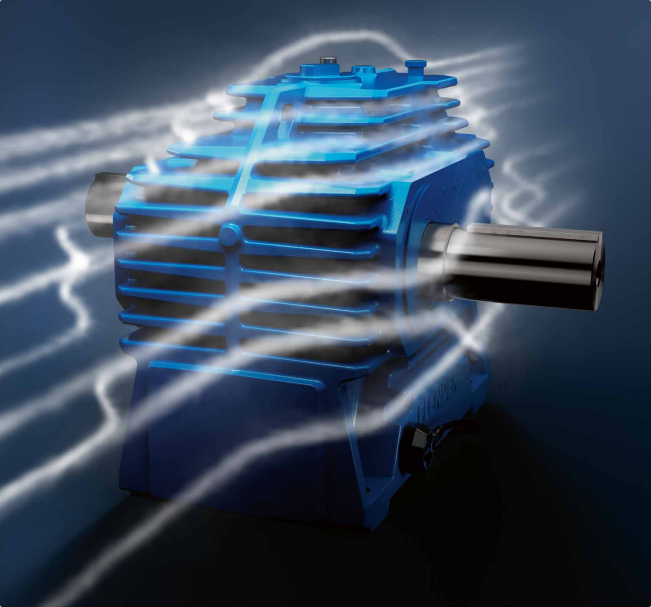

- Reduced energy costs due to increased cooling efficiency and an average of 20% lower power loss compared to the predecessor
- Performance-optimized gearing METAPERFORM
- Innovative configuration even without gearbox know-how thanks to the new FLENDER ONE configurator
- AIQ gearbox intelligence ex works with integrated sensors and innovative analysis functions

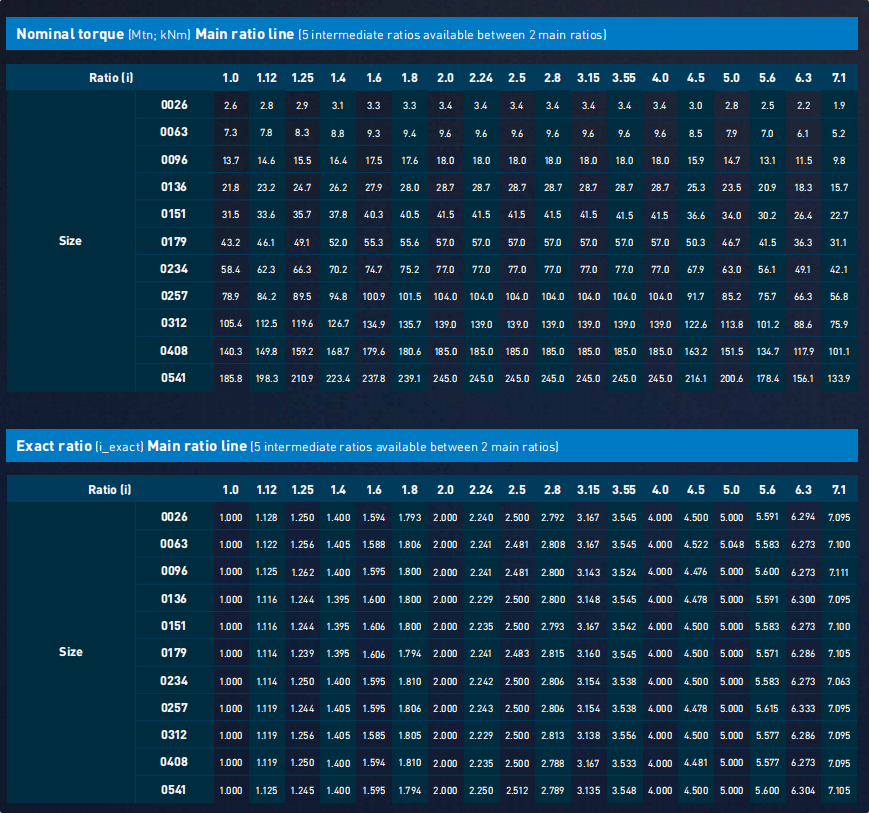

- 1.9 kNM to 245 kNm nominal torque range
- “Speed fit” of over 98.5 percent: the densest gear ratio network in the world with 103 gear ratios from i = 1.0 to i = 7.1 per size for the single-stage FLENDER ONE
A GEARBOX THAT MEETS YOUR REQUIREMENTS TO THE POINT
Suitable for the following industries and applications, among others:
- Construction and port: belt system, hoists, mixers/agitators/aerators
- Chemistry: mixers/agitators/aerators, pumps
- Energy generation: blowers/fans, compressors, pumps, generator sets, water turbines
- Food & Beverage: Belt line, bucket elevator, conveyors, rollers/cylinders, mixers/agitators/aerators, pumps
- Metals: belt system, conveyor, rollers / cylinders, hoist, winch / winder, rolling mill / calender
- Minerals and raw materials: conveyors, pumps, crushers/shredders, compressors
- Press, chassis, positioning device, machine tool
- Passenger transport: cable car
- Water & wastewater: mixers / agitators / aerators, test bench system, pump, generator, water turbine
- Pulp and Paper: Rolls/Cylinders, Compressors, Mixers/Agitators/Aerators, Mills, Rolling Mills/Calenders
DID YOU KNOW?

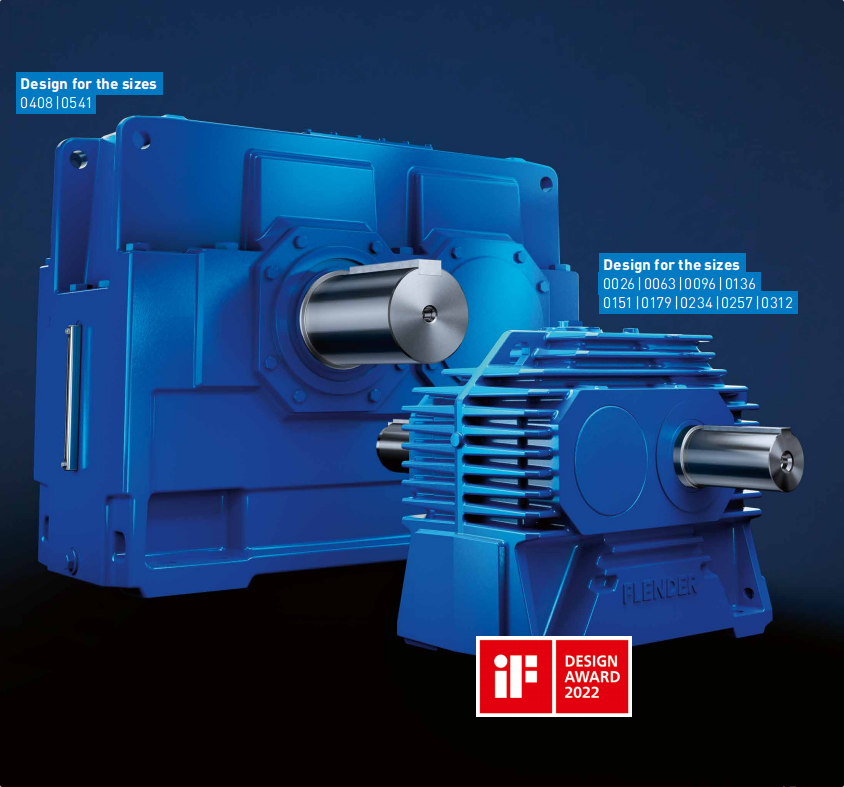

Our FLENDER ONE single-stage gearbox was awarded the iF Design Award for its gearbox design. The eye-catching ribbed look of the single-stage version serves to increase cooling efficiency. Combined with the characteristic Flender blue and octagonal design elements, this was the first milestone in the reinterpretation of the Flender industrial gearbox.
FLENDER ONE Single-Stage-EN； FLENDER ONE Single-Stage-CN ；FLENDER ONE Single-Stage DATA EN；FLENDER ONE Single-Stage Ordering Information.pdf
FLENDER ONE Single-Stage Product: Complete Model Portfolio List

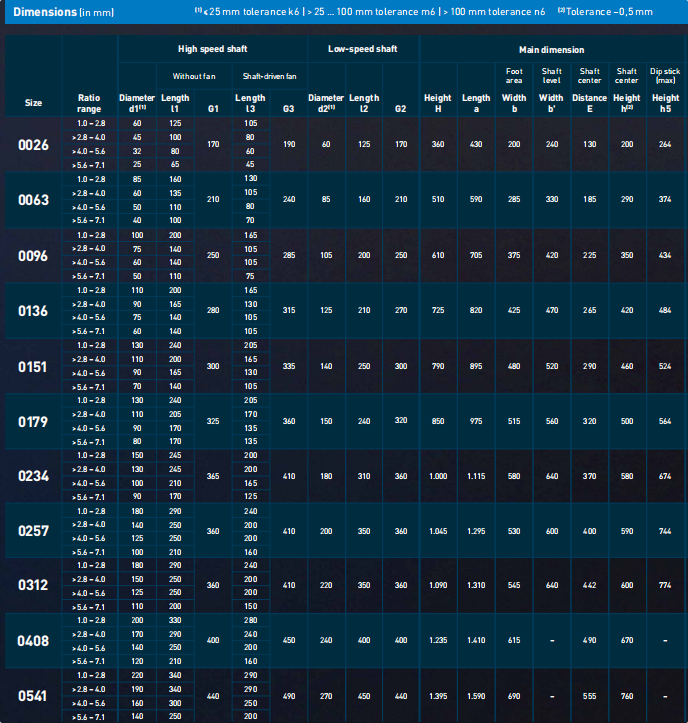

Gearbox Sizes
0026, 0063, 0096, 0136, 0151, 0179, 0234, 0257, 0312, 0408, 0541Rated Transmission Ratios
1.0, 1.12, 1.25, 1.4, 1.6, 1.8, 2.0, 2.24, 2.5, 2.8, 3.15, 3.55, 4.0, 4.5, 5.0, 5.6, 6.3, 7.1FLENDER ONE Single-Stage Product: New Model Designation System (Configuration Guide + Model Examples + Detailed Explanation)
Strictly adhering to the model rules for single-stage products—and incorporating the specific mounting options and shaft types available exclusively for the H1 series—the model designation is structured as follows: "H1 + Configuration Prefix + N + Gearbox Size - Rated Transmission Ratio." The core model format, configuration mapping, and illustrative examples are provided below (applicable to all sizes from 0026 through 0541 and all transmission ratios from 1.0 through 7.1; all listed items are single-stage products):
Combining the 11 physical sizes (0026 to 0541) and 18 primary rated transmission ratios (1.0 to 7.1) available in the FLENDER ONE series, the complete list of full model numbers for FLENDER ONE single-stage products—specifically covering the horizontal + solid shaft configuration—is provided below:
Size 0026: H1SHN0026-1.0, H1SHN0026-1.12, H1SHN0026-1.25, H1SHN0026-1.4, H1SHN0026-1.6, H1SHN0026-1.8, H1SHN0026-2.0, H1SHN0026-2.24, H1SHN0026-2.5, H1SHN0026-2.8, H1SHN0026-3.15, H1SHN0026-3.55, H1SHN0026-4.0, H1SHN0026-4.5, H1SHN0026-5.0, H1SHN0026-5.6, H1SHN0026-6.3, H1SHN0026-7.1
Size 0063: H1SHN0063-1.0, H1SHN0063-1.12, H1SHN0063-1.25, H1SHN0063-1.4, H1SHN0063-1.6, H1SHN0063-1.8, H1SHN0063-2.0, H1SHN0063-2.24, H1SHN0063-2.5, H1SHN0063-2.8, H1SHN0063-3.15, H1SHN0063-3.55, H1SHN0063-4.0, H1SHN0063-4.5, H1SHN0063-5.0, H1SHN0063-5.6, H1SHN0063-6.3, H1SHN0063-7.1
0096 Specifications: H1SHN0096-1.0, H1SHN0096-1.12, H1SHN0096-1.25, H1SHN0096-1.4, H1SHN0096-1.6, H1SHN0096-1.8, H1SHN0096-2.0, H1SHN0096-2.24, H1SHN0096-2.5, H1SHN0096-2.8, H1SHN0096-3.15, H1SHN0096-3.55, H1SHN0096-4.0, H1SHN0096-4.5, H1SHN0096-5.0, H1SHN0096-5.6, H1SHN0096-6.3, H1SHN0096-7.1
0136 Specifications: H1SHN0136-1.0, H1SHN0136-1.12, H1SHN0136-1.25, H1SHN0136-1.4, H1SHN0136-1.6, H1SHN0136-1.8, H1SHN0136-2.0, H1SHN0136-2.24, H1SHN0136-2.5, H1SHN0136-2.8, H1SHN0136-3.15, H1SHN0136-3.55, H1SHN0136-4.0, H1SHN0136-4.5, H1SHN0136-5.0, H1SHN0136-5.6, H1SHN0136-6.3, H1SHN0136-7.1
0151 Specifications: H1SHN0151-1.0, H1SHN0151-1.12, H1SHN0151-1.25, H1SHN0151-1.4, H1SHN0151-1.6, H1SHN0151-1.8, H1SHN0151-2.0, H1SHN0151-2.24, H1SHN0151-2.5, H1SHN0151-2.8, H1SHN0151-3.15, H1SHN0151-3.55, H1SHN0151-4.0, H1SHN0151-4.5, H1SHN0151-5.0, H1SHN0151-5.6, H1SHN0151-6.3, H1SHN0151-7.1
0179 Specifications: H1SHN0179-1.0, H1SHN0179-1.12, H1SHN0179-1.25, H1SHN0179-1.4, H1SHN0179-1.6, H1SHN0179-1.8, H1SHN0179-2.0, H1SHN0179-2.24, H1SHN0179-2.5, H1SHN0179-2.8, H1SHN0179-3.15, H1SHN0179-3.55, H1SHN0179-4.0, H1SHN0179-4.5, H1SHN0179-5.0, H1SHN0179-5.6, H1SHN0179-6.3, H1SHN0179-7.1
0234 Specifications: H1SHN0234-1.0, H1SHN0234-1.12, H1SHN0234-1.25, H1SHN0234-1.4, H1SHN0234-1.6, H1SHN0234-1.8, H1SHN0234-2.0, H1SHN0234-2.24, H1SHN0234-2.5, H1SHN0234-2.8, H1SHN0234-3.15, H1SHN0234-3.55, H1SHN0234-4.0, H1SHN0234-4.5, H1SHN0234-5.0, H1SHN0234-5.6, H1SHN0234-6.3, H1SHN0234-7.1
0257 Specifications: H1SHN0257-1.0, H1SHN0257-1.12, H1SHN0257-1.25, H1SHN0257-1.4, H1SHN0257-1.6, H1SHN0257-1.8, H1SHN0257-2.0, H1SHN0257-2.24, H1SHN0257-2.5, H1SHN0257-2.8, H1SHN0257-3.15, H1SHN0257-3.55, H1SHN0257-4.0, H1SHN0257-4.5, H1SHN0257-5.0, H1SHN0257-5.6, H1SHN0257-6.3, H1SHN0257-7.1
0312 Specifications: H1SHN0312-1.0, H1SHN0312-1.12, H1SHN0312-1.25, H1SHN0312-1.4, H1SHN0312-1.6, H1SHN0312-1.8, H1SHN0312-2.0, H1SHN0312-2.24, H1SHN0312-2.5, H1SHN0312-2.8, H1SHN0312-3.15, H1SHN0312-3.55, H1SHN0312-4.0, H1SHN0312-4.5, H1SHN0312-5.0, H1SHN0312-5.6, H1SHN0312-6.3, H1SHN0312-7.1
0408 Specifications: H1SHN0408-1.0, H1SHN0408-1.12, H1SHN0408-1.25, H1SHN0408-1.4, H1SHN0408-1.6, H1SHN0408-1.8, H1SHN0408-2.0, H1SHN0408-2.24, H1SHN0408-2.5, H1SHN0408-2.8, H1SHN0408-3.15, H1SHN0408-3.55, H1SHN0408-4.0, H1SHN0408-4.5, H1SHN0408-5.0, H1SHN0408-5.6, H1SHN0408-6.3, H1SHN0408-7.1
0541 Specifications: H1SHN0541-1.0, H1SHN0541-1.12, H1SHN0541-1.25, H1SHN0541-1.4, H1SHN0541-1.6, H1SHN0541-1.8, H1SHN0541-2.0, H1SHN0541-2.24, H1SHN0541-2.5, H1SHN0541-2.8, H1SHN0541-3.15, H1SHN0541-3.55, H1SHN0541-4.0, H1SHN0541-4.5, H1SHN0541-5.0, H1SHN0541-5.6, H1SHN0541-6.3, H1SHN0541-7.1
根据您定义的最新型号格式规则，结合 FLENDER ONE 系列的 11 种物理规格（0026 至 0541）以及 18 种主额定传动比（1.0 至 7.1），为您整理的 FLENDER ONE 单级产品（仅含卧式+实心轴配置）全规格完整型号清单如下 1, 2：
0026 规格H1SHN0026-1.0, H1SHN0026-1.12, H1SHN0026-1.25, H1SHN0026-1.4, H1SHN0026-1.6, H1SHN0026-1.8, H1SHN0026-2.0, H1SHN0026-2.24, H1SHN0026-2.5, H1SHN0026-2.8, H1SHN0026-3.15, H1SHN0026-3.55, H1SHN0026-4.0, H1SHN0026-4.5, H1SHN0026-5.0, H1SHN0026-5.6, H1SHN0026-6.3, H1SHN0026-7.1
0063 规格H1SHN0063-1.0, H1SHN0063-1.12, H1SHN0063-1.25, H1SHN0063-1.4, H1SHN0063-1.6, H1SHN0063-1.8, H1SHN0063-2.0, H1SHN0063-2.24, H1SHN0063-2.5, H1SHN0063-2.8, H1SHN0063-3.15, H1SHN0063-3.55, H1SHN0063-4.0, H1SHN0063-4.5, H1SHN0063-5.0, H1SHN0063-5.6, H1SHN0063-6.3, H1SHN0063-7.1
0096 规格H1SHN0096-1.0, H1SHN0096-1.12, H1SHN0096-1.25, H1SHN0096-1.4, H1SHN0096-1.6, H1SHN0096-1.8, H1SHN0096-2.0, H1SHN0096-2.24, H1SHN0096-2.5, H1SHN0096-2.8, H1SHN0096-3.15, H1SHN0096-3.55, H1SHN0096-4.0, H1SHN0096-4.5, H1SHN0096-5.0, H1SHN0096-5.6, H1SHN0096-6.3, H1SHN0096-7.1
0136 规格H1SHN0136-1.0, H1SHN0136-1.12, H1SHN0136-1.25, H1SHN0136-1.4, H1SHN0136-1.6, H1SHN0136-1.8, H1SHN0136-2.0, H1SHN0136-2.24, H1SHN0136-2.5, H1SHN0136-2.8, H1SHN0136-3.15, H1SHN0136-3.55, H1SHN0136-4.0, H1SHN0136-4.5, H1SHN0136-5.0, H1SHN0136-5.6, H1SHN0136-6.3, H1SHN0136-7.1
0151 规格H1SHN0151-1.0, H1SHN0151-1.12, H1SHN0151-1.25, H1SHN0151-1.4, H1SHN0151-1.6, H1SHN0151-1.8, H1SHN0151-2.0, H1SHN0151-2.24, H1SHN0151-2.5, H1SHN0151-2.8, H1SHN0151-3.15, H1SHN0151-3.55, H1SHN0151-4.0, H1SHN0151-4.5, H1SHN0151-5.0, H1SHN0151-5.6, H1SHN0151-6.3, H1SHN0151-7.1
0179 规格H1SHN0179-1.0, H1SHN0179-1.12, H1SHN0179-1.25, H1SHN0179-1.4, H1SHN0179-1.6, H1SHN0179-1.8, H1SHN0179-2.0, H1SHN0179-2.24, H1SHN0179-2.5, H1SHN0179-2.8, H1SHN0179-3.15, H1SHN0179-3.55, H1SHN0179-4.0, H1SHN0179-4.5, H1SHN0179-5.0, H1SHN0179-5.6, H1SHN0179-6.3, H1SHN0179-7.1
0234 规格H1SHN0234-1.0, H1SHN0234-1.12, H1SHN0234-1.25, H1SHN0234-1.4, H1SHN0234-1.6, H1SHN0234-1.8, H1SHN0234-2.0, H1SHN0234-2.24, H1SHN0234-2.5, H1SHN0234-2.8, H1SHN0234-3.15, H1SHN0234-3.55, H1SHN0234-4.0, H1SHN0234-4.5, H1SHN0234-5.0, H1SHN0234-5.6, H1SHN0234-6.3, H1SHN0234-7.1
0257 规格H1SHN0257-1.0, H1SHN0257-1.12, H1SHN0257-1.25, H1SHN0257-1.4, H1SHN0257-1.6, H1SHN0257-1.8, H1SHN0257-2.0, H1SHN0257-2.24, H1SHN0257-2.5, H1SHN0257-2.8, H1SHN0257-3.15, H1SHN0257-3.55, H1SHN0257-4.0, H1SHN0257-4.5, H1SHN0257-5.0, H1SHN0257-5.6, H1SHN0257-6.3, H1SHN0257-7.1
0312 规格H1SHN0312-1.0, H1SHN0312-1.12, H1SHN0312-1.25, H1SHN0312-1.4, H1SHN0312-1.6, H1SHN0312-1.8, H1SHN0312-2.0, H1SHN0312-2.24, H1SHN0312-2.5, H1SHN0312-2.8, H1SHN0312-3.15, H1SHN0312-3.55, H1SHN0312-4.0, H1SHN0312-4.5, H1SHN0312-5.0, H1SHN0312-5.6, H1SHN0312-6.3, H1SHN0312-7.1
0408 规格H1SHN0408-1.0, H1SHN0408-1.12, H1SHN0408-1.25, H1SHN0408-1.4, H1SHN0408-1.6, H1SHN0408-1.8, H1SHN0408-2.0, H1SHN0408-2.24, H1SHN0408-2.5, H1SHN0408-2.8, H1SHN0408-3.15, H1SHN0408-3.55, H1SHN0408-4.0, H1SHN0408-4.5, H1SHN0408-5.0, H1SHN0408-5.6, H1SHN0408-6.3, H1SHN0408-7.1
0541 规格H1SHN0541-1.0, H1SHN0541-1.12, H1SHN0541-1.25, H1SHN0541-1.4, H1SHN0541-1.6, H1SHN0541-1.8, H1SHN0541-2.0, H1SHN0541-2.24, H1SHN0541-2.5, H1SHN0541-2.8, H1SHN0541-3.15, H1SHN0541-3.55, H1SHN0541-4.0, H1SHN0541-4.5, H1SHN0541-5.0, H1SHN0541-5.6, H1SHN0541-6.3, H1SHN0541-7.1
FLENDER ONE 单级产品全规格完整型号清单（仅含卧式+实心轴配置）（订货信息N后面没有00或0）
一、0026规格（所有传动比+卧式+实心轴）
H1SHN26-1.0
H1SHN26-1.12
H1SHN26-1.25
H1SHN26-1.4
H1SHN26-1.6
H1SHN26-1.8
H1SHN26-2.0
H1SHN26-2.24
H1SHN26-2.5
H1SHN26-2.8
H1SHN26-3.15
H1SHN26-3.55
H1SHN26-4.0
H1SHN26-4.5
H1SHN26-5.0
H1SHN26-5.6
H1SHN26-6.3
H1SHN26-7.1
二、0063规格（所有传动比+卧式+实心轴）
H1SHN63-1.0
H1SHN63-1.12
H1SHN63-1.25
H1SHN63-1.4
H1SHN63-1.6
H1SHN63-1.8
H1SHN63-2.0
H1SHN63-2.24
H1SHN63-2.5
H1SHN63-2.8
H1SHN63-3.15
H1SHN63-3.55
H1SHN63-4.0
H1SHN63-4.5
H1SHN63-5.0
H1SHN63-5.6
H1SHN63-6.3
H1SHN63-7.1
三、0096规格（所有传动比+卧式+实心轴）
H1SHN96-1.0
H1SHN96-1.12
H1SHN96-1.25
H1SHN96-1.4
H1SHN96-1.6
H1SHN96-1.8
H1SHN96-2.0
H1SHN96-2.24
H1SHN96-2.5
H1SHN96-2.8
H1SHN96-3.15
H1SHN96-3.55
H1SHN96-4.0
H1SHN96-4.5
H1SHN96-5.0
H1SHN96-5.6
H1SHN96-6.3
H1SHN96-7.1
四、0136规格（所有传动比+卧式+实心轴）
H1SHN136-1.0
H1SHN136-1.12
H1SHN136-1.25
H1SHN136-1.4
H1SHN136-1.6
H1SHN136-1.8
H1SHN136-2.0
H1SHN136-2.24
H1SHN136-2.5
H1SHN136-2.8
H1SHN136-3.15
H1SHN136-3.55
H1SHN136-4.0
H1SHN136-4.5
H1SHN136-5.0
H1SHN136-5.6
H1SHN136-6.3
H1SHN136-7.1
五、0151规格（所有传动比+卧式+实心轴）
H1SHN151-1.0
H1SHN151-1.12
H1SHN151-1.25
H1SHN151-1.4
H1SHN151-1.6
H1SHN151-1.8
H1SHN151-2.0
H1SHN151-2.24
H1SHN151-2.5
H1SHN151-2.8
H1SHN151-3.15
H1SHN151-3.55
H1SHN151-4.0
H1SHN151-4.5
H1SHN151-5.0
H1SHN151-5.6
H1SHN151-6.3
H1SHN151-7.1
六、0179规格（所有传动比+卧式+实心轴）
H1SHN179-1.0
H1SHN179-1.12
H1SHN179-1.25
H1SHN179-1.4
H1SHN179-1.6
H1SHN179-1.8
H1SHN179-2.0
H1SHN179-2.24
H1SHN179-2.5
H1SHN179-2.8
H1SHN179-3.15
H1SHN179-3.55
H1SHN179-4.0
H1SHN179-4.5
H1SHN179-5.0
H1SHN179-5.6
H1SHN179-6.3
H1SHN179-7.1
七、0234规格（所有传动比+卧式+实心轴）
H1SHN234-1.0
H1SHN234-1.12
H1SHN234-1.25
H1SHN234-1.4
H1SHN234-1.6
H1SHN234-1.8
H1SHN234-2.0
H1SHN234-2.24
H1SHN234-2.5
H1SHN234-2.8
H1SHN234-3.15
H1SHN234-3.55
H1SHN234-4.0
H1SHN234-4.5
H1SHN234-5.0
H1SHN234-5.6
H1SHN234-6.3
H1SHN234-7.1
八、0257规格（所有传动比+卧式+实心轴）
H1SHN257-1.0
H1SHN257-1.12
H1SHN257-1.25
H1SHN257-1.4
H1SHN257-1.6
H1SHN257-1.8
H1SHN257-2.0
H1SHN257-2.24
H1SHN257-2.5
H1SHN257-2.8
H1SHN257-3.15
H1SHN257-3.55
H1SHN257-4.0
H1SHN257-4.5
H1SHN257-5.0
H1SHN257-5.6
H1SHN257-6.3
H1SHN257-7.1
九、0312规格（所有传动比+卧式+实心轴）
H1SHN312-1.0
H1SHN312-1.12
H1SHN312-1.25
H1SHN312-1.4
H1SHN312-1.6
H1SHN312-1.8
H1SHN312-2.0
H1SHN312-2.24
H1SHN312-2.5
H1SHN312-2.8
H1SHN312-3.15
H1SHN312-3.55
H1SHN312-4.0
H1SHN312-4.5
H1SHN312-5.0
H1SHN312-5.6
H1SHN312-6.3
H1SHN312-7.1
十、0408规格（所有传动比+卧式+实心轴）
H1SHN408-1.0
H1SHN408-1.12
H1SHN408-1.25
H1SHN408-1.4
H1SHN408-1.6
H1SHN408-1.8
H1SHN408-2.0
H1SHN408-2.24
H1SHN408-2.5
H1SHN408-2.8
H1SHN408-3.15
H1SHN408-3.55
H1SHN408-4.0
H1SHN408-4.5
H1SHN408-5.0
H1SHN408-5.6
H1SHN408-6.3
H1SHN408-7.1
十一、0541规格（所有传动比+卧式+实心轴）
H1SHN541-1.0
H1SHN541-1.12
H1SHN541-1.25
H1SHN541-1.4
H1SHN541-1.6
H1SHN541-1.8
H1SHN541-2.0
H1SHN541-2.24
H1SHN541-2.5
H1SHN541-2.8
H1SHN541-3.15
H1SHN541-3.55
H1SHN541-4.0
H1SHN541-4.5
H1SHN541-5.0
H1SHN541-5.6
H1SHN541-6.3
H1SHN541-7.1
