SF67...Helical gear worm gear reducer (without motor

Product Item:SF67

FOB Reference price：$274

Minimum order quantity：10Piece

Customized logo：50Piece

Payment method：T/T

Supply capacity：30 day（800Piece）

Delivery time：30 day (1 - 100 Piece)

Packing：Standard export plywood case

Port：NINGBO/SHANGHAI PORT

Warranty：one year

Brand Name：WGT

Place of Origin：Zhejiang, China

View online catalog

Category：S series helical worm gear units

Description

Guide

Selection

Model

Dimension

Note

SF67/S67/SAF67/SA67/SAZ67/Helical gear worm gear reducer (without motor) series worm gear reducer has the usual characteristics, the machine also uses helical gear-worm gear form, so that The structure is more rationalized, which not only changes the transmission efficiency and carrying capacity higher than that of the single-stage worm gear transmission, but also reduces the space footprint in the structural layout, and at the same time, can obtain a larger transmission ratio under similar volume conditions. It is more conducive to the configuration of the equipment. The machine can be combined with various reduction and transmission to meet different usage requirements.

Electronic Catalog PDF Catalog

Product Description

Features
●High modular design, biomimetic surface with owned
intellectual property right.
◆Adopt German worm hob to process the worm wheel.
◆With the special gear geometry, it gets high torque,
efficiency and long life circle.
◆It can achieve the direct combination for two sets of
gearbox.
◆Mounting mode: foot mounted, fiange mounted, torque
arm mounted.
◆Output shaft: solid shaft, hollow shaf.

Main applied for
◆Chemical industry and environmental protection
◆Metal processing
◆Building and construction
◆Agriculture and food
◆Textile and leather
◆Forest and paper
◆Car washing machinery

Housing material	Cast iron/Ductile iron
Housing hardness	HBS190-240
Gear material	20CrMnTi alloy steel
Surface hardness of gears	HRC58*~62。
Gear core hardness	HRC33~40
Input / Output shaft material	42CrMo alloy steel
Input / Output shaft hardness	HRC25~30
Machining precision of gears	accurate grinding, 6~5 Grade
Lubricating oil	GB L-CKC220-460, Shell 0mala220-460
Heat treatment	tempering, cementiting, quenching, etC.
Effciency	94%~96% (depends on the transmission stage)
Noise (MAX)	60~ 68dB
Temp. rise (MAX)	40°C
Temp. rise (OiI)(MAX)	50°C
Vibration	≤20μm
Backlash	≤20Arcmin
Brand of bearings	China top brand bearing, HRB/LYC/ZWZ/C&U. Or other brands requested,SKF, FAG, INA, NSK.
Brand of oil seal	NAK -- Taiwan or other brands requested

S series reducer has the following models:
S37 S47 S57 S67 S77 S87 S97
SA37 SA47 SA57 SA67 SA77 SA87 SA97
SF37 SF47 SF57 SF67 SF77 SF87 SF97
SAF37 SAF47 SAF57 SAF67 SAF77 SAF87 SAF97
SAT37 SAT47 SAT57 SAT67 SAT77 SAT87 SAT97
SAZ37 SAZ47 SAZ57 SAZ67 SAZ77 SAZ87 SAZ97

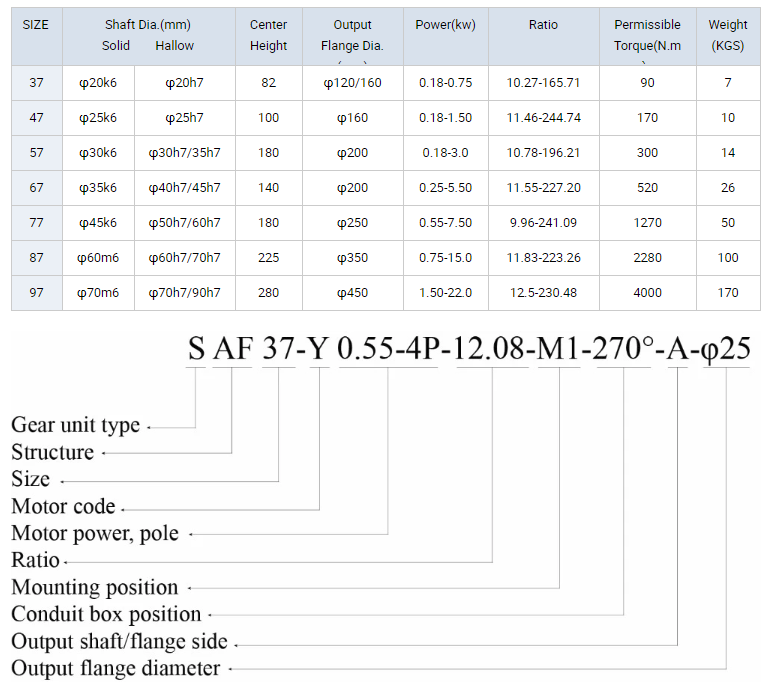

SIZE
