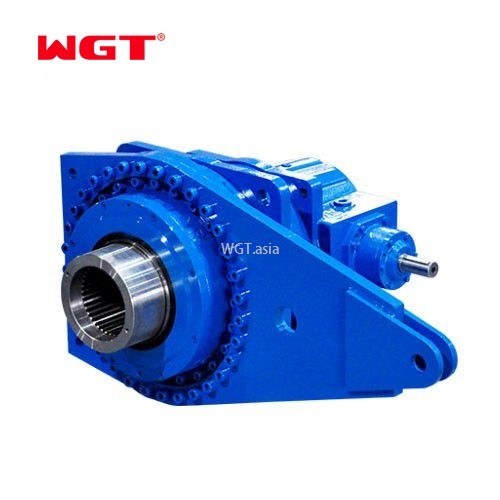

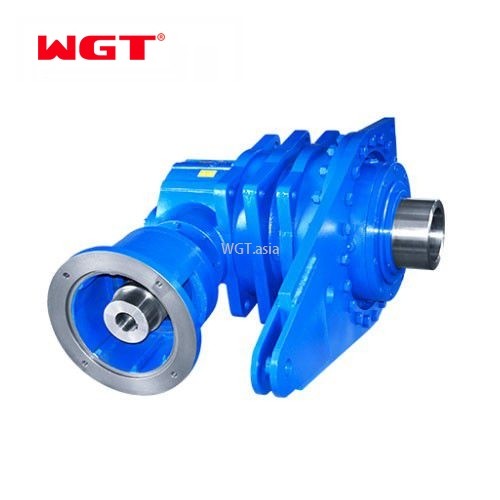

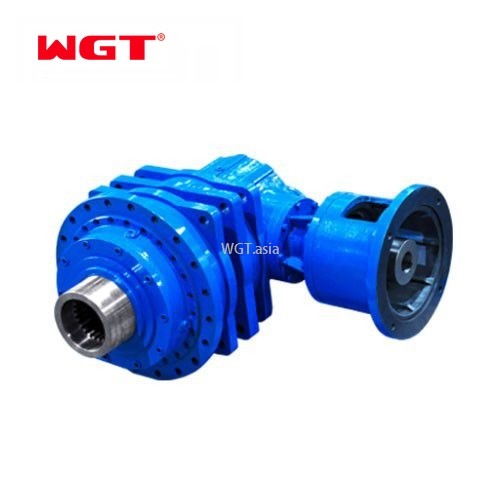

 P Series Planetary gear reduction unit - P9-36 P Series Planetary gear reduction unit - P9-36 P Series Planetary gear reduction unit - P9-36 P Series Planetary gear reduction unit - P9-36

P Series Planetary gear reduction unit - P9-36

  • Product Item:P9-36
  • FOB Reference price:$2000~$5000
  • Minimum order quantity:1Piece
  • Customized logo:10Piece
  • Payment method:T/T
  • Supply capacity:30 day(300Piece)
  • Delivery time:30 day (1 - 300 Piece)
  • Packing:Standard export plywood case
  • Port:NINGBO/SHANGHAI PORT
  • Warranty:one year
  • Brand Name:WGT
  • Place of Origin:Zhejiang, China
  • View online Catalog
  • Category:P Series Planetary gear reduction unit
  • gearbox , P
    Inquiry Send Email PDF
    Description
    Guide
    Model
    Dimension
    Note

    P series planetary gear units,High Quality P series planetary gear units,P series planetary gear units Details
    P series gear reducer BOOK.pngElectronic Catalog BOOK5.pngPDF Catalog

    1. P series planetary reducer adopts modular design and can be changed according to customer requirements;

    2. The reducer adopts involute planetary gear transmission, and the internal control uses internal and external meshing and power splitting;

    3. The gears are all carburized and quenched to obtain a high-hard wear-resistant surface. After the gears are heat-treated, all the teeth are ground, which reduces the noise and improves the efficiency and service life of the whole machine.

    4. P series planetary gear reducer features light weight, small volume, large transmission ratio range, high efficiency, stable operation and low noise adaptability. Reducer is widely used in metallurgy, mining, lifting and transportation, power, energy, building and building materials, light industry, transportation and other industrial sectors.

    Performance characteristics:

    1. P series planetary gear reducer adopts involute planetary gear transmission, which makes rational use of internal and external gears and power splitting. Therefore, it has light weight, small size and transmission ratio range.

    Large, high efficiency, stable operation, low noise, strong adaptability, etc.

    2. The box body is made of spherical plastic cast iron, which greatly improves the rigidity and shock resistance of the box.

    3. Input mode: concentric shaft input, helical gear input, bevel gear, helical gear input, bevel gear input.

    4. Output mode: internal spline type, hollow shaft shrinking disc type, external spline type, solid shaft flat key.

    5, installation form: horizontal installation, vertical installation, torque arm installation.

    6, using modular design; can be changed according to customer requirements.

    7, and R, K series combination can get a larger speed ratio.

    Technical Parameters:

    Speed ratio range: basic type 25-4000

    Torque range: 2.6-900 kNm

    Power range: 22-1920 kW

    P Series Industrial Gearbox Overview

    1) Modular design, can be changed according to customer requirements.

    2) The box body is made of ductile iron, which greatly improves the rigidity and shock resistance of the box.

    3) The sun gear, planetary gear, inner ring gear and spiral bevel gear in the box are treated by controlled atmosphere carburizing and quenching to obtain high-hard wear-resistant table. After heat treatment, all teeth are ground, which reduces noise and improves the whole machine. Efficiency and service life.

    4) Input mode: concentric axis input, helical gear input, bevel gear-helical gear input, bevel gear input.

    5) Output mode: internal spline type, hollow shaft shrink disc type, external spline type, solid shaft flat key.

    6) Installation form: horizontal installation, vertical installation, torque arm installation.

    7) P series products are available in 9-34 size, and the planetary transmission series has 2 and 3 levels. The speed ratio is 25-4060. Combined with WEIGAO's other series of reducers (such as R, K series) to get a larger speed ratio.

    Product Description

    0.4kW~12,934kW High Torque P Series Planetary Gearbox Reducer

    Components:

    1. Housing: Ductile Cast Iron
    2. Gearset: Planetary Gear Set (Epicyclic Gearing)
    3. Input Configurations:
    Integrated with Electric Motors (AC Motors, Hydraulic Motors, Geared Motors)
    IEC-normalized Motor Flange & Motor Adaptor
    Keyed Solid Shaft Input
    4. Output Configurations:
    Keyed Solid Shaft Output

    Involute Splined Solid Shaft Output (GB or DIN Standard)

    Involute Splined Hollow Shaft Output (GB or DIN Standard)
    Hollow Shaft Output with Shrink Disk
    5. Optional Accessories:
    Gear Unit Base for Horizontal Mounted
    Torque Arm, Torque Shaft Support
    Motor Mounting Bracket
    Dip Lubrication Compensation Oil Tank
    Forced Lubrication Oil Pump
    Cooling Fan, Auxiliary Cooling Devices


    Models:

    P2N – 2 Stage Planetary Gear Set, Coaxial
    P2L – 2 Stage Planetary Gear Set Integrated with Spiral Bevel Gear Pair, Right Angle
    P2S – 2 Stage Planetary Gear Set Integrated with Helical Gear Pair, Parallel Shaft
    P2K – 2 Stage Planetary Gear Set Integrated with Helical Gear Pair & Bevel Gear Pair, Right Angle
    P3N – 3 Stage Planetary Gear Set, Coaxial
    P3S – 3 Stage Planetary Gear Set Integrated with Helical Gear Pair, Parallel Shaft
    P3K – 3 Stage Planetary Gear Set Integrated with Helical Gear Pair & Bevel Gear Pair, Right Angle
    Frame Sizes: 9, 10, 11, ... 34, 35, 36 (exclude 15)

    Features:

    1. AOKMAN® P series planetary gear units/(epicyclic gearboxes) have various options from 7 types and 27 frame sizes, can ensure up to 2600kN.m torque and 4,000:1 ratio

    2. High efficiency, high output torque, suitable for heavy duty working conditions and applications


    3. High reliability, low noise
    4. Highly modular design
    5. Optional accessories


    6. Easily combined with other gear units, such as helical, worm, bevel or helical-bevel gear units

    Gearbox Parameters
    Types
    Ratio
    Types
    Ratio
    P2N (2 Stage)
    25, 28, 31.5, 35.5, 40
    P3N (3 Stage)
    140, 160, 180, 200, 225, 250, 280
    P2L (2 Stage)
    31.5, 35.5, 40, 45, 50, 56, 63, 71, 80, 90, 100
    -
    -
    P2S (2 Stage)
    45, 50, 56, 63, 71, 80, 90, 100, 112, 125
    P3S (3 Stage)
    280, 315, 355, 400, 450, 500, 560, 630, 710, 800, 900
    P2K (2 Stage)
    112, 125, 140, 160, 180, 200, 225, 250, 280, 320, 360, 400, 450, 500, 560
    P3K (3 Stage)
    560, 630, 710, 800, 900, 1000, 1120, 1250, 1400, 1600, 1800, 2000, 2240, 2500, 2800, 3150, 3550, 4000



    Technical data
    Building materials Cast iron / ductile iron
    Shell hardness HBS190-240
    Gear material 20CrMnTi alloy steel
    Gear surface hardness HRC58 * ~ 62.
    Gear core hardness HRC33 ~ 40
    Input / output shaft material 42CrMo alloy steel
    Input / output shaft hardness HRC25 ~ 30
    Gear machining accuracy Precision grinding, level 6 ~ 5
    lubricating oil GB L-CKC220-460, shell 0mala220-460
    Heat treatment Tempering, carburizing, quenching, etc.
    effectiveness 94% ~ 96% (depending on the transmission stage)
    Noise (maximum) 60 ~ 68dB
    Temperature rise (MAX) 40 ° C
    Temperature rise (Oi) (maximum) 50 ° C
    vibration ≤20um
    Recoil ≤20Arcmin,
    Bearing brand Chinese brand bearings, HRB / LYC / ZWZ / C & U. Or other brand requirements,
    Oil seal brand NAK-requires Taiwan or other brands



    01-P-series-model-expressing-example.pdf
    02-P-series-type-selection-example.pdf
    BOOK.pngElectronic Catalog BOOK5.pngPDF Catalog
    P Series gear box price USD.pdf USD account information.pdf


    P series reducer has the following models:

    P2N9  P2N10  P2N11  P2N12  P2N13  P2N14  P2N16  P2N17  P2N18  P2N19  P2N20  P2N21  P2N22  P2N23  P2N24  P2N25  P2N26  P2N27  P2N28  P2N29  P2N30  P2N31  P2N32  P2N33  P2N34
    P2S9  P2S10  P2S11  P2S12  P2S13  P2S14  P2S16  P2S17  P2S18  P2S19  P2S20  P2S21  P2S22  P2S23  P2S24  P2S25  P2S26  P2S27  P2S28  P2S29  P2S30  P2S31  P2S32  P2S33  P2S34
    P3N9  P3N10  P3N11  P3N12  P3N13  P3N14  P3N16  P3N17  P3N18  P3N19  P3N20  P3N21  P3N22  P3N23  P3N24  P3N25  P3N26  P3N27  P3N28  P3N29  P3N30  P3N31  P3N32  P3N33  P3N34
    P3S9  P3S10  P3S11  P3S12  P3S13  P3S14  P3S16  P3S17  P3S18  P3S19  P3S20  P3S21  P3S22  P3S23  P3S24  P3S25  P3S26  P3S27  P3S28  P3S29  P3S30  P3S31  P3S32  P3S33  P3S34
    P2L9  P2L10  P2L11  P2L12  P2L13  P2L14  P2L16  P2L17  P2L18  P2L19  P2L20  P2L21  P2L22  P2L23  P2L24  P2L25  P2L26  P2L27  P2L28  P2L29  P2L30  P2L31  P2L32  P2L33  P2L34
    P2K9  P2K10  P2K11  P2K12  P2K13  P2K14  P2K16  P2K17  P2K18  P2K19  P2K20
    P3K9  P3K10  P3K11  P3K12  P3K13  P3K14  P3K16  P3K17  P3K18  P3K19  P3K20  P3K21  P3K22  P3K23  P3K24  P3K25  P3K26  P3K27  P3K28  P3K29  P3K30  P3K31  P3K32  P3K33  P3K34
