P series planetary gear reducerP series planetary gear reducerP series planetary gear reducerP series planetary gear reducer

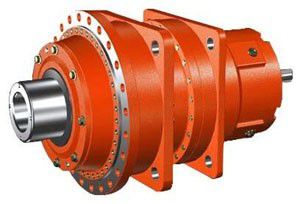

P series planetary gear reducer

  • Category:Old website product data
  • Inquiry Send Email
    Description

    1. P series planetary gear reducer adopts modular design and can be changed according to customer requirements.

        2. The reducer adopts involute planetary gear transmission, which makes reasonable use of internal and external meshing and power splitting.

        3. The gears are all carburized and quenched to obtain a high-hard wear-resistant surface. After the gears are heat-treated, all the teeth are ground, which reduces the noise and improves the efficiency and service life of the whole machine.

        4. The gear reducer has the characteristics of light weight, small volume, large transmission ratio range, high efficiency, stable operation, low noise and strong adaptability. Reducer is widely used in metallurgy, mining, lifting and transportation, power, energy, building and building materials, light industry, transportation and other industrial sectors.

    Performance characteristics:

        1. P series planetary gear reducer adopts involute planetary gear transmission, which makes reasonable use of internal and external meshing and power splitting. Therefore, it has the characteristics of light weight, small volume, large transmission ratio range, high efficiency, stable operation, low noise and strong adaptability.

        2. The box body is made of ductile iron, which greatly improves the rigidity and shock resistance of the box.

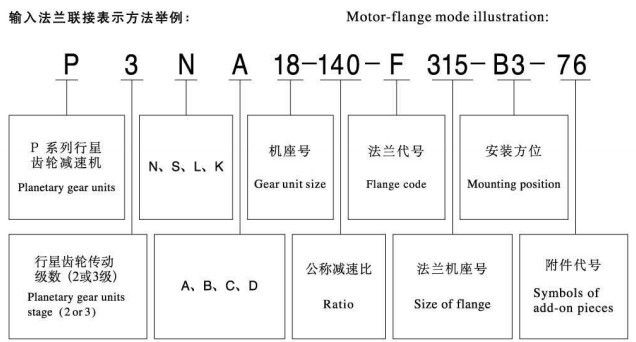

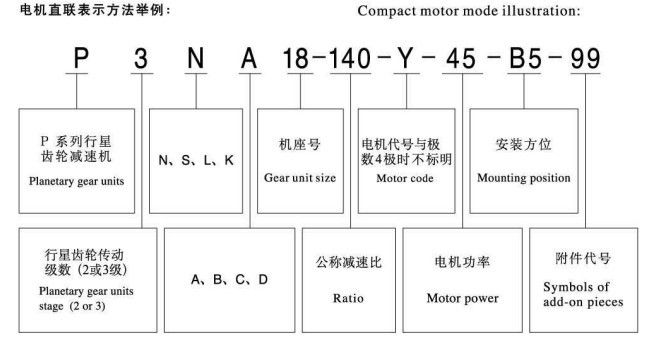

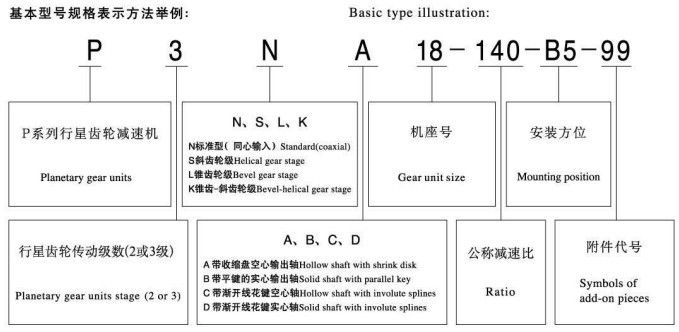

        3. Input mode: concentric axis input, helical gear input, bevel gear-helical gear input, bevel gear input.

        4. Output mode: internal spline type, hollow shaft shrinking disc type, external spline type, solid shaft flat key.

        5, installation form: horizontal installation, vertical installation, torque arm installation.

        6, using modular design, can be changed according to customer requirements.

        7, and R series, K series combination can get a larger speed ratio.

    Technical Parameters:

        Speed ratio range: basic type 25~4000 Torque range: 2.6~900 kNm Power range: 22~1920 kW
