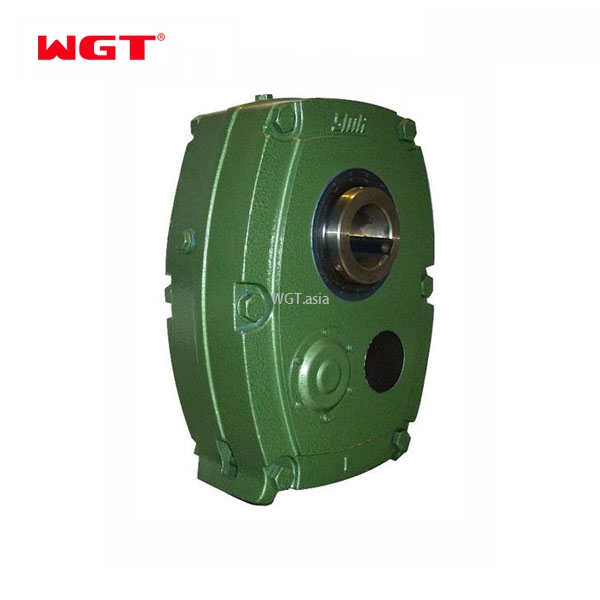

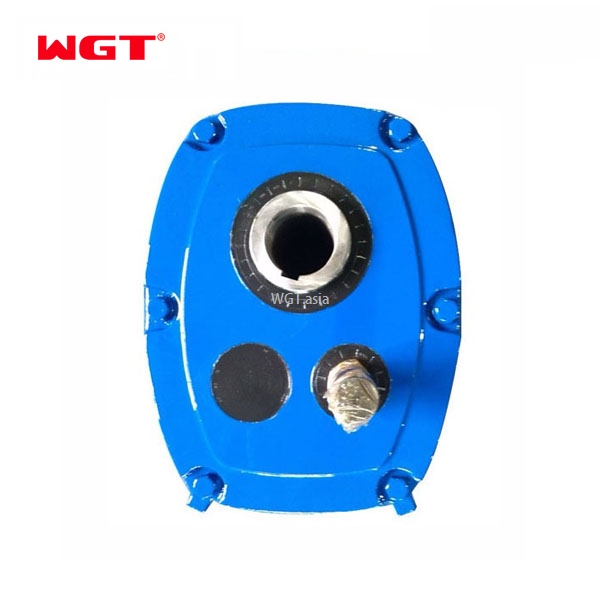

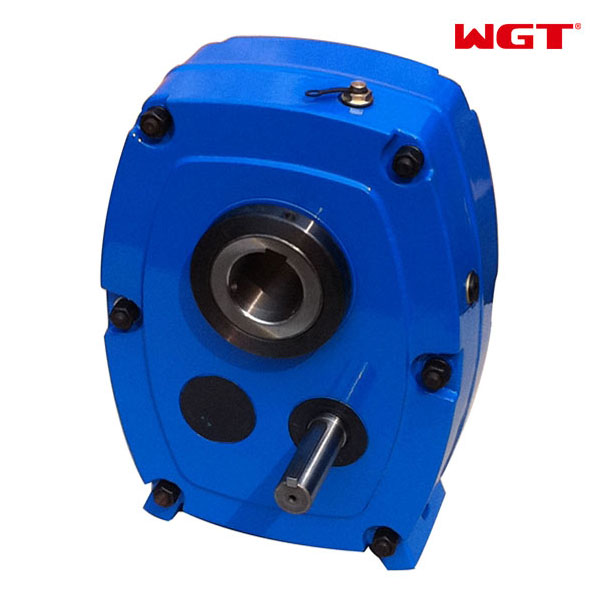

SMR E Φ55 ratio 20:1 reduction gearbox shaft mounted reducer belt reducer single stage

Overview  Quick Details

Applicable Industries:Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

Gearing Arrangement:Helical

Output Torque:256-7449N.m

Input Speed:1400rpm

Output Speed:100~400RPM

Place of Origin:Zhejiang, China

Brand Name:WGT

Color:Blue / Grey / Customer requirement

ratio:5:1,13:1

out speed:100-400

input shaft keyway:6*3.5*59

Packaging & Delivery

Selling Units:Single item

Single package size: 20X20X42 cm

Single gross weight:55.000 kg

Package Type:One set in one wooden case,then big wooden case for many small wooden cases.

Lead Time :

Quantity(Sets)1 - 10>10

Conveyor & Material Handling

Mining & Quarry

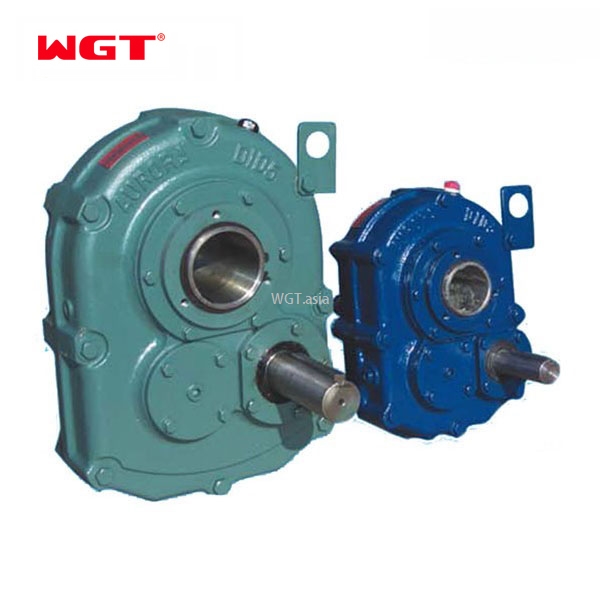

SMR Shafted mounted gearbox for conveyer systems

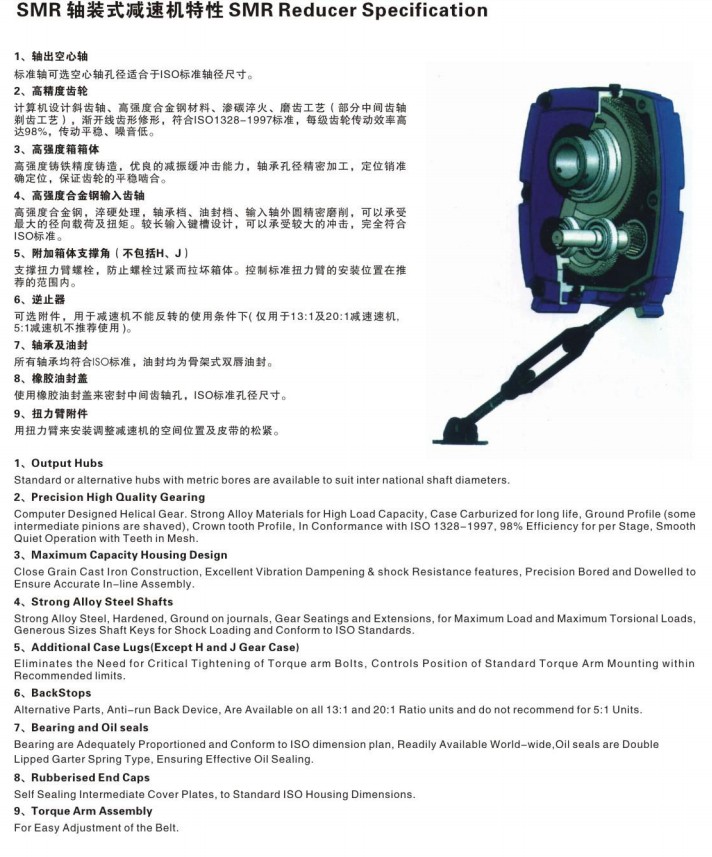

1) All gears are heat treated and fixed to achieve low noise and high output

2) Mounting dimensions are interchangeable with Fenner
