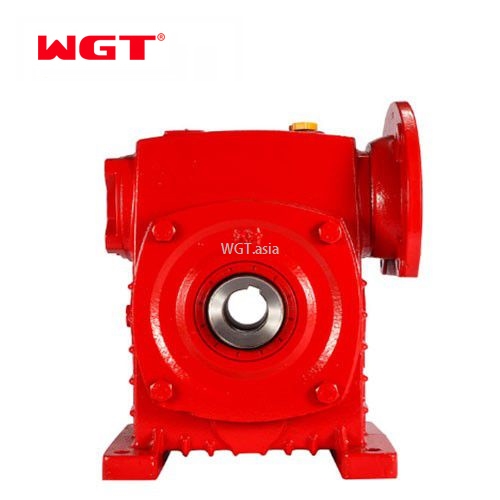

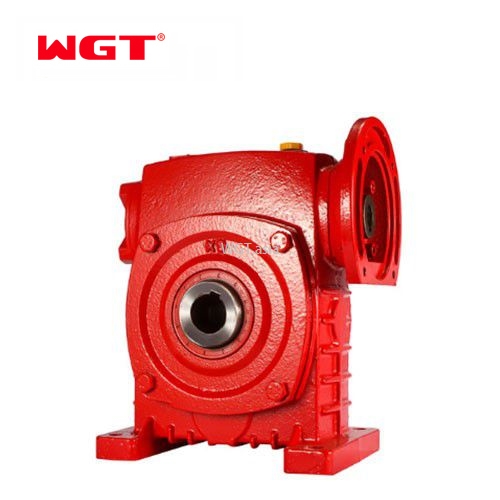

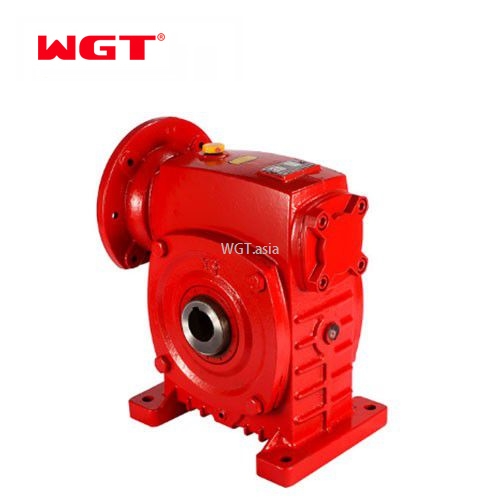

WPDKS40~250 worm gear reducer gear reducer
  1. WPDKS40~250 worm gear reducer gear reducer
  2. WPDKS40~250 worm gear reducer gear reducer
  3. WPDKS40~250 worm gear reducer gear reducer
  4. WPDKS40~250 worm gear reducer gear reducer

WPDKS40~250 worm gear reducer gear reducer

Product Item:WPDKS-worm-gear-reducer-gear-reducer

  • FOB Reference price:$31~$951
  • Minimum order quantity:10Piece
  • Customized logo:50Piece
  • Payment method:T/T
  • Supply capacity:30day(3000Piece)
  • Delivery time:3 day (1 - 100 Piece)
  • Packing:Standard export plywood case
  • Port:NINGBO/SHANGHAI PORT
  • Warranty:one year
  • Brand Name:WGT
  • Place of Origin:Zhejiang, China
  • View online Catalog
  • Category:WP Single Reducer Ratio(1/10-1/60)
  • worm gear  , WP
    Inquiry Email Attachment
    Description
    Guide
    Model

    woruisen WpWA worm gear speed reducer reduction box gearbox for sale

    WP series reducer, the worm is made of 45# high quality steel after heat treatment, the worm wheel is cast with tin bronze, the wear-resisting performance is good, especially on the bearing capacity is more obvious, mainly applicable to plastic, metallurgy, beverage, mine, lifting transportation, chemical construction and other mechanical equipment speed reduction drive.BOOK.pngElectronic Catalog BOOK5.pngPDF Catalog


    A.Features:

    1. Stable transmission, low vibration, impact and noise, large reduction ratio, wide versatility and suitable for use with various mechanical equipment.

    2. Large transmission ratio can be obtained by single-stage transmission, with compact structure. Most reducers have good self-locking property, and can save the brake device for mechanical equipment with brake requirements.

    3. The meshing friction loss between worm screw teeth and worm gear surface is relatively large, so the transmission efficiency is lower than that of gear, and it is easy to be heated and the temperature is higher.

    4. Higher requirements for lubrication and cooling.

    5. Good interfitting. The worm and worm are manufactured in accordance with national standards.

    B.Operating conditions:

    1. The speed of worm reducer should not exceed 1500r/min.,

    2.working environment temperature for -40 ℃ to + 40 ℃, when working environment temperature is lower than 0 ℃, lubricating oil must be heated before starting to more than 0 ℃, when working environment temperature is higher than 40 ℃, the cooling measures must be taken.

    3. The feeding shaft of the worm gear reducer can rotate positively or negatively.

    C.Notice:

    1. The worm gear shaft must not be used as input shaft.

    2. The machine does not pump oil at the factory. Sufficient mechanical oil must be added before operation.

    3. The supporting motor (i.e. power) shall not exceed the value specified in the sign.

    4. If the user wants to change the direction of entering the shaft, remove the lower end cover of the shaft, take out the worm shaft and adjust 180.Load it.Press install not hard knock, can slowly drive the two shafts, make it mesh.

    Technical data
    Types of: WP gearbox
    specification: WP 40-250
    Speed ratio: 1: 10,15,20,25,30,40,50,60,200,300,400,500,600,800,900,1200,1 500,1800,2400,2500,3000,3600
    colour: Blue / silver or according to customer requirements



    material:

    Housing: cast iron casting

    Worm gear-copper-10-3 #

    Carburized and quenched Worm-20CrMn Ti, the surface harness strength is 56-62HRC

    Shaft chrome steel 45 #

    filler: Carton and wooden box
    Bearing: C & U Bearing
    seal: NAK SKF
    Warranty: One year
    input power. 0.06KW, 0. 09KW, 1.1KW, 1 5KW 2.2KW, 3KW, 4KW, 5 5KW, 7 5KW
    use: Industrial machinery: food, ceramics, chemical packaging, dyeing, carpentry, glass.
    IEC flange: 56B14, 63B14, 63B5, 63B5, 71B14, 80B14, etc.






    PFor the full range of models, specifications, speed ratios, prices, etc. of WP series products, please click here to view


    000-WP-PRODUCTS-GUIDE.pdf 001-WP-REDUCER-SELECTION-METHODS.pdf
    01-WP-SINGLE-SPEED-REDUCER.pdf

    BOOK.pngElectronic Catalog BOOK5.pngPDF Catalog
    WP Series Price USD.pdf USD account information.pdf

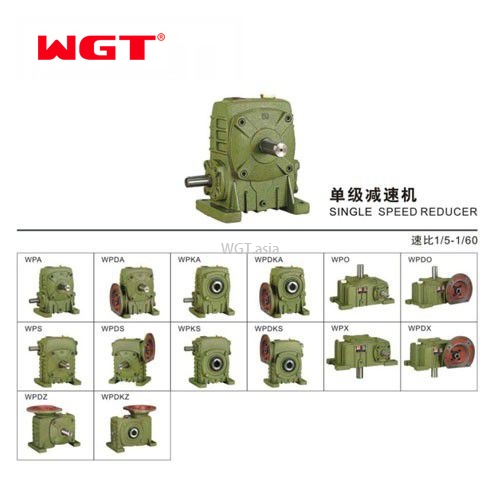

    WP Single Reducer Ratio has the following models:
    WPA40  WPA50  WPA60  WPA70  WPA80  WPA100  WPA120  WPA135  WPA147  WPA155  WPA175  WPA200  WPA250
    WPDA50  WPDA60  WPDA70  WPDA80  WPDA100  WPDA120  WPDA135  WPDA147  WPDA155  WPDA175  WPDA200  WPDA250
    WPKA40  WPKA50  WPKA60  WPKA70  WPKA80  WPKA100  WPKA120  WPKA135  WPKA155  WPKA175  WPKA200  WPKA250
    WPDKA40  WPDKA50  WPDKA60  WPDKA70  WPDKA80  WPDKA100  WPDKA120  WPDKA135  WPDKA155  WPDKA175
    WPO40  WPO50  WPO60  WPO70  WPO80  WPO100  WPO120  WPO135  WPO147  WPO155  WPO175  WPO200  WPO250
    WPDO50  WPDO60  WPDO70  WPDO80  WPDO100  WPDO120  WPDO135  WPDO147  WPDO155  WPDO175  WPDO200  WPDO250
    WPS40  WPS50  WPS60  WPS70  WPS80  WPS100  WPS120  WPS135  WPS147  WPS155  WPS175  WPS200  WPS250
    WPDS50  WPDS60  WPDS70  WPDS80  WPDS100  WPDS120  WPDS135  WPDS147  WPDS155  WPDS175  WPDS200  WPDS250
    WPKS40  WPKS50  WPKS60  WPKS70  WPKS80  WPKS100  WPKS120  WPKS135  WPKS155  WPKS175  WPKS200  WPKS250
    WPDKS50  WPDKS60  WPDKS70  WPDKS80  WPDKS100  WPDKS120  WPDKS135  WPDKS155  WPDKS175
    WPX40  WPX50  WPX60  WPX70  WPX80  WPX100  WPX120  WPX135  WPX147  WPX155  WPX175  WPX200  WPX250
    WPDX50  WPDX60  WPDX70  WPDX80  WPDX100  WPDX120  WPDX135  WPDX147  WPDX155  WPDX175  WPDX200  WPDX250
    WPDZ50  WPDZ60  WPDZ70  WPDZ80  WPDZ100  WPDZ120  WPDZ135
    WPDKZ50  WPDKZ60  WPDKZ70  WPDKZ80  WPDKZ100  WPDKZ120  WPDKZ135
