woruisen WpWA worm gear speed reducer reduction box gearbox for sale
WP series reducer, the worm is made of 45# high quality steel after heat treatment, the worm wheel is cast with tin bronze, the wear-resisting performance is good, especially on the bearing capacity is more obvious, mainly applicable to plastic, metallurgy, beverage, mine, lifting transportation, chemical construction and other mechanical equipment speed reduction drive.Electronic Catalog PDF Catalog
1. Stable transmission, low vibration, impact and noise, large reduction ratio, wide versatility and suitable for use with various mechanical equipment.
2. Large transmission ratio can be obtained by single-stage transmission, with compact structure. Most reducers have good self-locking property, and can save the brake device for mechanical equipment with brake requirements.
3. The meshing friction loss between worm screw teeth and worm gear surface is relatively large, so the transmission efficiency is lower than that of gear, and it is easy to be heated and the temperature is higher.
4. Higher requirements for lubrication and cooling.
5. Good interfitting. The worm and worm are manufactured in accordance with national standards.
1. The speed of worm reducer should not exceed 1500r/min.,
2.working environment temperature for -40 ℃ to + 40 ℃, when working environment temperature is lower than 0 ℃, lubricating oil must be heated before starting to more than 0 ℃, when working environment temperature is higher than 40 ℃, the cooling measures must be taken.
3. The feeding shaft of the worm gear reducer can rotate positively or negatively.
1. The worm gear shaft must not be used as input shaft.
2. The machine does not pump oil at the factory. Sufficient mechanical oil must be added before operation.
3. The supporting motor (i.e. power) shall not exceed the value specified in the sign.
4. If the user wants to change the direction of entering the shaft, remove the lower end cover of the shaft, take out the worm shaft and adjust 180.Load it.Press install not hard knock, can slowly drive the two shafts, make it mesh.
|Types of:||WP gearbox|
|Speed ratio:||1: 10,15,20,25,30,40,50,60,200,300,400,500,600,800,900,1200,1 500,1800,2400,2500,3000,3600|
|colour:||Blue / silver or according to customer requirements|
Housing: cast iron casting
Worm gear-copper-10-3 #
Carburized and quenched Worm-20CrMn Ti, the surface harness strength is 56-62HRC
Shaft chrome steel 45 #
|filler:||Carton and wooden box|
|Bearing:||C & U Bearing|
|input power.||0.06KW, 0. 09KW, 1.1KW, 1 5KW 2.2KW, 3KW, 4KW, 5 5KW, 7 5KW|
|use:||Industrial machinery: food, ceramics, chemical packaging, dyeing, carpentry, glass.|
56B14, 63B14, 63B5, 63B5, 71B14, 80B14, etc.
PFor the full range of models, specifications, speed ratios, prices, etc. of WP series products, please click here to view
|WP Series Price USD.pdf||USD account information.pdf|

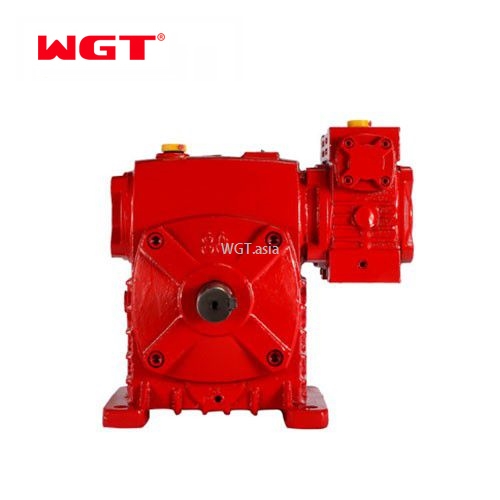

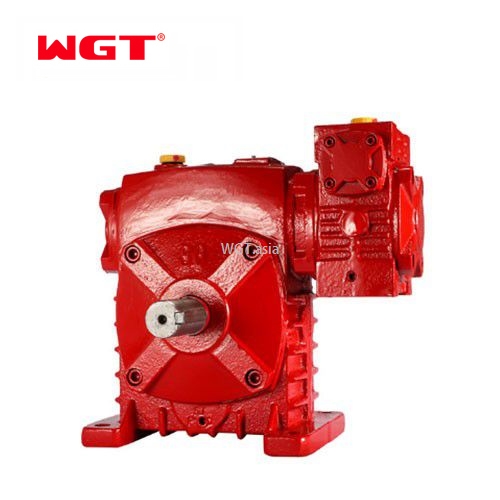

WPE Double Reducer Ratio has the following models:
WPEA40-70 WPEA50-80 WPEA60-100 WPEA70-120 WPEA80-135 WPEA80-147 WPEA100-155 WPEA120-175 WPEA135-200 WPEA155-250
WPEDA40-70 WPEDA50-80 WPEDA60-100 WPEDA70-120 WPEDA80-135 WPEDA80-147 WPEDA100-155 WPEDA120-175 WPEDA135-200 WPEDA155-250
WPEKA40-70 WPEKA50-80 WPEKA60-100 WPEKA70-120 WPEKA80-135 WPEKA100-155 WPEKA120-175 WPEKA135-200 WPEKA155-250
WPEDKA40-70 WPEDKA50-80 WPEDKA60-100 WPEDKA70-120 WPEDKA80-135 WPEDKA100-155 WPEDKA120-175 WPEDKA135-200 WPEDKA155-250
WPEO40-70 WPEO50-80 WPEO60-100 WPEO70-120 WPEO80-135 WPEO80-147 WPEO100-155 WPEO120-175 WPEO135-200 WPEO155-250
WPEDO40-70 WPEDO50-80 WPEDO60-100 WPEDO70-120 WPEDO80-135 WPEDO80-147 WPEDO100-155 WPEDO120-175 WPEDO135-200 WPEDO155-250
WPES40-70 WPES50-80 WPES60-100 WPES70-120 WPES80-135 WPES80-147 WPES100-155 WPES120-175 WPES135-200 WPES155-250
WPEDS40-70 WPEDS50-80 WPEDS60-100 WPEDS70-120 WPEDS80-135 WPEDS80-147 WPEDS100-155 WPEDS120-175 WPEDS135-200 WPEDS155-250
WPEKS40-70 WPEKS50-80 WPEKS60-100 WPEKS70-120 WPEKS80-135 WPEKS100-155 WPEKS120-175 WPEKS135-200 WPEKS155-250
WPEDKS40-70 WPEDKS50-80 WPEDKS60-100 WPEDKS70-120 WPEDKS80-135 WPEDKS100-155 WPEDKS120-175 WPEDKS135-200 WPEDKS155-250
WPEX40-70 WPEX50-80 WPEX60-100 WPEX70-120 WPEX80-135 WPEX80-147 WPEX100-155 WPEX120-175 WPEX135-200 WPEX155-250
WPEDX40-70 WPEDX50-80 WPEDX60-100 WPEDX70-120 WPEDX80-135 WPEDX80-147 WPEDX100-155 WPEDX120-175 WPEDX135-200 WPEDX155-250
WPWE40-70 WPWE50-80 WPWE60-100 WPWE70-120 WPWE80-135 WPWE100-155 WPWE120-175 WPWE135-200 WPWE155-250
WPWED40-70 WPWED50-80 WPWED60-100 WPWED70-120 WPWED80-135 WPWED100-155 WPWED120-175 WPWED135-200 WPWED155-250
WPWEKO40-70 WPWEKO50-80 WPWEKO60-100 WPWEKO70-120 WPWEKO80-135 WPWEKO100-155 WPWEKO120-175 WPWEKO135-200 WPWEKO155-250
WPWEDKO40-70 WPWEDKO50-80 WPWEDKO60-100 WPWEDKO70-120 WPWEDKO80-135 WPWEDKO100-155 WPWEDKO120-175 WPWEDKO135-200 WPWEDKO155-250
WPEEA40-70 WPEEA50-80 WPEEA60-100 WPEEA70-120 WPEEA80-135 WPEEA80-147 WPEEA100-155 WPEEA120-175 WPEEA135-200 WPEEA155-250
WPEEDO40-70 WPEEDO50-80 WPEEDO60-100 WPEEDO70-120 WPEEDO80-135 WPEEDO80-147 WPEEDO100-155 WPEEDO120-175 WPEEDO135-200 WPEEDO155-250
WPWEK40-70 WPWEK50-80 WPWEK60-100 WPWEK70-120 WPWEK80-135 WPWEK100-155 WPWEK120-175 WPWEK135-200 WPWEK155-250
WPWEDK40-70 WPWEDK50-80 WPWEDK60-100 WPWEDK70-120 WPWEDK80-135 WPWEDK100-155 WPWEDK120-175 WPWEDK135-200 WPWEDK155-250
