  5. WPWD40~250 worm gear reducer gear reduce
WPWD40~250 worm gear reducer gear reducer  WPWD40~250 worm gear reducer gear reducer  WPWD40~250 worm gear reducer gear reducer  WPWD40~250 worm gear reducer gear reducer

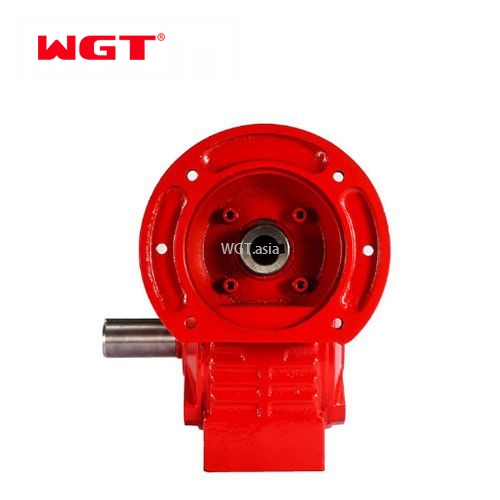

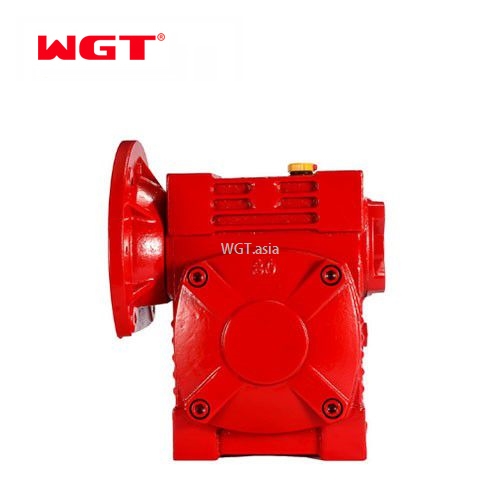

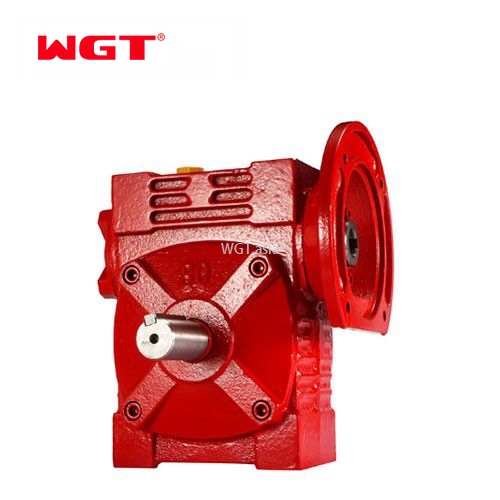

WPWD40~250 worm gear reducer gear reducer

  • Product Item:WPWD-worm-gear-reducer-gear-reducer
  • FOB Reference price:$30~$890
  • Minimum order quantity:10Piece
  • Customized logo:50Piece
  • Payment method:T/T
  • Supply capacity:30day(3000Piece)
  • Delivery time:3 day (1 - 100 Piece)
  • Packing:Standard export plywood case
  • Port:NINGBO/SHANGHAI PORT
  • Warranty:one year
  • Brand Name:WGT
  • Place of Origin:Zhejiang, China
  • View online Catalog
  • Category:WPW Universal Reducer Ratio(1/10-1/60)
  • worm gear , WP
    Inquiry Send Email PDF
    Description
    Guide
    Model

    woruisen WpWA worm gear speed reducer reduction box gearbox for sale

    WP series reducer, the worm is made of 45# high quality steel after heat treatment, the worm wheel is cast with tin bronze, the wear-resisting performance is good, especially on the bearing capacity is more obvious, mainly applicable to plastic, metallurgy, beverage, mine, lifting transportation, chemical construction and other mechanical equipment speed reduction drive.BOOK.pngElectronic Catalog BOOK5.pngPDF Catalog


    A.Features:

    1. Stable transmission, low vibration, impact and noise, large reduction ratio, wide versatility and suitable for use with various mechanical equipment.

    2. Large transmission ratio can be obtained by single-stage transmission, with compact structure. Most reducers have good self-locking property, and can save the brake device for mechanical equipment with brake requirements.

    3. The meshing friction loss between worm screw teeth and worm gear surface is relatively large, so the transmission efficiency is lower than that of gear, and it is easy to be heated and the temperature is higher.

    4. Higher requirements for lubrication and cooling.

    5. Good interfitting. The worm and worm are manufactured in accordance with national standards.

    B.Operating conditions:

    1. The speed of worm reducer should not exceed 1500r/min.,

    2.working environment temperature for -40 ℃ to + 40 ℃, when working environment temperature is lower than 0 ℃, lubricating oil must be heated before starting to more than 0 ℃, when working environment temperature is higher than 40 ℃, the cooling measures must be taken.

    3. The feeding shaft of the worm gear reducer can rotate positively or negatively.

    C.Notice:

    1. The worm gear shaft must not be used as input shaft.

    2. The machine does not pump oil at the factory. Sufficient mechanical oil must be added before operation.

    3. The supporting motor (i.e. power) shall not exceed the value specified in the sign.

    4. If the user wants to change the direction of entering the shaft, remove the lower end cover of the shaft, take out the worm shaft and adjust 180.Load it.Press install not hard knock, can slowly drive the two shafts, make it mesh.

    Technical data
    Types of: WP gearbox
    specification: WP 40-250
    Speed ratio: 1: 10,15,20,25,30,40,50,60,200,300,400,500,600,800,900,1200,1 500,1800,2400,2500,3000,3600
    colour: Blue / silver or according to customer requirements



    material:

    Housing: cast iron casting

    Worm gear-copper-10-3 #

    Carburized and quenched Worm-20CrMn Ti, the surface harness strength is 56-62HRC

    Shaft chrome steel 45 #

    filler: Carton and wooden box
    Bearing: C & U Bearing
    seal: NAK SKF
    Warranty: One year
    input power. 0.06KW, 0. 09KW, 1.1KW, 1 5KW 2.2KW, 3KW, 4KW, 5 5KW, 7 5KW
    use: Industrial machinery: food, ceramics, chemical packaging, dyeing, carpentry, glass.
    IEC flange: 56B14, 63B14, 63B5, 63B5, 71B14, 80B14, etc.






    PFor the full range of models, specifications, speed ratios, prices, etc. of WP series products, please click here to view


    000-WP-PRODUCTS-GUIDE.pdf 001-WP-REDUCER-SELECTION-METHODS.pdf
    02-WP-UNIVERSAL-SPEED-REDUCER.pdf
    BOOK.pngElectronic Catalog BOOK5.pngPDF Catalog
    WP Series Price USD.pdf USD account information.pdf

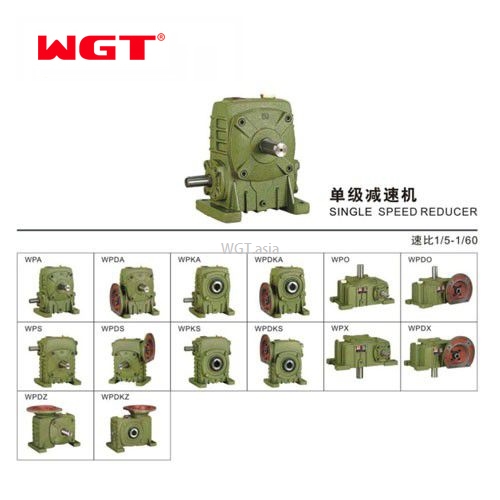

    WPW Universal Reducer Ratio has the following models:
    WPW40  WPW50  WPW60  WPW70  WPW80  WPW100  WPW120  WPW135  WPW155  WPW175  WPW200  WPW250
    WPWD40  WPWD50  WPWD60  WPWD70  WPWD80  WPWD100  WPWD120  WPWD135  WPWD155  WPWD175  WPWD200  WPWD250
    WPWK40  WPWK50  WPWK60  WPWK70  WPWK80  WPWK100  WPWK120  WPWK135  WPWK155  WPWK175  WPWK200  WPWK250
    WPWDK40  WPWDK50  WPWDK60  WPWDK70  WPWDK80  WPWDK100  WPWDK120  WPWDK135  WPWDK155  WPWDK175  WPWDK200  WPWDK250
    WPWO40  WPWO50  WPWO60  WPWO70  WPWO80  WPWO100  WPWO120  WPWO135  WPWO155  WPWO175  WPWO200  WPWO250
    WPWDO40  WPWDO50  WPWDO60  WPWDO70  WPWDO80  WPWDO100  WPWDO120  WPWDO135  WPWDO155  WPWDO175  WPWDO200  WPWDO250
    WPWA40  WPWA50  WPWA60  WPWA70  WPWA80  WPWA100  WPWA120  WPWA135  WPWA155  WPWA175  WPWA200  WPWA250
    WPWDA40  WPWDA50  WPWDA60  WPWDA70  WPWDA80  WPWDA100  WPWDA120  WPWDA135  WPWDA155  WPWDA175  WPWDA200  WPWDA250
    WPWKA40  WPWKA50  WPWKA60  WPWKA70  WPWKA80  WPWKA100  WPWKA120  WPWKA135  WPWKA155  WPWKA175  WPWKA200  WPWKA250
    WPWDKA40  WPWDKA50  WPWDKA60  WPWDKA70  WPWDKA80  WPWDKA100  WPWDKA120  WPWDKA135  WPWDKA155  WPWDKA175  WPWDKA200  WPWDKA250
    WPWX40  WPWX50  WPWX60  WPWX70  WPWX80  WPWX100  WPWX120  WPWX135  WPWX155  WPWX175  WPWX200  WPWX250
    WPWDX40  WPWDX50  WPWDX60  WPWDX70  WPWDX80  WPWDX100  WPWDX120  WPWDX135  WPWDX155  WPWDX175  WPWDX200  WPWDX250
    WPWS40  WPWS50  WPWS60  WPWS70  WPWS80  WPWS100  WPWS120  WPWS135  WPWS155  WPWS175  WPWS200  WPWS250
    WPWDS40  WPWDS50  WPWDS60  WPWDS70  WPWDS80  WPWDS100  WPWDS120  WPWDS135  WPWDS155  WPWDS175  WPWDS200  WPWDS250
    WPWKS40  WPWKS50  WPWKS60  WPWKS70  WPWKS80  WPWKS100  WPWKS120  WPWKS135  WPWKS155  WPWKS175  WPWKS200  WPWKS250
    WPWDKS40  WPWDKS50  WPWDKS60  WPWDKS70  WPWDKS80  WPWDKS100  WPWDKS120  WPWDKS135  WPWDKS155  WPWDKS175  WPWDKS200  WPWDKS250
    WPWKO40  WPWKO50  WPWKO60  WPWKO70  WPWKO80  WPWKO100  WPWKO120  WPWKO135  WPWKO155  WPWKO175  WPWKO200  WPWKO250
    WPWDKO40  WPWDKO50  WPWDKO60  WPWDKO70  WPWDKO80  WPWDKO100  WPWDKO120  WPWDKO135  WPWDKO155  WPWDKO175  WPWDKO200  WPWDKO250
    WPWT40  WPWT50  WPWT60  WPWT70  WPWT80  WPWT100  WPWT120  WPWT135  WPWT155  WPWT175  WPWT200  WPWT250
    WPWDT40  WPWDT50  WPWDT60  WPWDT70  WPWDT80  WPWDT100  WPWDT120  WPWDT135  WPWDT155  WPWDT175  WPWDT200  WPWDT250
    WPWKT40  WPWKT50  WPWKT60  WPWKT70  WPWKT80  WPWKT100  WPWKT120  WPWKT135  WPWKT155  WPWKT175  WPWKT200  WPWKT250
    WPWDKT40  WPWDKT50  WPWDKT60  WPWDKT70  WPWDKT80  WPWDKT100  WPWDKT120  WPWDKT135  WPWDKT155  WPWDKT175  WPWDKT200  WPWDKT250
    WPWV40  WPWV50  WPWV60  WPWV70  WPWV80  WPWV100  WPWV120  WPWV135  WPWV155  WPWV175  WPWV200  WPWV250
    WPWDV40  WPWDV50  WPWDV60  WPWDV70  WPWDV80  WPWDV100  WPWDV120  WPWDV135  WPWDV155  WPWDV175  WPWDV200  WPWDV250
    WPWKV40  WPWKV50  WPWKV60  WPWKV70  WPWKV80  WPWKV100  WPWKV120  WPWKV135  WPWKV155  WPWKV175  WPWKV200  WPWKV250
    WPWDKV40  WPWDKV50  WPWDKV60  WPWDKV70  WPWDKV80  WPWDKV100  WPWDKV120  WPWDKV135  WPWDKV155  WPWDKV175  WPWDKV200  WPWDKV250
