XX type rotary planetary gear reducer

  • Category:Old website product data
  • Inquiry Send Email
    Description

    The reducer is small in size, light in weight, high in load carrying capacity, long in service life, stable in operation, and low in noise. It has the characteristics of power splitting and multi-tooth meshing. The maximum input power is up to 104kW. Applicable to industrial sectors such as lifting and transportation, engineering machinery, metallurgy, mining, petrochemical, construction machinery, light industrial textiles, medical equipment, instrumentation, automobiles, ships, weapons and aerospace. The new series of planetary series WGN fixed shaft transmission reducer, WN sub-mother gear transmission reducer, elastic load-carrying small-tooth difference reducer.

    I. Overview

    The planetary gear series reducer is a new type of reducer with wide versatility. The internal gear adopts 20CvMnT carburizing and grinding. The whole machine has the characteristics of small structure size, large output torque, high speed ratio, high efficiency and safe and reliable performance. This machine is mainly used for the slewing mechanism of tower cranes, and can also be used as supporting components for lifting, digging, transportation, construction and other industries.

    The scope of application is as follows:

    Input shaft speed ≤1500r/min

    Direction of rotation: positive and negative

    Institutional work level: M5

    Structure utilization level: T4

    Working environment temperature: -40 ° C ~ +45 ° C, below 0 ° C, the lubricant should be preheated before starting.

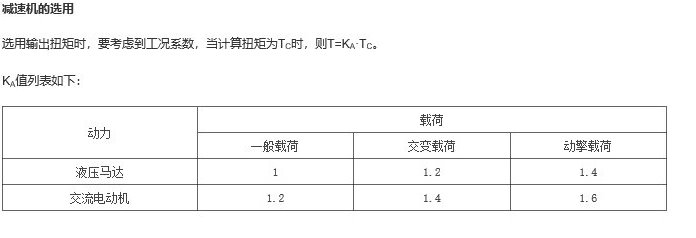

    Second, the model description

    三、传动形式简图

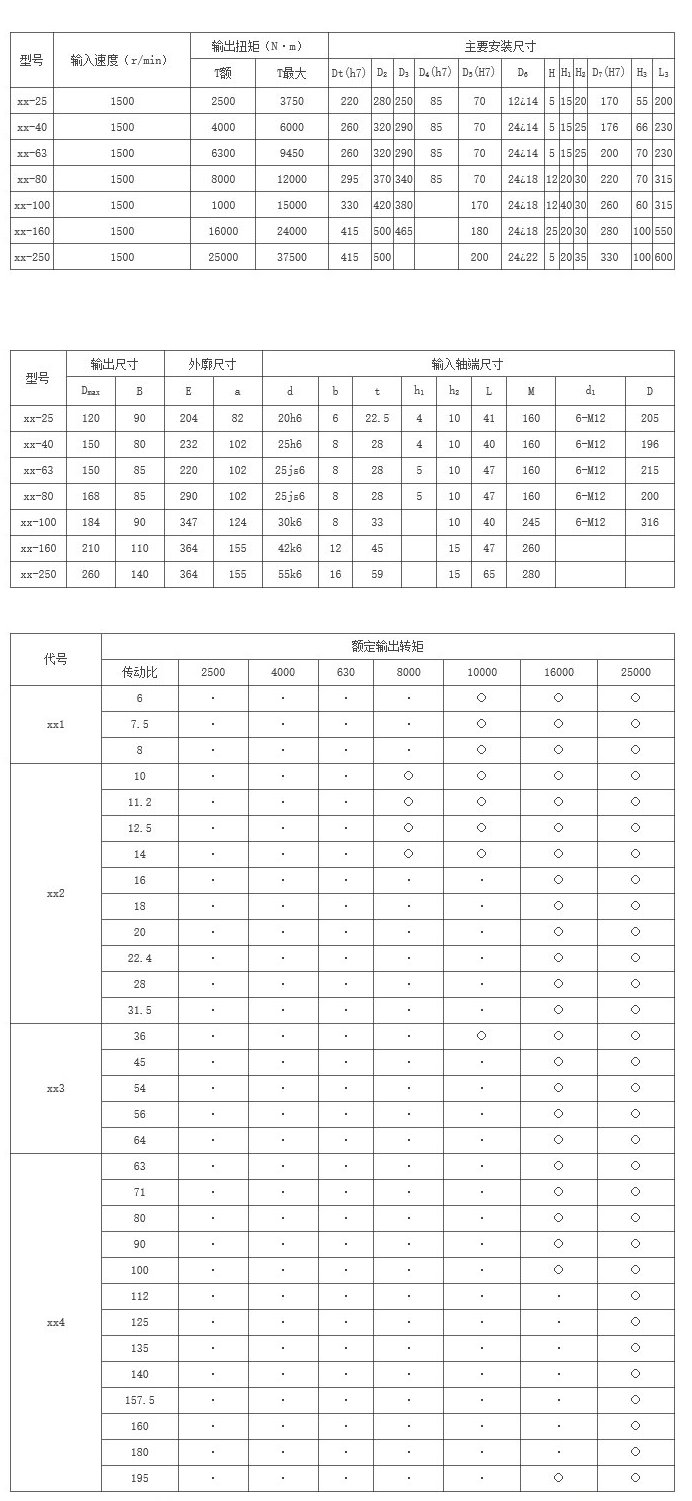

    XX型回转行星齿轮减速机外形尺寸
