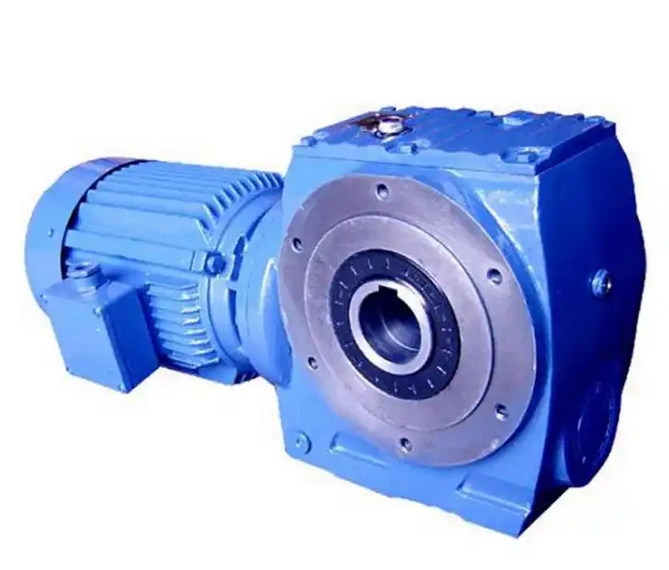

The meaning and features of the helical gear SA47-YVP0.37-4P-24.77-M1 worm gear reducer

SA47-YVP0.37-4P-24.77-M1 reducer is a common gear reducer, and the following is its related information:

Model meaning:

SA47: Refers to the type and base number of the reducer, belonging to the S series helical gear worm gear reducer. 47 is the specific base size specification.

YVP: represents the motor type as a variable frequency speed regulation motor, which can adjust the speed by changing the power supply frequency and meet the speed requirements under different working conditions.

0.37-4P: 0.37 refers to the rated power of the motor being 0.37kW, 4P represents the number of poles of the motor being 4, and the synchronous speed of the motor is usually 1500r/min (under 50Hz power supply).

24.77: is the reduction ratio of the gearbox, which is the ratio of the input shaft speed to the output shaft speed, indicating that the gearbox reduces the input speed to 1/24.77 of the original.

M1: represents the installation method, which refers to a specific installation form, such as flange installation or other specific installation structures.

characteristic:

Combination of helical gear and worm gear: Vertical output, compact structure, capable of achieving large speed ratios in a small space.

Highly modular design: It can be easily equipped with various types of electric motors or other power inputs. Combined models can form a large transmission ratio and output extremely low speeds.

High strength and small volume: The box body is made of high-strength cast iron, and the gears and gear shafts are subjected to gas carburizing, quenching, and precision grinding processes, resulting in a high load-bearing capacity per unit volume.

Low noise: The main components have been precision machined and carefully assembled and tested, resulting in low noise during operation.
