What is the basis for choosing cycloidal pinwheel reducer and planetary reducer

When choosing between a cycloidal pinwheel reducer and a planetary reducer, it is usually necessary to consider multiple factors comprehensively, including:
load characteristics

Cycloid pinwheel reducer: suitable for situations where the load is relatively small and stable. For example, in some small conveyor lines, the load is mainly small items transported, and the cycloidal pinwheel reducer can meet its power requirements and maintain good stability.

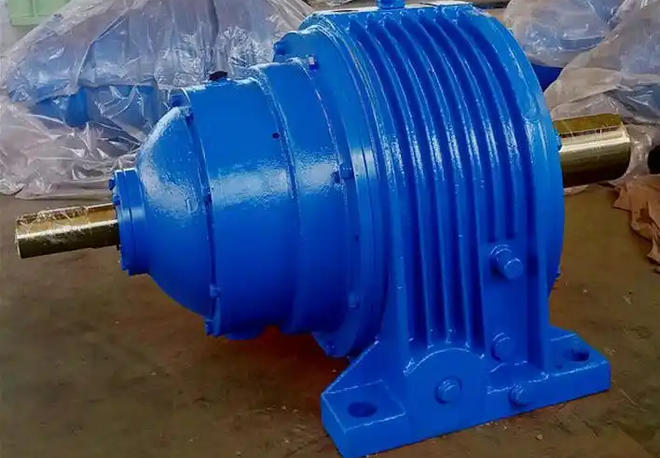

Planetary gearbox: If the load is large and has impact, such as in mining machinery, construction machinery and other fields, planetary gearboxes can better cope with such complex load conditions due to their high load-bearing capacity and impact resistance.

Transmission ratio requirements

Cycloid pinwheel reducer: When a larger transmission ratio is required, a cycloidal pinwheel reducer is a better choice. For example, in some small mixing equipment, a high reduction ratio is required to achieve low-speed and high torque rotation of the mixing blade, and a single-stage or two-stage cycloidal pinwheel reducer can meet the requirements.

Planetary gearbox: If the required transmission ratio is between 3-10, planetary gearbox is more suitable. In the indexing device of automated production lines, such a medium transmission ratio is often required, and planetary reducers can accurately achieve the indexing action.

Accuracy requirements

Cycloid pinwheel reducer: In some ordinary precision transmission scenarios that do not require extremely high precision but require a large reduction ratio, the cycloidal pinwheel reducer can meet the requirements. Like ordinary packaging machinery, the requirement for positional accuracy is not particularly strict, and the cycloidal pinwheel reducer can handle it.

Planetary reducer: For applications that require extremely high precision, such as joint transmission in industrial robots, feed systems in CNC machine tools, etc., the high precision of planetary reducer can ensure the motion accuracy and positioning accuracy of the equipment.

Efficiency requirements

Cycloid pinwheel reducer: If the equipment does not have extremely strict efficiency requirements, a transmission efficiency of over 90% for the cycloidal pinwheel reducer can be met. In some small-scale agricultural irrigation equipment, the efficiency of the cycloidal pinwheel reducer can meet the needs of irrigation operations.

Planetary gearbox: In situations where high efficiency is required, such as in the field of wind power generation, planetary gearboxes have a transmission efficiency of up to 97% -98%, which can reduce energy loss and improve power generation efficiency.

Installation space and environment

Cycloid pinwheel reducer: compact structure, small volume, suitable for environments with limited installation space. For example, in some small instrument equipment, the cycloidal pinwheel reducer can be easily installed without taking up too much space.

Planetary gearbox: If the installation space is relatively spacious and high torque output is required, planetary gearbox is a better choice. In large lifting equipment, although the space is large, strong torque is required to lift heavy objects, and planetary reducers can take advantage of their advantages.
