Planetary reducer BLD1-35-0.75KW cycloidal pinwheel reducer is easy to disassemble and install

The planetary reducer BLD1-35-0.75KW cycloidal pinwheel reducer is becoming increasingly widely used in modern industry. They not only improve the efficiency of mechanical equipment, but also enable it to work stably under heavy load and high-speed conditions. Among them, planetary reducers and cycloidal pinwheel reducers have become the first choice for many engineers and technicians. This article will provide a detailed introduction to the advantages, structure, disassembly, and installation steps of the planetary reducer BLD1-35-0.75KW cycloidal pinwheel reducer, and share some tips for use to help users better master this product.
1. Basic concepts of planetary reducer and cycloidal pinwheel reducer
1.1 Planetary reducer
Planetary reducer is a special type of deceleration equipment, mainly composed of sun gear, planetary gear, and ring gear. The sun gear is responsible for inputting torque, while the planetary gear rotates around the sun gear on its orbit and ultimately transmits force to the ring gear. The advantage of this structure is that it can achieve a higher reduction ratio with a smaller volume, while also having higher load capacity and lower noise.
1.2 Cycloid pinwheel reducer
The cycloidal pinwheel reducer achieves deceleration through the interlocking of the cycloidal gear and pinwheel. Its working principle is relatively simple, reducing the speed of the motor through a combination of cycloidal and pinwheel, thereby achieving high torque output. Compared with traditional reducers, the advantages of cycloidal pinwheel reducers are their small size, light weight, ability to withstand large loads, and high efficiency.
2. Characteristics of BLD1-35-0.75KW cycloidal pinwheel reducer
2.1 Product Overview

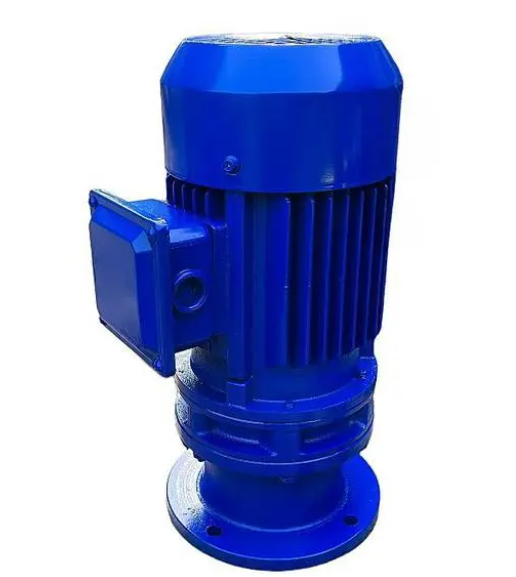

BLD1-35-0.75KW cycloidal pinwheel reducer is a high-performance product designed specifically for small and medium-sized mechanical equipment. Its input power is 0.75KW, which can effectively cope with various industrial applications. The structural design of its planetary reducer ensures reliability and durability.
2.2 Main Technical Parameters
-Input voltage: 220V/380V
-Input speed: 1500rpm/3000rpm
-Reduction ratio: Available in various ratios such as 4:1, 10:1, 20:1, etc
-Efficiency: up to 95%
-Working temperature range: -10 ℃ to+40 ℃
These parameters enable the BLD1-35 gearbox to operate efficiently in various industries.
2.3 Application Fields
Widely used in various industries such as automation equipment, packaging machinery, conveying equipment, and machine tool processing. The use of this reducer can effectively reduce the noise of equipment operation and improve overall work efficiency.
3. Structure and disassembly of gearbox
3.1 Internal Structure
The BLD1-35 cycloidal pinwheel reducer has a compact internal structure, consisting of a main shaft, cycloidal gear, pinwheel, bearings, and housing. The spindle bears the rotational force input by the motor, while the cycloidal and pinwheel serve as the core of deceleration. This simple and durable structure makes it very convenient for users to disassemble and maintain.
