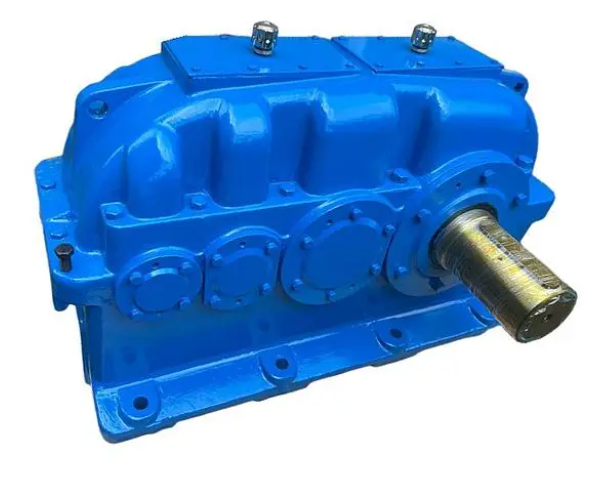

ZSY560-56-1 hard tooth surface gearbox cylindrical gear reducer ZSY500-40-2

The comprehensive analysis and application of ZSY560-56-1 and ZSY500-40-2 hard tooth surface gearboxes in modern mechanical engineering, the importance of gearbox selection in improving efficiency and reducing energy consumption is self-evident. Nowadays, ZSY series hard tooth surface gearboxes and cylindrical gear reducers have received widespread attention due to their powerful functions and excellent performance. This article will explore in detail the design characteristics, working principles, and application fields of ZSY560-56-1 hard tooth surface gearbox and ZSY500-40-2 cylindrical gear reducer, providing you with a comprehensive understanding.
1、 Structural characteristics of hard tooth surface gearbox
1.1 Advantages of Hard Tooth Surface
The gear material of the hard tooth surface gearbox undergoes heat treatment, which significantly increases the hardness of the tooth surface. Its main advantages include:
-Strong wear resistance: Hard tooth surfaces can effectively reduce the wear of gears during transmission and improve their service life.
-High load-bearing capacity: Gears with hard tooth surfaces can withstand large impact loads, making them very suitable for heavy-duty conditions.
-Smooth operation: Due to the high precision of tooth surface machining and low noise during gear meshing, the operation is very smooth.
1.2 Design of ZSY560-56-1 Hard Gear Transmission
The design of ZSY560-56-1 hard tooth surface gearbox fully considers its working requirements under heavy load and high speed. Its main structural features include:
-Efficient transmission ratio: This gearbox can achieve different reduction ratios and adapt to the needs of different loads.
-The lubrication system of the equipment: The effective lubrication system design ensures the cooling and lubrication of the gears during operation, extending the service life of the gearbox.
-Compact structure: ZSY560-56-1 has been designed with optimized structure to reduce space occupation and facilitate installation in narrow environments.
2、 Working principle of cylindrical gear reducer
2.1 Basic functions of cylindrical gears
The basic function of a cylindrical gear reducer is to convert the high-speed speed generated by a motor or other power source into low-speed, high torque output to meet the working needs of different mechanical equipment. The working principle of ZSY500-40-2 cylindrical gear reducer is relatively simple, but it is extremely effective. Its working process mainly includes:
-Connection between input and output: The input end is connected to the power source, and the output end is connected to the load.
-Gear meshing: The rotation of the input gear drives the rotation of the output gear, forming a deceleration effect and outputting more torque.
-Control of transmission ratio: By selecting different gear combinations, different reduction ratios can be achieved to meet the power output requirements of different industries and equipment.
2.2 Design and Application of ZSY500-40-2
Among numerous cylindrical gear reducers, ZSY500-40-2 is widely used in various fields due to its unique design. Its main features include:
-Multiple models: The ZSY500 series offers multiple models with flexible configurations to meet the needs of various industries.
-Efficient mechanical performance: This reducer can achieve high efficiency output under rated load, minimizing energy loss to the greatest extent possible.
