In the field of mechanical transmission, the performance and stability of the reducer, as a key component connecting the power source and the actuator, directly affect the operational efficiency and lifespan of the entire mechanical system. Today, we will delve into a widely used reducer in various industrial equipment - the copper core motor planetary cycloidal pinwheel reducer, especially its two typical forms of vertical XLD and small horizontal XWD, as well as their unique swing pin working principle, revealing its importance and application value in industrial automation.
The core advantages of copper core motors

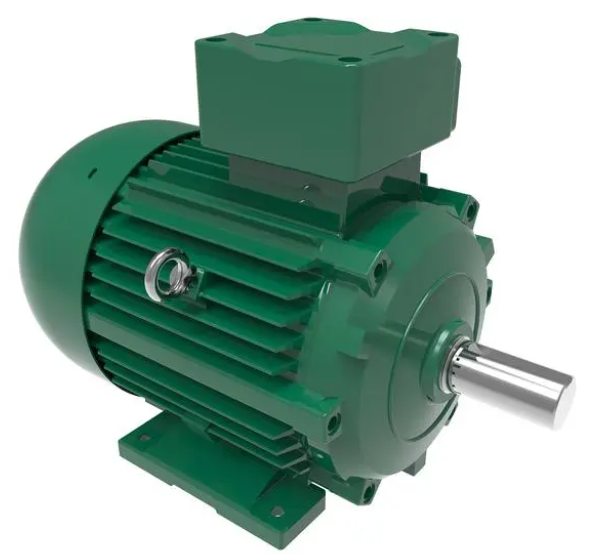

Firstly, let's start with the power source of the reducer - copper core motor. Copper core motors have become the preferred choice for many industrial applications due to their excellent conductivity, heat dissipation performance, and corrosion resistance. Compared to aluminum core motors, copper core motors have better energy conversion efficiency, effectively reducing energy loss and improving the overall energy efficiency of the system. In the application of planetary cycloidal pinwheel reducers, copper core motors can stably output powerful and smooth power, providing a solid foundation for the precise transmission of reducers.
The unique structure of planetary cycloidal pinwheel reducer
The planetary cycloidal pinwheel reducer, as the name suggests, adopts a unique design of meshing between planetary gears and cycloidal pinwheels inside. This design not only enables the gearbox to have a very high transmission ratio, but also achieves a smooth and impact free transmission process. The vertical XLD and small horizontal XWD, as representatives of this series of reducers, respectively meet the application scenarios of different spatial layouts and installation requirements.
-Vertical XLD reducer: It adopts a vertical installation method, has a compact structure, occupies a small area, and is particularly suitable for situations with limited space. Its internal planetary gears achieve deceleration through the rolling contact of cycloidal pinwheels, transmitting high torque, running smoothly, and producing low noise. In addition, the vertical design also facilitates direct connection with equipment above or below, reducing intermediate links in the transmission chain and improving the overall reliability of the system.
 Small horizontal XWD reducer * *: focuses more on compact, lightweight, and efficient transmission. Its horizontal installation design makes installation and maintenance more convenient, and is widely used in small mechanical equipment that requires flexible layout. The small horizontal XWD reducer also uses cycloidal pinwheel transmission, but through optimized design, it further reduces volume and weight while maintaining good transmission performance. Its high-precision gear machining and assembly process ensures low backlash and low noise during the transmission process, providing the possibility for precision control.
The innovation of the pendulum type reducer
The reason why the pendulum type reducer stands out among many reducers is its innovative transmission mechanism. The cycloidal pinwheel transmission achieves efficient torque transmission and deceleration through the revolution and rotation of planetary gears, as well as the special design of the pinwheel tooth profile. This transmission method not only has a wide range of transmission ratios, but also has high load-bearing capacity, making it particularly suitable for heavy-duty, low-speed, and high torque working conditions. In addition, the pendulum type reducer also has a reverse self-locking function, which means that when the motor stops rotating, the output shaft can also maintain a fixed position, effectively preventing safety hazards caused by reverse rotation.
