What are the differences in protective measures for different models of worm gear reducers when the working environment temperature is too high or too low

There are some differences in the protective measures of different models of worm gear reducers when the working environment temperature is too high or too low. The following are some common situations of different models:

CW series worm gear reducer: The working environment temperature is -40 ℃~40 ℃. When the temperature is below 0 ℃, the lubricating oil must be heated to above 0 ℃ before starting; When the temperature exceeds 40 ℃, cooling measures must be taken.

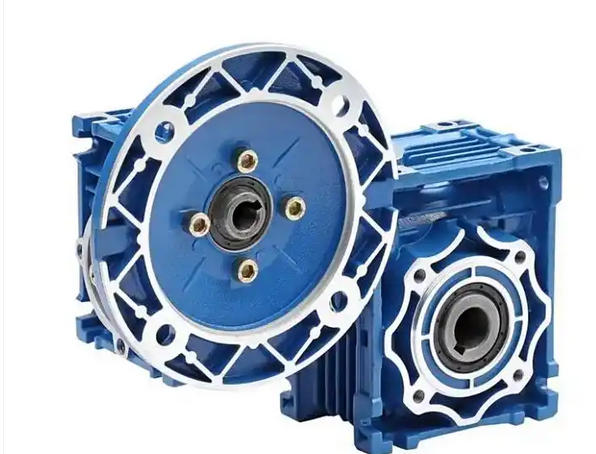

NMRV series worm gear reducer: When the operating environment is below -30 ℃ or above 60 ℃, special material oil seals must be replaced. The motor matched with the reducer must be suitable for working in low-temperature environments, and the motor power must meet the torque requirements for low-temperature starting. In low-temperature environments, the viscosity of the lubricating oil is high before the equipment is put into use. The machine should be tested with no load before loading.

SCW series worm gear reducer: In low-temperature environments, lubricating oil suitable for low-temperature operation should be selected. The temperature of the reducer can be increased by preheating it, such as using warm air, heaters, etc. At the same time, check all components of the gearbox to ensure that there is no deformation or damage caused by temperature changes. Also, check whether the seals are damaged or hardened, and replace them if necessary. In high-temperature environments, it is necessary to consider heat dissipation measures, such as ensuring that the gearbox has sufficient heat dissipation space, which can be improved by increasing ventilation, using heat sinks, or changing the installation position.

Overall, different models of worm gear reducers have some commonalities in temperature protection measures, such as paying attention to preheating the lubricating oil and selecting suitable lubricating oil at low temperatures, and paying attention to heat dissipation and selecting high-temperature resistant lubricating oil at high temperatures. However, specific temperature range requirements and selection of special components may vary depending on the model.
