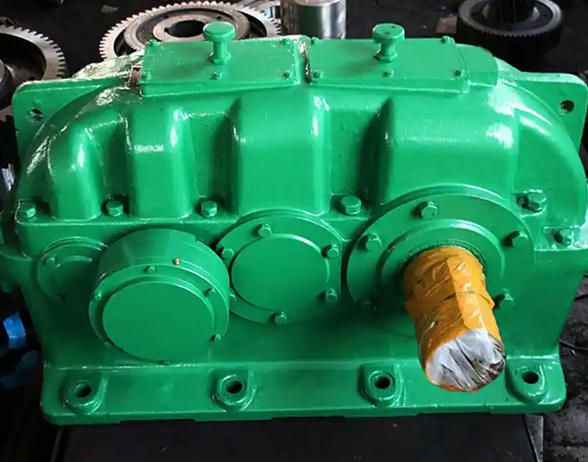

What specific measures can be taken to optimize the operating status of ZLY series gear reducers

The optimization of the operating state of gear reducers is the core means to improve their efficiency, extend their lifespan, and reduce the risk of failure. It requires systematic measures from five dimensions: design matching, lubrication management, structural improvement, operation monitoring, and maintenance. Specific measures can be broken down as follows:
1、 Optimizing design and selection: reducing "inherent losses" from the source
The rationality of design and selection directly determines the basic state of gearbox operation, and it is necessary to avoid the matching problem of "big horse pulling small car" or "small horse pulling big car", while optimizing the core component parameters:

Accurately match the working condition requirements

Select the appropriate reducer model based on actual load (rated load, impact load), speed (input/output speed), and working cycle (continuous/intermittent operation) to avoid overload (causing gear/bearing overheating) or underload (causing efficiency waste).

If there are frequent start stop, forward and reverse, or impact loads, additional "impact resistant" gears (such as carburized quenched gears) and bearings (such as self-aligning roller bearings) should be selected to enhance fatigue resistance.

Optimize gear and transmission structure

Gear parameter optimization: using "variable gears" (such as height and angle changes) to reduce tooth contact stress and decrease meshing wear; Increasing the gear module (matching the center distance) can improve the load-bearing capacity, or using "helical gears/herringbone gears" instead of spur gears - helical gears have a larger tooth contact area, smaller impact, smoother operation, and can reduce the additional heat generated by poor meshing.

Transmission ratio optimization: To avoid excessive single-stage transmission ratio (which can easily lead to significant differences in gear diameter and uneven force distribution), priority should be given to multi-stage transmission (such as 2-3 stages) to make the force on each stage of the gear more uniform and reduce local losses.

Bearing selection and layout: Select suitable bearings based on the type of force (radial force/axial force) (such as deep groove ball bearings suitable for radial force, and angular contact ball bearings suitable for combined loads); Reasonable design of bearing spacing to avoid increased shaft deflection caused by excessive spacing, which can lead to gear eccentric wear.

2、 Strengthening lubrication management: the 'core means' to reduce friction losses
In the faults of gear reducers,
More than 70% are related to poor lubrication
(such as dry friction, oil film rupture, and grease aging), optimizing lubrication needs to cover the entire process of "oil selection, filling amount, and replacement cycle"
