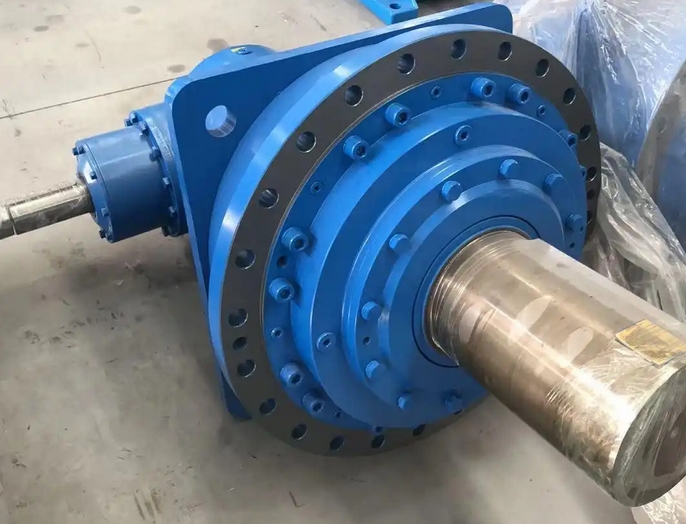

The features of the high-power P2KA18 planetary gear reducer

P2KA18 planetary gearbox belongs to high-power planetary gearbox, which is widely used in the industrial field. The following is its related introduction:

characteristic

Modular design: It can be combined according to customer requirements and can be combined with different types of primary gears. The primary gear can be a helical gear, bevel gear, or a combination of helical and straight teeth to meet different working conditions.

High strength material: The box body is made of ductile iron, which greatly improves the rigidity and seismic resistance of the box body. The sun gear, planetary gear, inner ring gear, helical gear, and spiral bevel gear are all treated with carburizing and quenching grinding to obtain a high hardness and wear resistance surface. After the gear heat treatment, all teeth are ground to reduce noise and improve the efficiency and service life of the whole machine.

Large transmission ratio range: The reduction ratio is between 25-4000r/min, and when combined with the R and K series, it can achieve even greater speed ratios.

High output torque: With an output torque of up to 2600000Nm, it can adapt to high-power and high torque working environments.

Multiple input and output methods: Input methods include concentric axis input, helical gear input, bevel gear input, and bevel gear helical gear input; The output methods include internal spline, hollow shaft shrink disc, external spline, and solid shaft flat key.

There are various installation forms: horizontal installation, vertical installation, torsion arm installation, etc., which are convenient to install and have strong adaptability.
