ZLY450-90-1 cylindrical gear hard tooth surface reducer for elevator ZLY400-20-II

Optimizing the perfect combination of hoist and reducer: ZLY450-90-1 and ZLY400-20-II are indispensable and important equipment in modern industrial manufacturing. As core components of lifting and transmission systems, they play a crucial role in various industries. This article will delve into the characteristics, applications, and advantages of ZLY450-90-1 hoist and ZLY400-20-II cylindrical gear hard tooth reducer, in order to help users understand their value in practical use.
1、 Introduction to ZLY450-90-1 Elevator
ZLY450-90-1 elevator is a high-performance lifting equipment mainly used for material lifting in industries such as mining, construction, and ports. Its design considers efficiency and safety, and is suitable for various complex work environments.
1.1 Working principle
The ZLY450-90-1 elevator relies on electric motor drive and a powerful transmission mechanism to lift materials from low to high. Its core components include a lifting drum, steel wire rope, and braking device. The electric motor reduces the speed through a reducer and amplifies the torque to obtain greater lifting capacity.
1.2 Technical Parameters
-Rated load: 450 tons
-Elevation: 90 meters
-Speed increase: adjustable from 0.5-10 meters per minute
-Motor power: customizable according to application requirements
1.3 Application Fields
ZLY450-90-1 hoist is widely used in the following fields:
-Mining material upgrading
-Transportation of concrete and steel in construction
-Port loading and unloading operations
-Item handling in logistics and warehousing systems

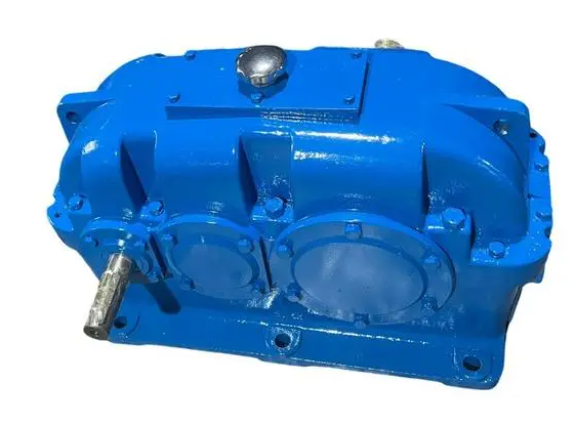

2、 Analysis of ZLY400-20-II cylindrical gear hard tooth surface reducer
The ZLY400-20-II cylindrical gear hard tooth surface reducer is an important component of the hoist system, mainly used to reduce the speed of the electric motor and increase the output torque, thereby ensuring the stable operation of the hoist under various working conditions.
2.1 Working principle
This reducer mainly adopts cylindrical gear transmission, and its tooth surface has undergone hardening treatment, which has higher wear resistance and service life. The input shaft reduces the speed through a gear set, while the output shaft provides greater torque to achieve driving.
2.2 Technical Parameters
-Rated power: 400 kW
-Transmission ratio: 20:1
-Input speed: 1500 revolutions per minute
-Output speed: 75 revolutions per minute
-Transmission efficiency: about 96%
2.3 Application Fields
ZLY400-20-II reducer has been widely used in the field of mechanical transmission, mainly including:
-Drive system for elevators
-Mining machines and other conveying equipment
-Drive of fans and pumps
-Automation equipment for industries such as metallurgy and chemical engineering
