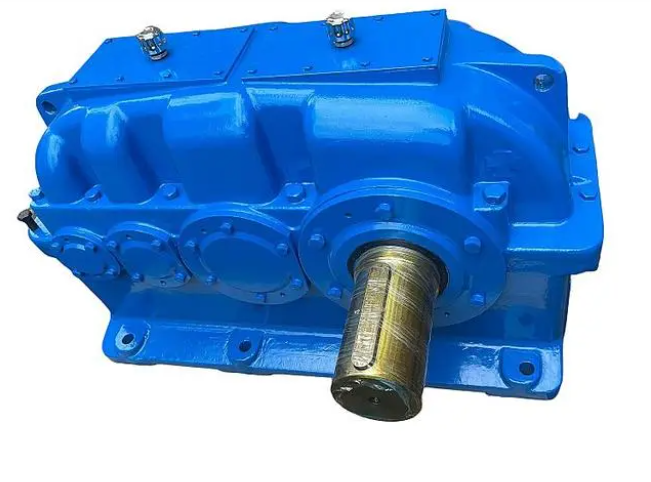

ZSY560-90-I cylindrical hard tooth surface gear reducer can be equipped with backstop external meshing involute

In the industrial field, reducers, as a key transmission equipment, are widely used in various mechanical systems. The stability and reliability of their performance directly affect the operational efficiency of the entire production line. Among various types of reducers, ZSY560-90-I cylindrical hard tooth surface gear reducer has become a popular choice in the market due to its unique advantages. This article will provide a detailed technical analysis of this reducer and explore its application and advantages in the external involute transmission mode.
1、 Technical characteristics of ZSY560-90-I cylindrical hard tooth surface gear reducer
The ZSY560-90-I cylindrical hard tooth surface gear reducer adopts advanced gear design concepts and manufacturing processes, and has the following significant technical characteristics:
1. Hard tooth surface design: The gears of the reducer are made of high-strength alloy steel material, which has undergone precision processes such as quenching and grinding. The tooth surface has high hardness and good wear resistance, and can maintain stable transmission performance under heavy load and high-speed conditions.
2. Cylindrical gear structure: Cylindrical gears have the characteristics of compact structure and high transmission efficiency. In the ZSY560-90-I reducer, the cylindrical gears are processed with high precision to ensure the meshing accuracy and transmission smoothness between the gears.
3. High torque transmission capability: This reducer has a high torque transmission capability and can meet the transmission needs under various heavy-duty conditions. At the same time, its structural design is reasonable and can withstand large radial and axial loads.
4. Can be equipped with a backstop: ZSY560-90-I cylindrical hard tooth surface gear reducer can be configured with a backstop according to user needs to achieve reverse self-locking function, prevent the equipment from reversing or reversing during shutdown, and ensure equipment safety.
2、 Application and advantages of external involute transmission method
The external involute transmission method is a commonly used form in gear transmission, and its application in ZSY560-90-I cylindrical hard tooth surface gear reducer has the following advantages:
1. High transmission efficiency: The external involute transmission method has the characteristic of high transmission efficiency, which can reduce energy loss and improve the efficiency of the entire transmission system.
2. Smooth transmission: The involute tooth profile design reduces the impact and vibration generated by the gear during meshing, thereby ensuring the smoothness and reliability of the transmission.
3. Strong load-bearing capacity: The external meshing involute transmission method has a larger contact area and higher uniformity of tooth surface pressure distribution, allowing the reducer to withstand greater loads.
4. Suitable for high-speed and heavy-duty working conditions: Under high-speed and heavy-duty working conditions, the external involute transmission method can maintain stable transmission performance and meet the transmission requirements of various complex working conditions.
3、 Application example of ZSY560-90-I cylindrical hard tooth surface gear reducer in external involute transmission mode
In practical applications, ZSY560-90-I cylindrical hard tooth surface gear reducer is widely used in various heavy-duty and high-speed transmission systems due to its superior performance and stability. Here is a typical application example:
A large mining enterprise adopts ZSY560-90-I cylindrical hard tooth gear
