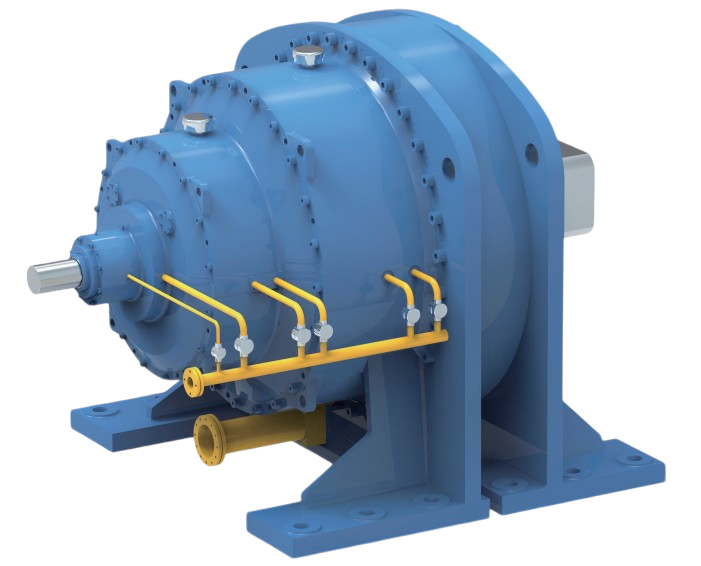

WGT Sugar Mill Planetary Gearbox: Core Drive Solution for Sugar Mill Press Units

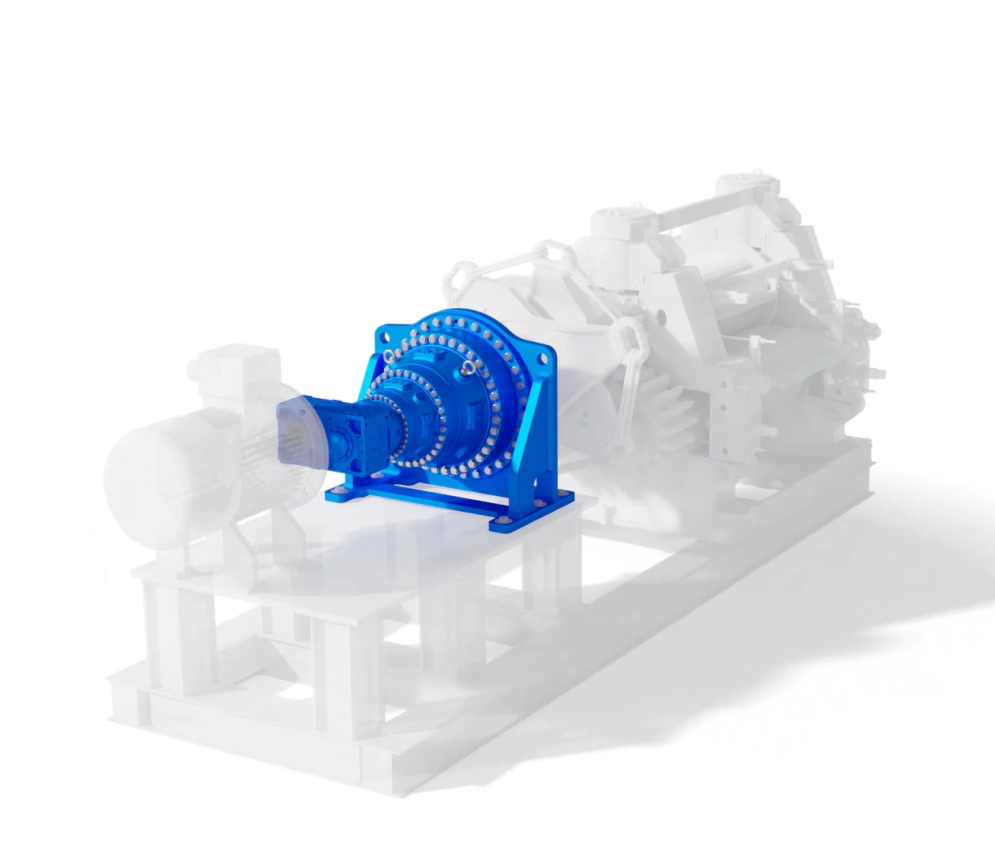

As the power core of sugar production lines, WGT planetary gearboxes are specially designed for main press drive systems and feed reduction devices. This series supports 2–6 sets of modular configurations, delivering stable torque output from power source to press rolls via motor drive and high-precision couplings.
• Ultra-compact: High power density design significantly reduces volume and weight compared with traditional reducers, lowering installation loads.
• Heavy-duty & high-torque: Engineered for shock loads in sugarcane/beet pressing, providing exceptional torque capacity for uninterrupted operation.
• Harsh condition adaptability: Reinforced gear hardness and sealing structure ensure outstanding reliability in high-dust, high-humidity environments.
16,000 TCD Gearbox Selection Technical Proposal.pdf
WGT Sugar Mill Planetary Gearbox.pdf
Model Nomenclature
WGT P3P705E-160
• WGT: WEIGAO TRANSMISSION CHINA
• P: Single-motor drive industrial planetary reducer
• SP: Dual-motor drive industrial planetary reducer
•
3P: 3-stage planetary gear drive (input-output coaxial)
• 705: Specification (max rated standard value, kN·m)
• B: Solid output shaft with parallel key
• C: Involute splined hollow shaft
• D: Involute splined solid shaft
• E: Solid square output shaft
• H: Hollow output shaft with shrink disk
• 160: Nominal transmission ratio
• B: Foot-mounted design
Model Specifications | T2N(kNm) | T2max(kNm) |
P3P705 | 350 | 705 |
P3P1065 | 500 | 1065 |
P3P1320 | 650 | 1320 |
P3P1664 | 800 | 1664 |
P3P2034 | 1000 | 2034 |
P3P2403 | 1200 | 2403 |
P3P3080 | 1500 | 3080 |
P3P3640 | 1800 | 3640 |
P3P4650 | 2300 | 4650 |
P3P5645 | 2800 | 5645 |
P3P6465 | 3200 | 6465 |
P3P7725 | 3800 | 7725 |
P3P8940 | 4400 | 8940 |
