1000V Electric Motor

1000V electric motors, also known as medium-voltage low-end motors, are a critical category of industrial drive equipment bridging low-voltage and traditional high-voltage motor systems. Designed and manufactured to meet IEC and international industrial standards, this series of 1000V motors balances power density, installation convenience and electrical safety. It is widely selected for projects where 400V low-voltage systems cannot deliver sufficient power, while 6kV/10kV high-voltage power distribution is unnecessary or uneconomical. Compared with low-voltage motors, the 1000V design reduces current at the same power level, cuts cable cross-section requirements, lowers line loss and saves investment in power cables and switchgears. It becomes an ideal driving solution for medium-power industrial equipment in mining, water treatment, port machinery, building materials and general manufacturing.

Core Technical Parameters

Electromagnetic design of the 1000V electric motor adopts finite element analysis for optimization. The stator core uses high-grade low-loss silicon steel sheets, stacked precisely to minimize iron loss and magnetic leakage. Stator windings use high-strength enameled wire and undergo vacuum pressure impregnation (VPI) treatment. The solidified winding structure improves dielectric strength, thermal stability and resistance to moisture and dust. The medium 1000V voltage level brings lower insulation stress than 6kV or 10kV motors, reducing the risk of partial discharge and simplifying daily electrical inspection. The squirrel cage rotor can be cast aluminum or copper bar structure. Copper bar rotor versions offer stronger mechanical strength, better starting performance and can withstand frequent heavy-load starts, which suits equipment with periodic impact loads.

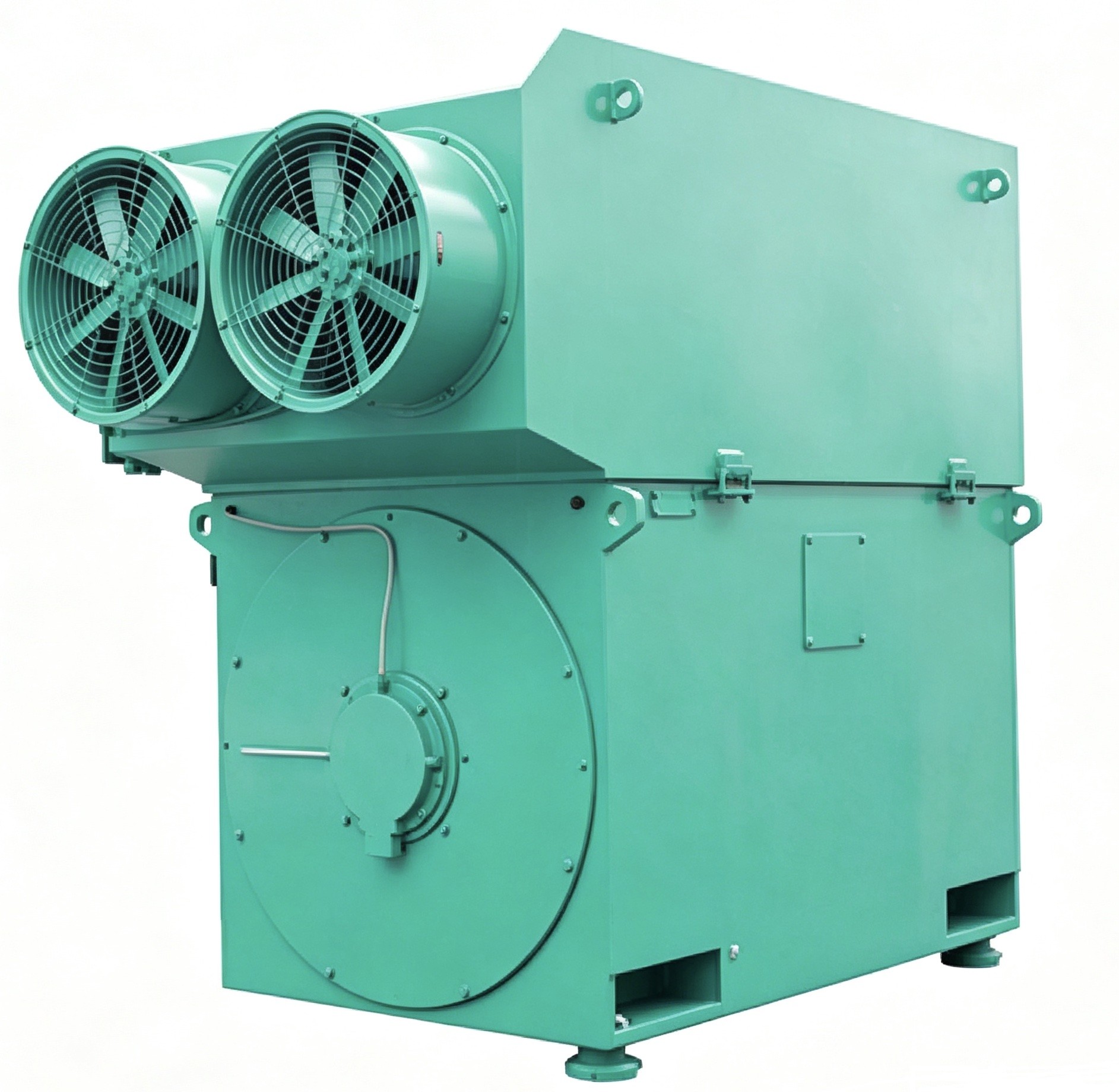

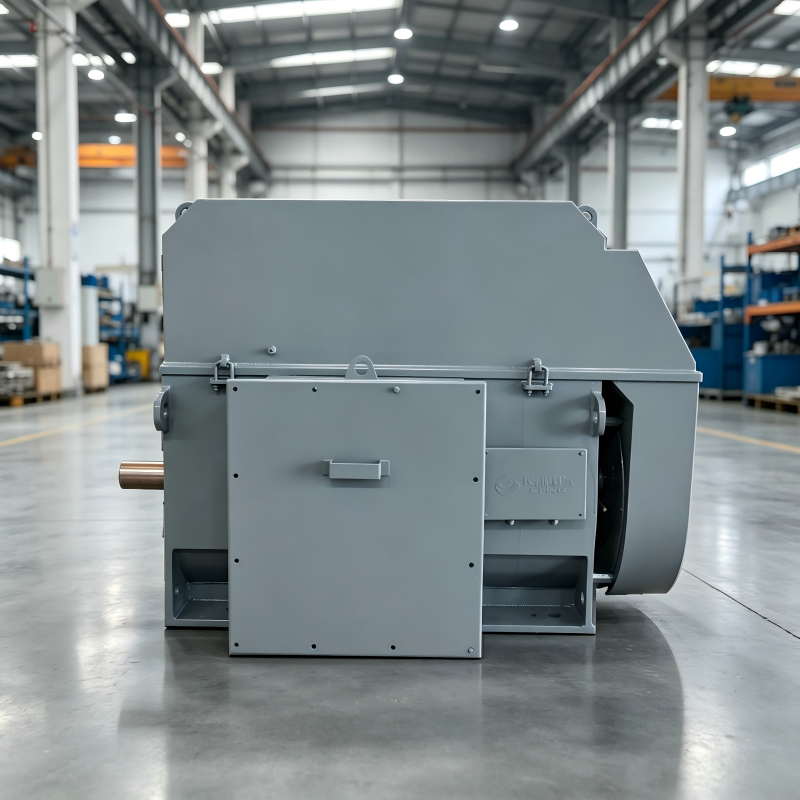

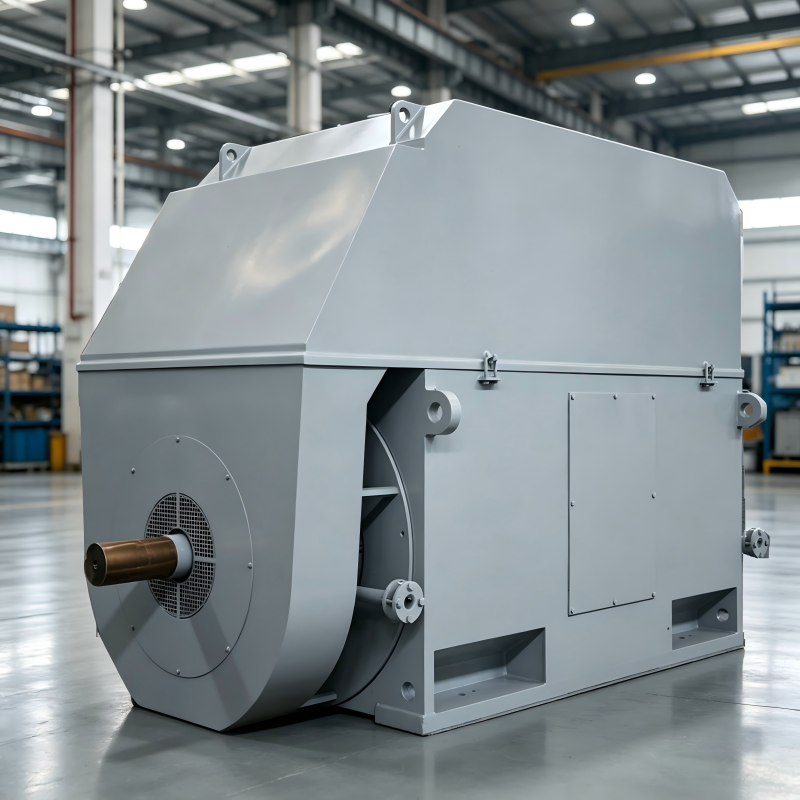

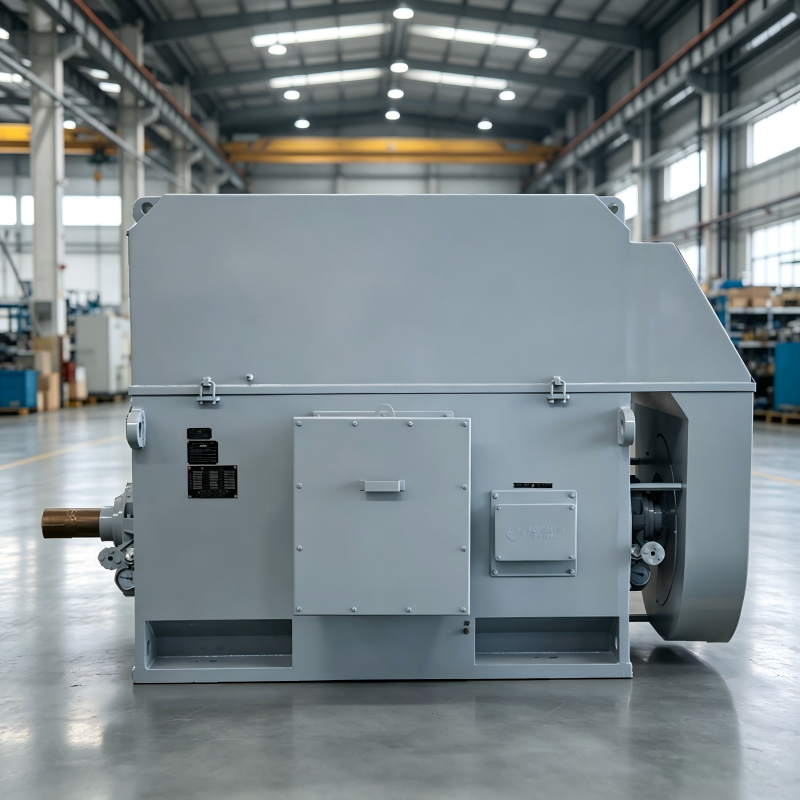

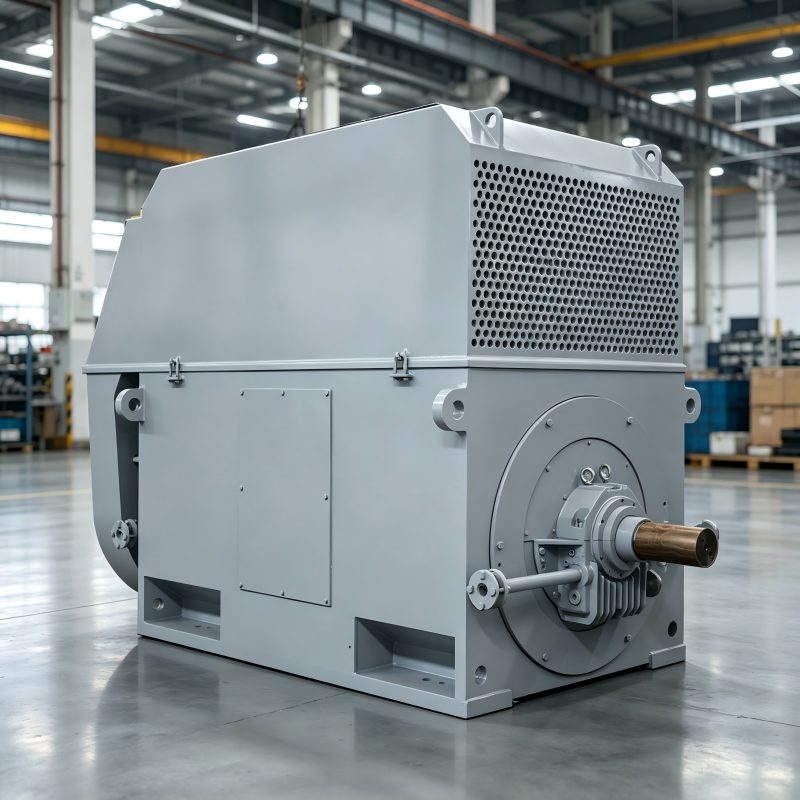

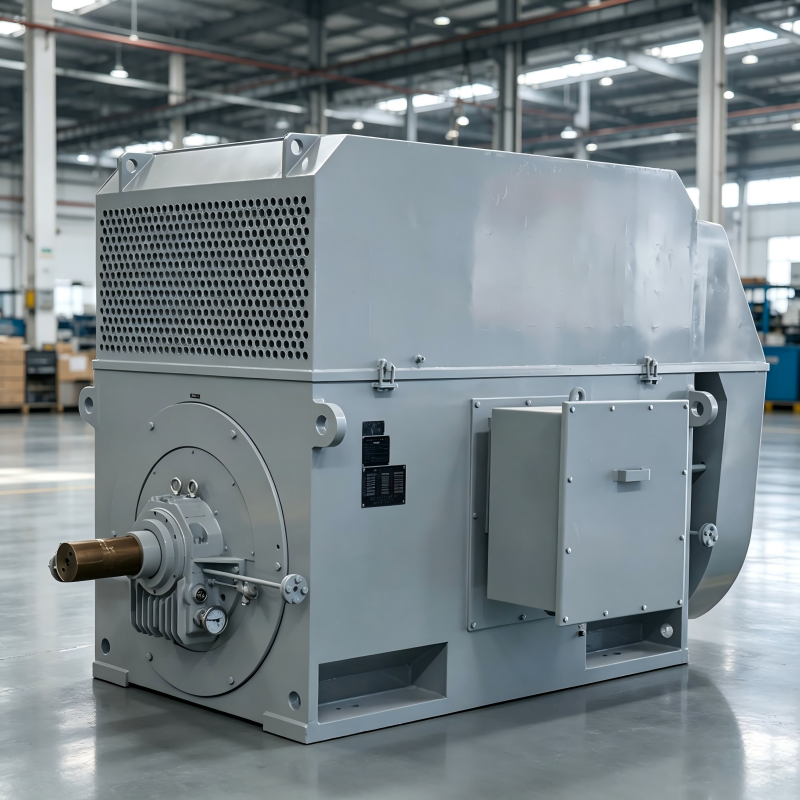

The motor frame can be cast iron or welded box structure according to power size. Cast iron frames feature good vibration damping and stable performance for medium-power models. Welded box frames are adopted for larger power types, with high rigidity and strong resistance to mechanical shock. The bearing system matches high-quality rolling bearings, and temperature sensors can be embedded in bearings and stator windings as an option. Real-time temperature data can be transmitted to the factory PLC control system to achieve online condition monitoring and over-temperature alarm, avoiding unexpected shutdowns caused by overheating. Multiple cooling modes are available: IC411 self-fan cooling for most conventional indoor environments; IC416 independent external fan cooling for variable speed working conditions; IC611 air-to-air closed cooling for dusty, humid or corrosive workshops.

For environmental adaptability, optional protection grades from IP54 to IP56 prevent dust and splash water from entering the motor interior. Special surface coating can be supplied for coastal salt fog, chemical corrosive gas and underground humid mining environments. The motor supports variable frequency drive operation. Optimized electromagnetic and bearing design suppresses additional heat and vibration generated during variable frequency working, ensuring stable operation under speed regulation scenarios such as water pumps and fans.

This 1000V motor covers extensive application scenarios. It drives water pumps and blowers in water treatment and water conservancy projects; serves belt conveyors and auxiliary equipment in underground mines; matches port hoisting and bulk material handling machinery; and supports mixers, fans and crushers in building materials and chemical factories. Our factory can provide customized services including special voltage, explosion-proof structure, reinforced bearing and anti-corrosion treatment to meet different site requirements.

Every motor is fully inspected before shipment, including insulation test, no-load running test, vibration and noise measurement. With reasonable voltage grade, high efficiency, simple maintenance and flexible customization, the 1000V electric motor provides a reliable and economical medium-power drive option for global industrial users.
