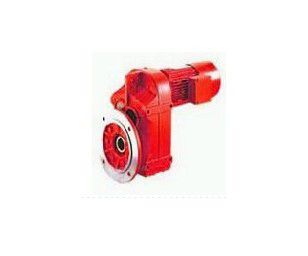

Product Name: F series parallel shaft helical gear reducer
Number of products: FFAFAFFAZ37475767778797107127157
Product price: inquiry, selection, please call the national free customer service hotline: 4007 200-300
Detailed description:
● Product Overview:
1. F series reducer is manufactured in accordance with international technical requirements and has high scientific and technological content.
2, space saving, reliable and durable, with high overload capacity, power up to 90KW or more.
3. F series parallel shaft 钭 gear reducer has low energy consumption, superior performance and high efficiency of over 95%.
4. Parallel shaft helical gear reducer has low vibration, low noise and high energy saving. It adopts high-quality section steel material and steel cast iron box body, and the gear surface is subjected to high-frequency heat treatment.
5. After precision machining to ensure the parallelism of the shaft and the accuracy of positioning, this-cutting gear unit of the gear transmission assembly is equipped with various types of motors, forming an electromechanical integration, which fully guarantees
Deceleration motor products use quality characteristics.
● Performance characteristics:
1. Parallel output, compact structure, large transmission torque, stable operation, low noise and long life.

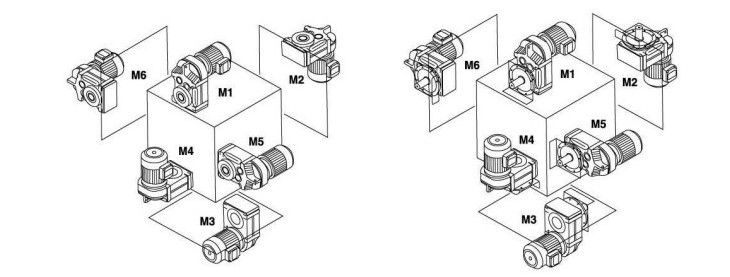

2. Installation method: base mounting hollow shaft mounting flange installation torque arm installation small flange installation.
3. Basic type input and output rotation direction is the same, the third level is opposite; F/R combination is also consulted.
4. Output mode: hollow shaft output or solid shaft output.
5. Average efficiency: 96% for the second level, 94% for the third level, and 85% for the F series/R series.
. Technical Parameters:
Speed ratio range: basic type 3.81~ 281.71, F/R combination type can reach 31434
Torque range: 200~ 18000 Nm Power range: 0.18~ 200 kW

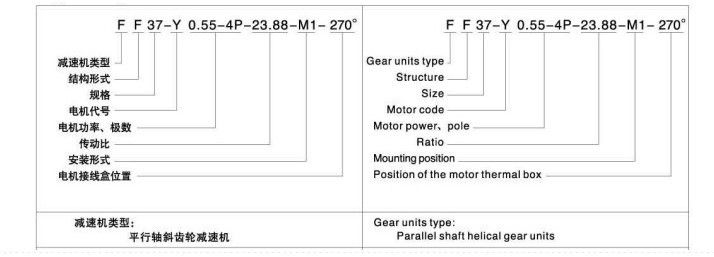

. structure type:
F-axis extension, foot mounting
FF-shaft extension type, flange connection
S represents the axis input
FA shaft mounted coupling KAF shaft mounted, flange mounted
