Four - blade swept back and three - blade cone bottom flat paddle type
  1. Four - blade swept back and three - blade cone bottom flat paddle type

Four - blade swept back and three - blade cone bottom flat paddle type

  • Category:Old website product data
  • Inquiry Email
    Description

    The company manufactures nearly 30 types of over 140 agitators, ranging from the most common (including the existing HB5 standard, SB90 standard agitators) to a variety of complex shapes or special purpose agitators. According to H/ t2123-91 standard various specifications of the series of manufacturing, or according to the production process requirements of users, design and manufacture of agitator for a variety of special requirements, special specifications or special USES.

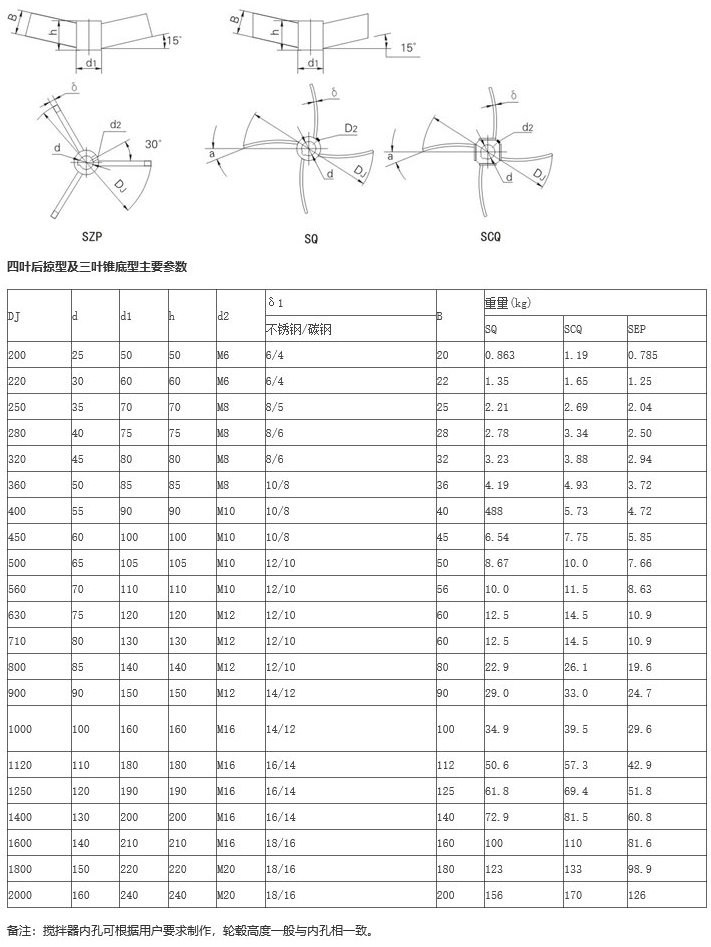

    Four-leaf swept and three-leaf cone bottom paddle

    Four-leaf swept monolithic-SQ, four-leaf swept detachable-SCQ, three-leaf cone bottom paddle-SZP

    This type of agitator is a radial flow agitator. The finger-type baffle can be used to obtain a large circulation circulation of the upper and lower circulation. Under the cooperation of the baffle, the shearing action is also good. It is suitable for solid dispersion in an elliptical or cone-bottomed container. Reaction processes such as dissolution, suspension, heat transfer and liquid phase reaction. The four-leaf swept type is larger than the three-leaf swept-type stirring strength and stirring power. Common medium viscosity μ<2000cP, common speed n=100-300rpm.
