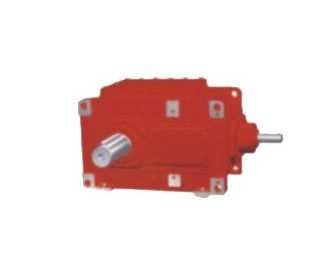

Product Name: HB series hard surface gear reducer
Product number: H1 H2H3 H4 B2 B3 B4
Product price: inquiry, selection, please call the national free customer service hotline: 4007 200-300
. H B Series Standard I Industry Gearbox Features:
1. The HB gearbox adopts a universal design scheme and can be modified into an industry-specific gearbox according to customer requirements.
2. Realize parallel shaft, orthogonal shaft, vertical and horizontal general-purpose cabinets, with fewer types of parts and more specifications.
3. Adopting the structure of the suction box body, large cabinet surface area and large fan, cylindrical gear and spiral bevel gear adopt advanced grinding process to reduce the temperature rise and noise of the whole machine.
Reliability is improved and transmission power is increased.
4. Input mode: motor coupling flange, shaft input.
5. Output mode: solid shaft with flat key, hollow shaft with flat key, hollow shaft with expansion joint, hollow shaft with spline joint, solid shaft with spline joint and solid shaft with flange joint.
6. Installation method: horizontal, vertical, swing base type, torsion arm type.
7.HB series products have 3 ~ 26 type specifications, the number of reduction transmission stages is 1~4, the speed ratio is 1.25 ~ 450; and our factory R, K S series combination to get a larger speed ratio.
