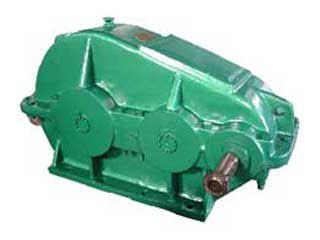

JZQ reducer
  1. JZQ reducer

JZQ reducer

  • Category:Old website product data
  • Inquiry Email
    Description

    Application range and structure of the machine 1. Application scope and advantages: This machine is widely used in various lifting, transportation, mining machinery and other various machinery for deceleration. The linkage mode can be directly linked by the coupling, and the flexible belt can also be used for linkage. The machine has strong versatility and interchangeability, simple maintenance, and an efficiency coefficient of 0.94. It has the advantages of small starting resistance and flexible movement. The structure of the machine is a two-stage three-axis cylindrical helical gear horizontally split and fully sealed. The lubricating oil is contained inside the reducer, and the oil retaining plate is arranged on the driving shaft and the intermediate shaft. The rolling bearing is used for each pivot point, and the axial clearance can be adjusted by the internal adjusting ring. The upper part of the machine has an inspection cover, and the lower part has an inspection cover. Oil pointer and oil for waste oil.

    Main specification

    This series of speed reducer is divided into the following types according to size, speed ratio and assembly form:

    1. According to the center of the drive shaft and the passive shaft, there are eight models: JZQ250, JZQ350, JZQ400, JZQ500, JZQ650, JZQ750, JZQ850 and JZQ1000.

    、按速比大小、每种型号又分以下九种速比。(表二)





    3、按主动轴和被动轴的装配方法,又分九种装配形式。(图一)

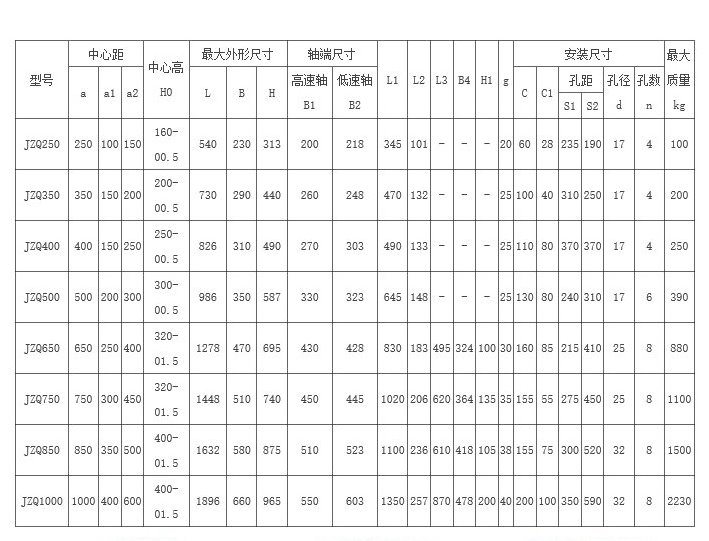

    JZQ型圆柱齿轮减速机基本尺寸
