Home Products Old website product data LCW vertical arc cylindrical worm reduce
LCW vertical arc cylindrical worm reducer
  1. LCW vertical arc cylindrical worm reducer

LCW vertical arc cylindrical worm reducer

  • Category:Old website product data
  • Inquiry Email
    Description

    Product introduction: 1. The model of the vertical circular cylindrical worm reducer is expressed by LCW, where L indicates that the reducer type is vertical, C indicates the worm tooth shape ZC­ 1, W indicates the worm reducer. 2. There are 8 kinds of center distances: 80mm, 100mm, 125mm, 160mm, 180mm, 200mm, 225mm, 250mm3. There are 10 kinds of speed ratios.

    1. Model


    The model of the vertical arc cylindrical worm reducer is expressed by LCW, where L indicates that the reducer type is vertical, C indicates the worm tooth shape ZC­­1, and W indicates the worm reducer.


    2. There are 8 kinds of center distances, which are:


    80mm, 100mm, 125mm, 160mm, 180mm, 200mm, 225mm, 250mm


    3. There are 10 speed ratios: 8, 10, 12.5, 16, 20, 25, 31.5, 40, 50, 63


    4. Tag example

    型号
    a
    D
    D0
    D1
    T
    h
    d
    l
    b
    t
    e
    H
    H1
    H2
    H3
    L1
    L2
    n-s
    电机功率P1/KW
    重量/kg
    LCW80
    80
    305
    270
    235
    6
    24
    40k6
    82
    12
    43
    10
    914~989
    744
    445
    340
    130~225
    156
    8-φ14.5
    0.75~1.5
    98~118
    350
    300
    250
    2.2
    395
    360
    315
    3
    LCW100
    100
    350
    300
    250
    6
    26
    45k6
    82
    14
    48.5
    10
    975~1100
    785
    450
    345
    145~225
    186
    8-φ14.5
    1.5~2.2
    145~185
    495
    455
    400
    4~5.5
    LCW125
    125
    455
    400
    355
    6
    26
    60m6
    105
    18
    64
    15
    1140~1280
    895
    505
    370
    200~330
    225
    8-φ18.5
    3
    215~298
    495
    455
    400
    4~5.5
    560
    510
    450
    7.5~11
    LCW160
    160
    560
    510
    450
    6
    30
    70m6
    105
    20
    74.5
    20
    1350~1465
    1035
    535
    390
    242~405
    285
    8-φ24
    5.5~11
    345~465
    600
    560
    490
    11~15
    650
    600
    550
    22
    LCW180
    180
    560
    510
    450
    6
    30
    85m6
    130
    22
    90
    20
    1459~1619
    1144
    585
    415
    257~455
    310
    12-φ24
    7.5~11
    385~575
    600
    560
    490
    18.5
    650
    600
    550
    22
    LCW200
    200
    560
    510
    450
    6
    30
    90m6
    130
    25
    95
    20
    1535~1750
    1200
    605
    435
    292~463
    330
    12-φ24
    7.5~15
    480~685
    650
    600
    550
    22~37
    LCW225
    225
    600
    560
    490
    6
    30
    100m6
    165
    28
    106
    25
    1726~1871
    1341
    665
    455
    317~445
    355
    12-φ24
    11~15
    620~815
    650
    600
    550
    22~45
    LCW250
    250
    600
    560
    490
    6
    30
    110m6
    165
    28
    116
    25
    1785~1975
    1390
    680
    470
    357~492
    390
    12-φ24
    11~18.5
    730~1040
    650
    600
    550
    22~45
    700
    650
    600
    55

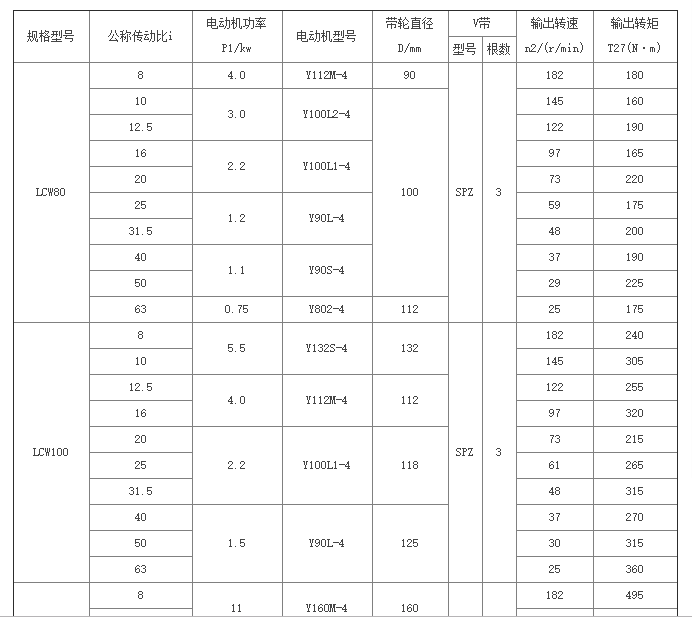

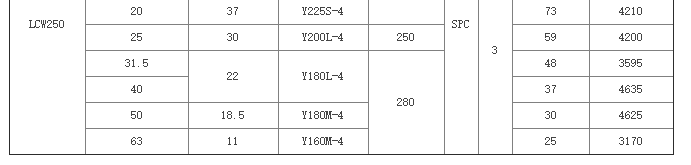

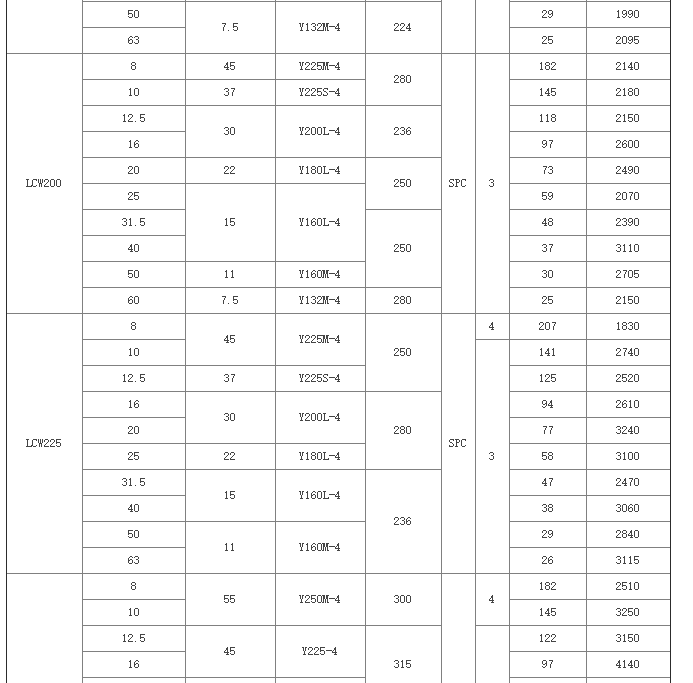

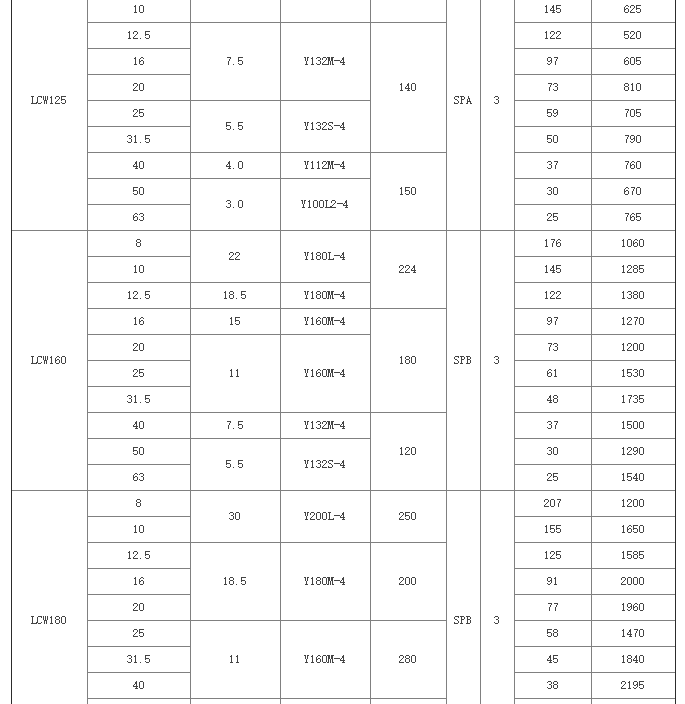

    LCW型立式圆弧圆柱蜗杆减速器性能参数(JB/T7848-1995)
