M type cylindrical worm reducer
  1. M type cylindrical worm reducer

M type cylindrical worm reducer

  • Category:Old website product data
  • Inquiry Email
    Description

    Product introduction: M-type vertical worm reducer features and marking examples I. Overview M-type vertical worm reducer is a two-stage reduction drive, the first stage is belt drive, the second stage is Archimedes worm drive. Compact structure, large transmission ratio, stable and reliable operation, low noise and self-locking. Second, marked M type vertical worm reducer size M reducer

    I. Overview


    The M-type vertical worm reducer is a two-stage reduction drive. The first stage is belt drive and the second stage is Archimedes worm drive. Compact structure, large transmission ratio, stable and reliable operation, low noise and self-locking.


    Second, the mark

    二、标记

    M型立式蜗杆减速机外形尺寸

    M减速器主要尺寸      /mm

    型号
    外形尺寸
    输出轴端联接尺寸
    H0
    H1
    H2
    H3
    H4
    H5
    L1
    L2
    B
    C
    O
    M1
    l1
    l2
    l3
    l4
    d1
    b1
    b2
    t1
    t2
    t3
    M4
    570
    200
    100
    105
    60
    105
    111
    175
    230
    200
    86
    M27×1.5
    40
    4
    48
    25
    35
    5
    10
    8
    11.9
    23
    M6
    740
    250
    130
    145
    75
    140
    147
    212
    300
    280
    126
    M39×1.5
    50
    4
    58
    30
    50
    6
    16
    10
    18.3
    35
    M8
    890
    300
    150
    180
    100
    160
    184
    280
    380
    350
    164
    M42×1.5
    70
    4
    78
    30
    55
    6
    16
    10
    21.5
    38
    M10
    1070
    380
    170
    210
    120
    190
    235
    370
    415
    400
    205
    M52×1.5
    80
    4
    88
    40
    70
    8
    20
    12
    26.4
    48
    M12
    1090
    380
    170
    218
    110
    212
    241
    417
    480
    500
    240
    M60×2
    80
    4
    88
    40
    80
    8
    22
    14
    29.9
    56
    M14
    1218
    336
    214
    278
    160
    230
    300
    480
    640
    700
    301
    M80×3
    110
    5
    123
    45
    100
    10
    28
    16
    38.4
    74
    型号
    安装尺寸
    机座输出端
    机座输入端(III节点)
    联轴器(II节点)
    D1(H8)
    D2
    D3
    h4
    h5
    d0
    h3
    D4
    D5
    D6
    M3
    h1
    h2
    d3
    d4
    M4
    215
    260
    290
    15
    6
    12
    8
    125
    145
    170
    M10
    25
    75
    58
    72
    M6
    290
    350
    380
    20
    7
    14
    10
    180
    210
    240
    M10
    30
    90
    70
    85
    M8
    360
    440
    480
    24
    7
    18
    12
    200
    250
    300
    M12
    30
    110
    80
    100
    M10
    440
    535
    580
    25
    7
    22
    14
    230
    300
    360
    M16
    40
    130
    95
    115
    M12
    440
    535
    580
    28
    7
    22
    14
    230
    300
    360
    M16
    40
    130
    105
    130
    M14
    540
    605
    650
    30
    9
    24
    16
    300
    370
    425
    M24
    50
    170
    130
    160

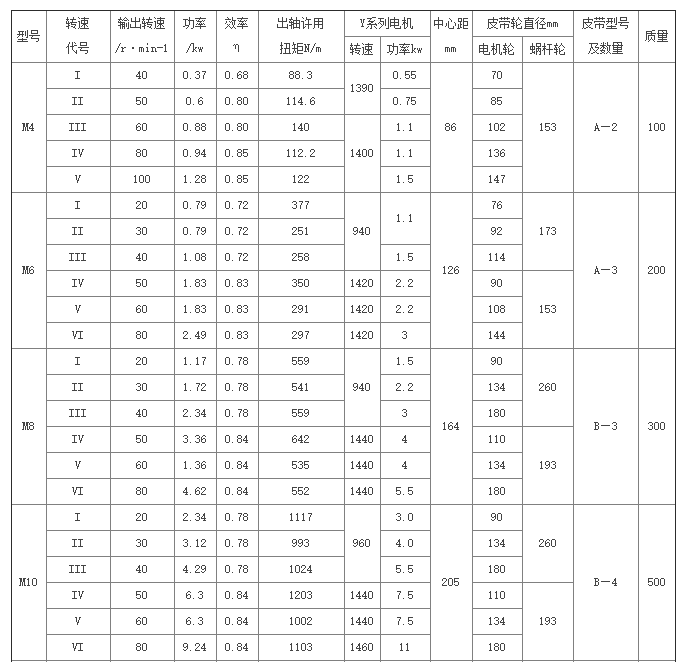

    M型立式蜗杆减速机的选用
