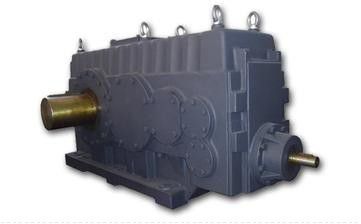

SEW M Series High Power Reducer Product Description:
The M Series large reducers have a large torque range and are the best choice for heavy duty loads. Modular combination of custom, high efficiency, high life gear and high allowable axial and radial loads, low operating noise.
The compact drive form ensures high torque transmission. Single or dual input, output shaft ends, easy to change structure, horizontal, vertical and vertical mounting.
High-rigidity cast iron box, hard-toothed gear is made of high-quality alloy steel, the surface is hardened by carburizing and quenching, the grinding teeth are finely processed, the transmission is stable, the noise is low, the bearing capacity is large, the temperature rise is low, and the service life is long.
M series large reducers are widely used in the conveyor systems of building materials, chemical, electric power, metallurgy, food and feed industries; transportation and transportation; wood, paper and environmental protection industries.
Main features of SEW M series high power reducer:
The gear is made of high-quality alloy carburizing and quenching, the tooth surface hardness is up to 60±2hrc, and the tooth surface grinding precision is up to 5-6.
Using computer shaping technology to pre-reform the gears, greatly improving the load capacity of the reducer
From the cabinet to the internal gear, it adopts a completely modular structure design, suitable for mass production and flexible selection.
The standard reducer models are divided according to the torque decrement form, which is more in line with the customer requirements and avoids power waste compared with the traditional equal-scale division.
Designed and manufactured with cad/cam to ensure quality stability
A variety of sealing structures to prevent oil leakage
Multi-directional noise reduction measures to ensure excellent low noise performance of the gearbox
Product installation is flexible and easy to use
The SEW M series high power reducer is in stark contrast to other products:
Modular design, wide transmission range and fine distribution
12-frame specifications from 37-187, transmission power range 0.12KW-200KW
Shape design for all-round universal installation configuration
The transmission is more accurate, the range covers 5.31-79.86, and can be arbitrarily selected according to needs.
The gear is ground by a high-precision gear grinding machine with balanced transmission, low noise and 98% efficiency between stages.
Gearbox specially designed for special low-speed occasions, the transmission ratio is extended to 32625
Gear: 20rMo steel, carbon and nitrogen co-seepage treatment (remaining tooth surface hardness HRC60 after hard grinding, hard layer thickness >0.5mm)
SEW M series high power reducer model:
M3PST50 M3PST60 M3PST70 M3PST80 M3PST90
M3RHF50 M3RHF60 M3RHF70 M3RHF80 M3RHF90
M3RHT50 M3RHT60 M3RHT70 M3RHT80 M3RHT90
M3RST50 M3RST60 M3RST70 M3RST80 M3RST90
M3RSF50 M3RSF60 M3RSF70 M3RSF80 M3RSF90
M3PHT50 M3PHT60 M3PHT70 M3PHT80 M3PHT90
M4PSF90 M5PSF60 M5PSF70 M5PSF80 M5PSF90
M4PST50 M4PST60 M4PST70 M4PST80 M4PST90
M4PHT50 M4PHT60 M4PHT70 M4PHT80 M4PHT90
M5RSF50 M5RSF60 M5RSF70 M5RSF80 M5RSF90
M5RHT50 M5RHT60 M5RHT70 M5RHT80 M5RHT90
M5PHF50 M5PHF60 M5PHF70 M5PHF80 M5PHF90
M3PVSF50 M3PVSF60 M3PVSF70 M3PVSF80 M3PVSF90
M3RVSF50 M3RVSF60 M3RVSF70 M3RVSF80 M3RVSF90
M5RVSF50 M5RVSF60 M5RVSF70 M5RVSF80 M5RVSF90
1C80N 1C100N 1C125N 1C160N 1C200N 1C225N 1C250N 1C355N 1C400N 1C450N 1C500N
2C140N 2C160N 2C180N 2C200N 2C225N 2C250N 2C280N 2C315N 2C355N 2C400N
2KC125N 2KC140N 2KC160N 2KC180N 2KC220N 2KC225N 2KC250N 2KC280N 2KC320N
3C140N 3C160N 3C180N 3C200N 3C225N 3C250N 3C280N 3C315N 3C355N 3C400N
3KC140N 3KC160N 3KC180N 3KC200N 3KC225N 3KC250N 3KC280N 3KC315N 3KC355N 2KC360N 2KC400N 2KC450N
2PC125N 2PC160N 2PC200N 2PC225N 2PC250N 2PC280N 2PC315N 2PC355N 2PC400N
3PC125N 3PC160N 3PC200N 3PC225N 3PC250N 3PC280N 3PC315N 3PC355N 3PC400N
4PC125N 4PC160N 4PC200N 4PC225N 4PC250N 4PC280N 4PC315N 4PC355N 4PC400
Germany Saiwei SEW geared motor, Saiwei SEW industrial gearbox reducer, Saiwei SEW industrial gear reducer, Saiwei SEW gear reducer, Saiwei SEW industrial gearbox reducer reducer, Saiwei SEW helical gear reduction Machine, Saiwei SEW helical gear reducer, Saiwei SEW helical gear worm reducer, Saiwei SEW aluminum alloy worm gear reducer
SEW M series high power reducer reduction ratio range:
M high power hard surface reducer M2PV nominal speed ratio: 6.37.1 8 9 10 11.2 12.5 14 16 18
M high power hard surface reducer M3PV nominal speed ratio: 20 22.5 25 28 31.5 35.5 40 45 50 56 63 71 80 90
M high power hardened gear reducer M4PV nominal speed ratio: 100 112 125 140 160 180 200 225 250 280 315 355 400
M power Hardened reducer M3RV nominal ratio: 141 620 25 28 22.5 31.5 35.5 40455056637180
M high power hard surface reducer M4RV nominal speed ratio: 90 100 112 125 140 160 180 200 225 250 280 315
M power Hardened reducer M4RV nominal ratio: 355 400 450,500,560,630,710 80,090,010,001,120 1,250,140,016,001,800
SEW M series high power reducer structure:
M2PV/M3PV/M4PV: P-horizontal installation PV-vertical installation S-solid shaft F-bottom angle H-hollow shaft T-torque arm D-hollow shaft locking disc
M3RV/M4RV/M5RV: R-horizontal installation RV-vertical installation S-solid shaft F-bottom angle H-hollow shaft T-torque arm D-hollow shaft locking disc
