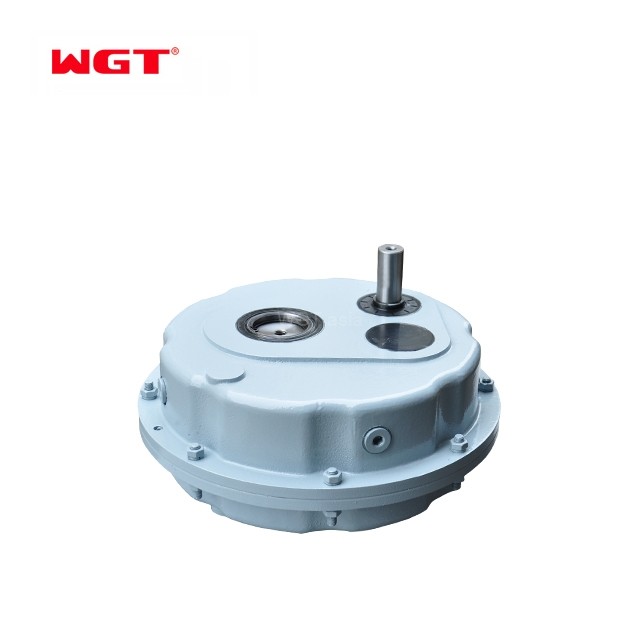

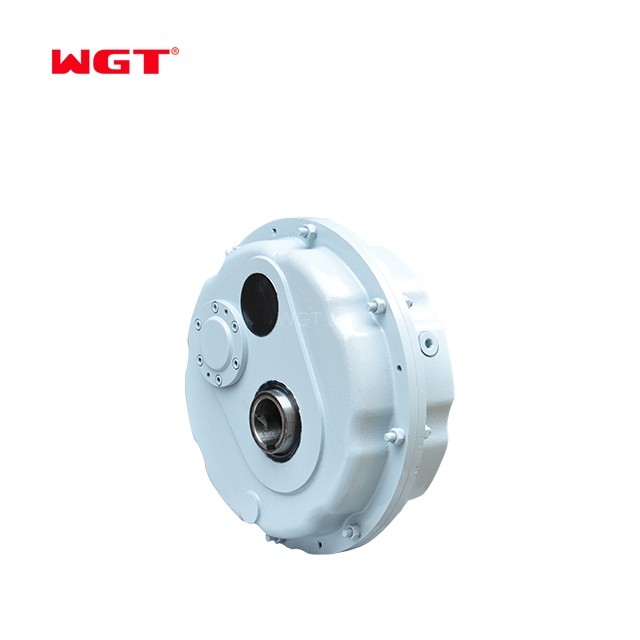

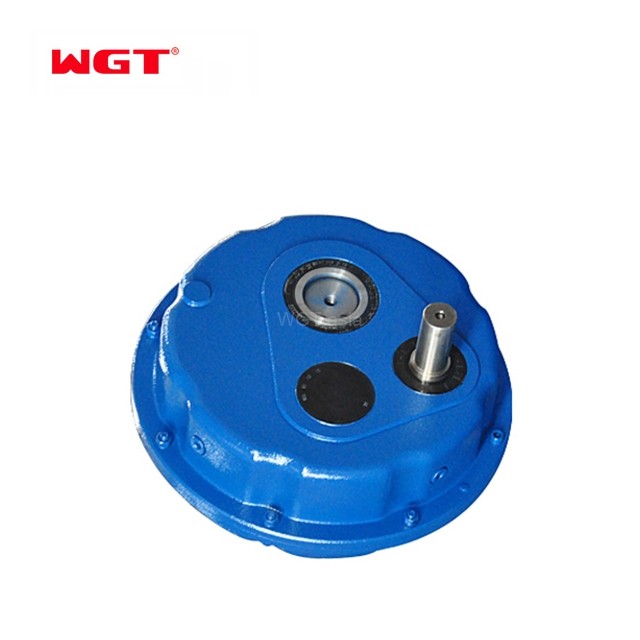

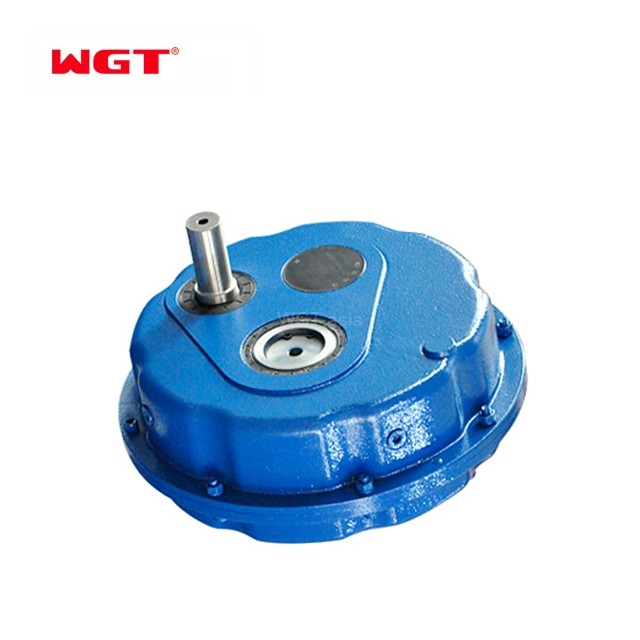

RXG60 SMR shaft mounted gear speed gearbox

RXG60 SMR shaft mounted gear speed gearbox

Product Item：RXG60

FOB Reference price：$150~$1500

Minimum order quantity：10Piece

Payment method：T/T

Packing：Standard export plywood case

Port：NINGBO/SHANGHAI PORT

Warranty：one year

Brand Name：WGT

Place of Origin：Zhejiang, China

View online catalog

Category：RXG Shaft Mounted Gear Reducer

Description

Guide

Selection

Model

Dimension

Note

The RXG Series has long has long been established as a best seller for quarry and mine applications where absolute reliability and low maintenance are key factors. Another winning factor is the backstop option that prevents back driving in the case of inclined conveyors. This gearbox can be completed by selecting from a wide range of electric motors entirely manufactured by weigao

Electronic Catalog PDF Catalog

Redsun RXG Series Shaft Mounted Hanging Gear Speed Reducer
Type	Ratio	Model	Standard bore (mm)	Rated power(KW)	Rated torque(N.m)
RXG series	5 7 10 12.5 15 20 25 31	RXG30	30	3	180
		RXG35	35	5.5	420
		RXG40	40,45	15	950
		RXG45	45,50,55	22.5	1400
		RXG50	50,55,60	37	2300
		RXG60	60,65,70	55	3600
		RXG70	70,85	78	5100
		RXG80	80,100	110	7000


Quick Details
Applicable Industries:Manufacturing Plant, Food & Beverage Factory, Energy & Mining
Gearing Arrangement:Helical
Output Torque:up to 17000KN.m
Input Speed:up to 2000rpm
Output Speed:up to 400rpm
Place of Origin:Zhejiang, China
Brand Name:WGT
Product name:shaft mounted reducer
Color:Grey RAL7031/7040,blue RAL5010
Warranty:1 Year
Application:Food ,Plastic, Convery, Machinery, Feed, Mining and so on
Certificate:ISO9001 , CE
Mounting Position:Horizontal (Foot Mounted, Shaft Mounted)
Packing:Wooden Box
Ratio:5.36~197.37
Bearing:C&U, NAK, NSK,SKF
OEM service: OEM service

Weigao Product Series Simple Manual

RXG30,RXG35,RXG40,RXG45,RXG50,RXG60,RXG70,RXG80,RXG100,RXG125
