TP type flat envelope toroidal worm reducer product introduction and marking
The TP plane enveloping toroidal worm reducer (JB/T9051-1991) is a planar primary enveloping worm drive. Center distance: 100, 125, 160, 200, 250, 315, 400, 500. Speed ratio: 10, 12.5, 16, 20, 25, 31.5, 40, 50, 60. The planar envelope toroidal worm reducer is an emerging transmission device with large carrying capacity, high transmission efficiency, compact and reasonable structure. This type of reducer can be widely used in various transmission machinery, such as metallurgy, minerals, lifting, chemical, construction, rubber, shipbuilding and other mechanical equipment, suitable for working environment temperature of -40 ° C ~ +40 ° C, the input shaft speed is not more than 1500 rev / min, the worm shaft can rotate in both directions. This reducer is designed and manufactured according to the People's Republic of China machinery industry standard JB/T9051 - 1999 "flat envelope toroidal worm reducer".
Model and tag example
Tag example
Example The worm is below the worm gear, the center distance is 200mm, the nominal transmission ratio is 10, the second type of assembly, the fan-cooled plane envelope toroidal worm reducer: reducer TPU200 - 10 - 2F JB/T 9051-1999

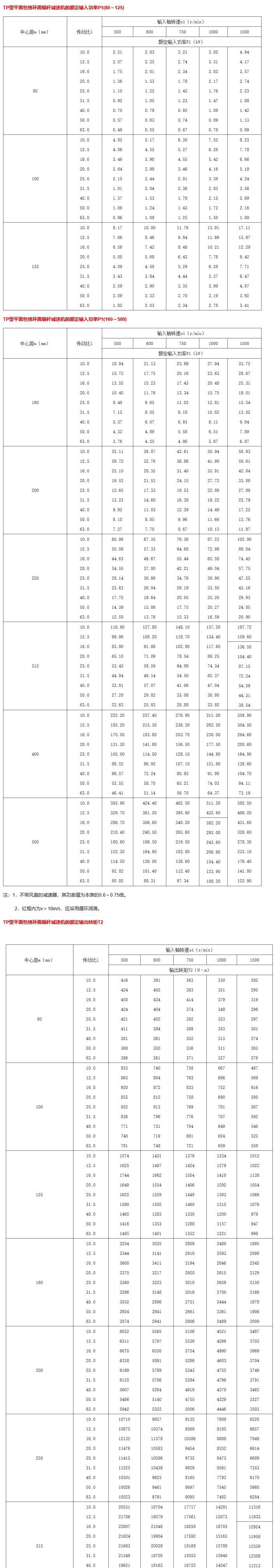

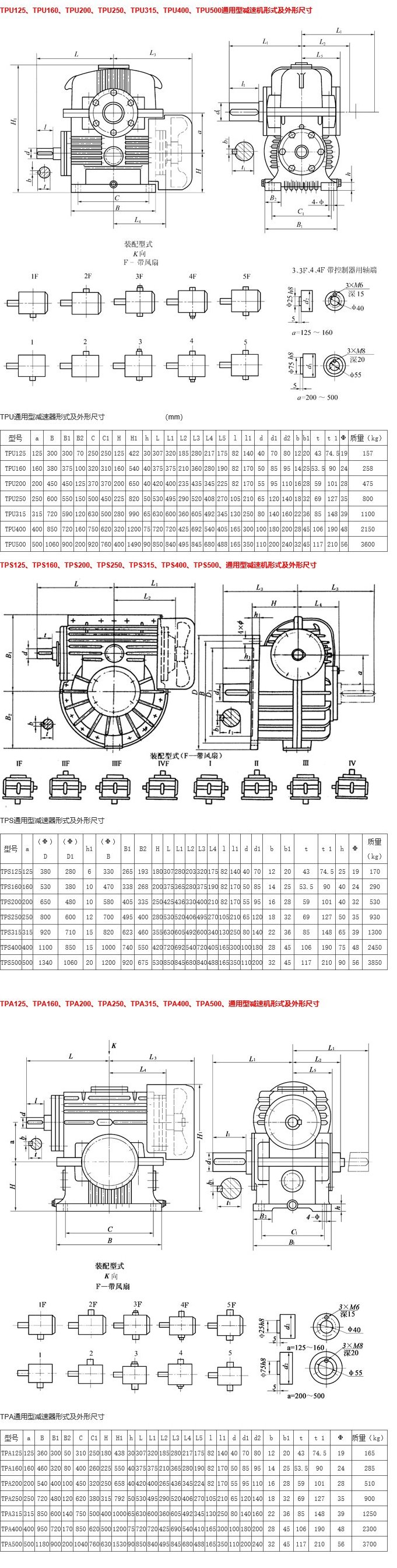

Basic parameters of TP plane enveloping toroidal worm reducer
