Three-leaf propeller

  • Category:Old website product data
  • Inquiry Send Email
    Description

    The company manufactures nearly 30 types of over 140 agitators, ranging from the most common (including the existing HB5 standard, SB90 standard agitators) to a variety of complex shapes or special purpose agitators. According to H/ t2123-91 standard various specifications of the series of manufacturing, or according to the production process requirements of users, design and manufacture of agitator for a v

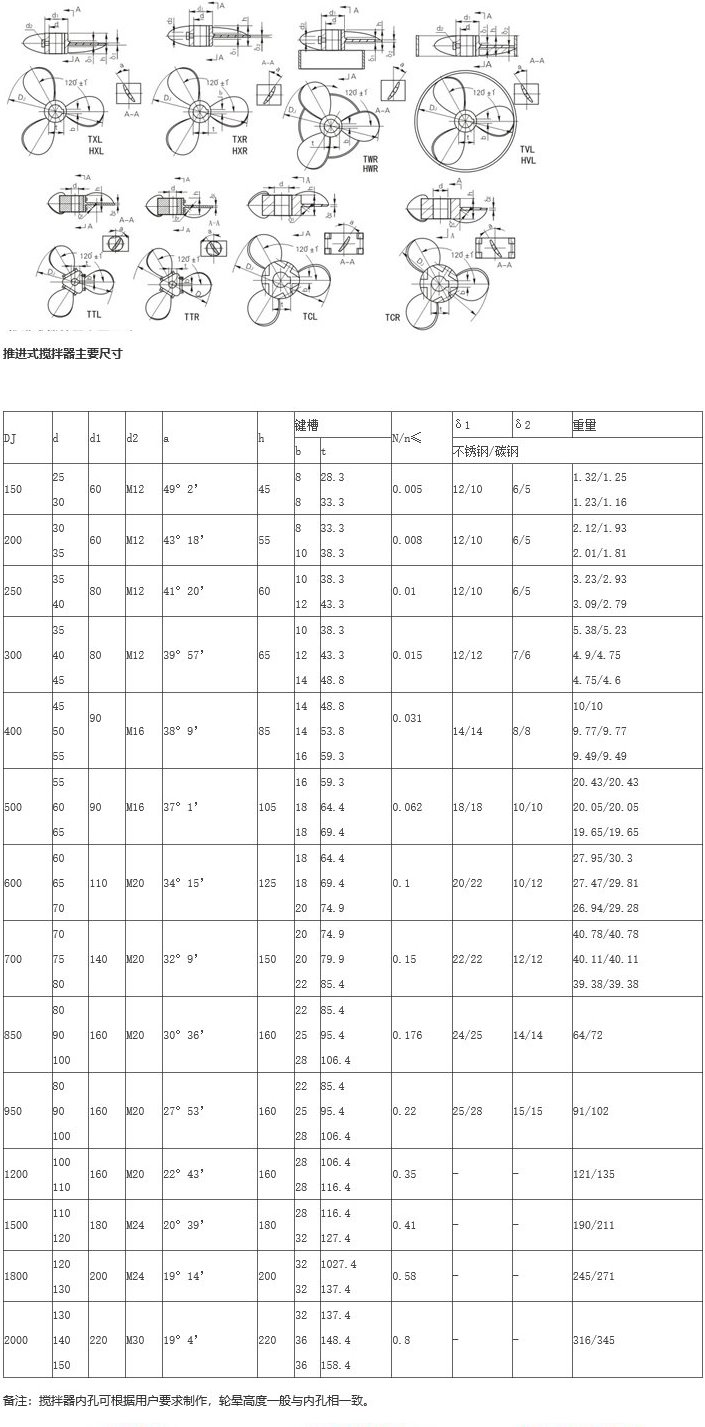

    Three-leaf propeller

    Trefoil left-handed push type-TXL, three-leaf right-handed push type-TXR, three-leaf left-handed stable ring push type-TWL, three-leaf right-handed stable ring push type-TWR, three-leaf left-handed guide tube push type-TVL, three Leaf right-handed guide tube propulsion-TVR, three-blade welding left-handed propulsion-HXL, three-blade welding right-handed propulsion-HXR, three-blade welding left-handed stable ring propulsion-HWL, three-blade welding right-handed stable ring propulsion -HWR, three-blade welding left-handed guide tube propulsion-HVL, three-blade welding right-handed guide tube propulsion-HVR, three-leaf adjustable left-propulsion-TTL, three-leaf adjustable right-handed propulsion-TTR, three Leaf detachable left-handed push-TCL, three-leaf detachable right-handed push-TCR

    The three-leaf propulsion type is the most typical axial flow agitator, with high liquid discharge capacity and low shear performance. The baffle or the guide tube has a stronger axial circulation, and the discharge performance is obviously improved because of its high cycle capacity and power. It has low consumption, and can be used in low viscosity, large volume homogeneous phase and mixing process. It is widely used in low viscosity liquid heat transfer, reaction, suspension and dissolution of solid-liquid ratio. The adjustable propeller blades can be rotated by ±15° to adjust the inclination and play a large role in the experimental process. The detachable propeller-type paddle wheel is divided into three debates and is easy to assemble, and is used in occasions where it is required to be broken into small pieces. Common medium, μ<2000cP, common running speed n=10-500rpm, v=3-15m/s, maximum speed up to 1750rpm, common specification S/DJ=1 or 2, DJ/D=0.2-0.5 surface required polishing The welding type must be selected for the treatment.

    ariety of special requirements, special specifications or special USES.image.png
