ZLYJ GEAR REDUCER
Electronic Catalog
PDF Catalog

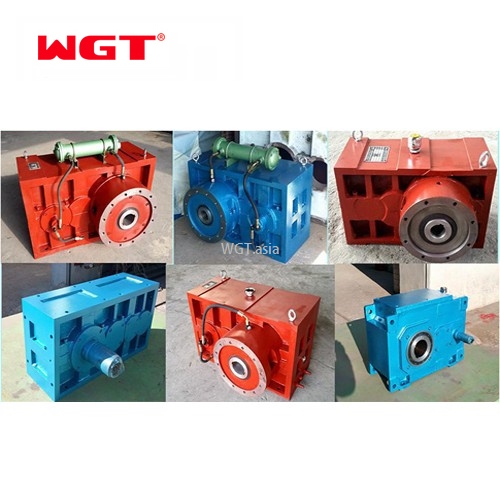

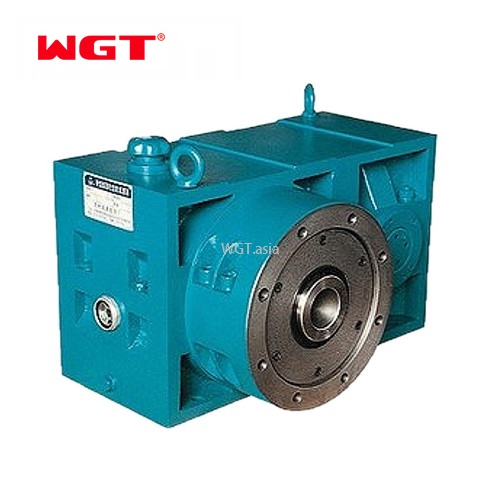

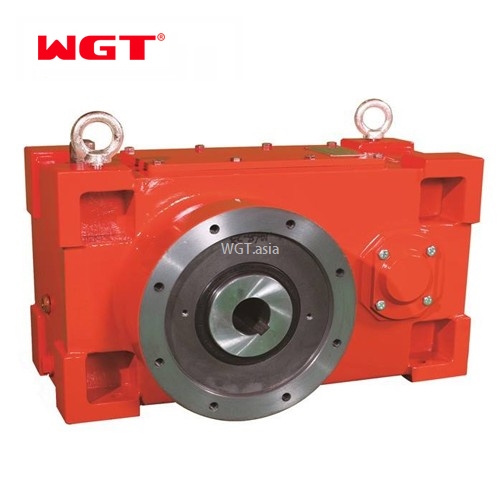

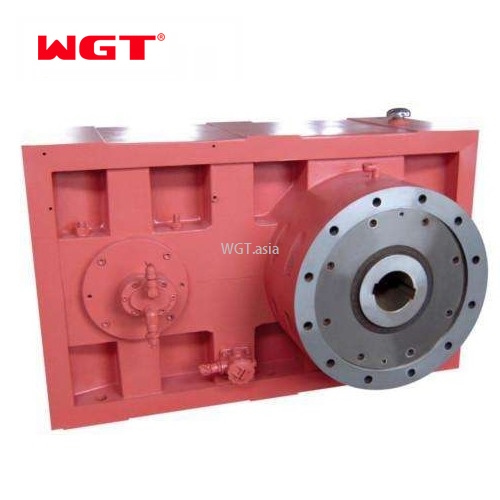

ZLYJ series reducer is a high-precision hard tooth surface with thrust seat designed for the plastic screw extruder. The product design adopts the technical scope specified by JB / T8853-2001, which is characterized by gears and shafts. The parts are made of high-strength alloy steel, the gears are processed by carburizing, quenching, and gear grinding. The gear precision is GB10095-88, level 6, the tooth surface hardness is HRC54-62, and the oversize thrust bearings are arranged at the front end of the hollow output shaft To withstand the working recoil of the screw, the main standard parts such as bearings and oil seals are made of domestic high-quality products, and imported products can also be equipped according to user needs. The whole machine has the characteristics of small size, high carrying capacity, smooth transmission, low noise and high efficiency. The product performance has reached the international advanced level and can replace the same type of imported products.
Product models are: ZLYJ112 / ZLYJ112 / ZLYJ133 / ZLYJ146 / ZLYJ173 / ZLYJ200 / ZLYJ225 / ZLYJ250 / ZLYJ280 /
ZLYJ315 / ZLYJ330 / 375 / ZLYJ420 / ZLYJ450 / ZLYJ630 / ZSYJ450 / ZSYJ560 / ZSYJ630
ZLY Hardened Tooth Surface Gearbox has the following models:
ZLY112 ZLY125 ZLY140 ZLY160 ZLY180 ZLY200 ZLY224 ZLY250 ZLY280 ZLY315 ZLY355 ZLY400 ZLY450 ZLY500 ZLY560 ZLY630 ZLY710
ZLYJ112 ZLYJ133 ZLYJ146 ZLYJ173 ZLYJ180 ZLYJ200 ZLYJ225 ZLYJ250 ZLYJ280 ZLYJ315 ZLYJ330 ZLYJ375 ZLYJ395 ZLYJ420 ZLYJ450 ZLYJ475 ZLYJ560 ZLYJ630
ZSY Hardened Tooth Surface Gearbox has the following models:
ZSY160 ZSY180 ZSY200 ZSY224 ZSY250 ZSY280 ZSY315 ZSY355 ZSY400 ZSY450 ZSY500 ZSY560 ZSY630 ZSY710
ZDY Hardened Tooth Surface Gearbox has the following models:
ZDY80 ZDY100 ZDY125 ZDY160 ZDY200 ZDY250 ZDY280 ZDY315 ZDY355 ZDY400 ZDY450 ZDY500 ZDY560
ZFY Hardened Tooth Surface Gearbox has the following models:
ZFY180 ZFY200 ZFY224 ZFY250 ZFY280 ZFY315 ZFY355 ZFY400 ZFY450 ZFY500 ZFY560 ZFY630 ZFY710
DBY Hardened Tooth Surface Gearbox has the following models:
DBY160 DBY180 DBY200 DBY224 DBY250 DBY280 DBY315 DBY355 DBY400 DBY450 DBY500 DBY560
DCY Hardened Tooth Surface Gearbox has the following models:
DCY160 DCY180 DCY200 DCY224 DCY250 DCY280 DCY315 DCY355 DCY400 DCY450 DCY500 DCY560 DCY630 DCY710 DCY800
DFY Hardened Tooth Surface Gearbox has the following models:
DFY160 DFY180 DFY200 DFY224 DFY250 DFY280 DFY315 DFY355 DFY400 DFY450 DFY500 DFY560 DFY630 DFY710 DFY800
ZLY112 ZLY125 ZLY140 ZLY160 ZLY180 ZLY200 ZLY224 ZLY250 ZLY280 ZLY315 ZLY355 ZLY400 ZLY450 ZLY500 ZLY560 ZLY630 ZLY710
ZLYJ112 ZLYJ133 ZLYJ146 ZLYJ173 ZLYJ180 ZLYJ200 ZLYJ225 ZLYJ250 ZLYJ280 ZLYJ315 ZLYJ330 ZLYJ375 ZLYJ395 ZLYJ420 ZLYJ450 ZLYJ475 ZLYJ560 ZLYJ630
ZSY Hardened Tooth Surface Gearbox has the following models:
ZSY160 ZSY180 ZSY200 ZSY224 ZSY250 ZSY280 ZSY315 ZSY355 ZSY400 ZSY450 ZSY500 ZSY560 ZSY630 ZSY710
ZDY Hardened Tooth Surface Gearbox has the following models:
ZDY80 ZDY100 ZDY125 ZDY160 ZDY200 ZDY250 ZDY280 ZDY315 ZDY355 ZDY400 ZDY450 ZDY500 ZDY560
ZFY Hardened Tooth Surface Gearbox has the following models:
ZFY180 ZFY200 ZFY224 ZFY250 ZFY280 ZFY315 ZFY355 ZFY400 ZFY450 ZFY500 ZFY560 ZFY630 ZFY710
DBY Hardened Tooth Surface Gearbox has the following models:
DBY160 DBY180 DBY200 DBY224 DBY250 DBY280 DBY315 DBY355 DBY400 DBY450 DBY500 DBY560
DCY Hardened Tooth Surface Gearbox has the following models:
DCY160 DCY180 DCY200 DCY224 DCY250 DCY280 DCY315 DCY355 DCY400 DCY450 DCY500 DCY560 DCY630 DCY710 DCY800
DFY Hardened Tooth Surface Gearbox has the following models:
DFY160 DFY180 DFY200 DFY224 DFY250 DFY280 DFY315 DFY355 DFY400 DFY450 DFY500 DFY560 DFY630 DFY710 DFY800
