X /B Series planetary gearbox cycloidal pin wheel reducer gearbox for Concrete Mixer drive power transmission reducer for mixer X /B Series planetary gearbox cycloidal pin wheel reducer gearbox for Concrete Mixer drive power transmission reducer for mixer X /B Series planetary gearbox cycloidal pin wheel reducer gearbox for Concrete Mixer drive power transmission reducer for mixer X /B Series planetary gearbox cycloidal pin wheel reducer gearbox for Concrete Mixer drive power transmission reducer for mixer

X /B Series planetary gearbox cycloidal pin wheel reducer gearbox for Concrete Mixer drive power transmission reducer for mixer

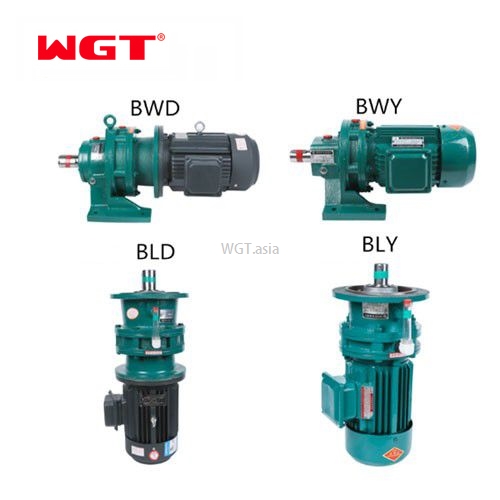

  • Product Item:BL,BW,BLD,BWD,XL,XW,XLD,XWD
  • FOB Reference price:$500~$5000
  • Minimum order quantity:10Piece
  • Customized logo:50Piece
  • Payment method:T/T
  • Supply capacity:30day(3000Piece)
  • Delivery time:3 day (1 - 100 Piece)
  • Packing:Standard export plywood case
  • Port:NINGBO/SHANGHAI PORT
  • Warranty:one year
  • Brand Name:WGT
  • Place of Origin:Zhejiang, China
  • View online Catalog
  • Category:B/X Cycloid reducer(BLD,BWD,XLD,XWD)
  • bevel gearbox
    Inquiry Send Email PDF
    Description
    Guide
    Model

    .BOOK.pngElectronic Catalog BOOK5.pngPDF Catalog

    BL,BW,BLD,BWD,XL,XW,XLD,XWD series Cycloidal Gear Reducer

    Cycloidal gear drives are unique and are still unsurpassed where drive technology is concerned. The cycloidal speed reducer is superior to traditional gear mechanisms, since it only operates with rolling force and is not exposed to shear forces. By comparison with gears with contact loads, Cyclo drives are more resistant

    and can absorb extreme shock loads by means of uniform load distribution over the power transmitting

    components. Cyclo drives and cyclo drive geared motors are characterized by their reliability, long service life

    and outstanding efficiency, even under difficult conditions.

    Characteristic

    Premier in-line drives as both a reducer and gearmotor

    Quiet, efficient and reliable operation with high torque density and compact sizes

    Interchangeable cast iron housings in foot, flanged or face mount configurations

    Available free-shaft, quill hollow shaft, C-face adaptors, shovel base, and top-mount inputs

    Mininimal vibration, low noise, low backlash and extended operational life

    product description Main application industries

    Features

    -High standard modular design

    -High-quality materials ensure product reliability

    -High strength, compact size

    -long lasting

    - high efficiency

    -Strong radial load capacity

    -High cost performance

    -Belt conveyor drive

    -Bucket elevator

    -Agitator driver

    -Hoisting gear drive

    -Walking gear transmission

    -Paper machine driver

    -Dryer driver

    -Water screw driver

    model
    power
    Speed ratio
    Maximum torque

    Output shaft diameter

    Input shaft diameter

    1 stage
    X2 (B0 / B12)
    0.37 ~ 1.5
    9 ~ 87
    150
    Φ25 (Φ30)
    Φ15
    X3 (B1 / B15)
    0.55 ~ 2.2
    9 ~ 87
    250
    Φ35
    Φ18
    X4 (B2 / B18)
    0.75 ~ 4.0
    9 ~ 87
    500
    Φ45
    Φ22
    X5 (B3 / B22)
    1.5 ~ 7.5
    9 ~ 87
    1,000
    Φ55
    Φ30
    X6 (B4 / B27)
    2.2 ~ 11
    9 ~ 87
    2,000
    Φ65 (Φ70)
    Φ35
    X7
    3.0 ~ 11
    9 ~ 87
    2,700
    Φ80
    Φ40
    X8 (B5 / B33)
    5.5 ~ 18.5
    9 ~ 87
    4,500
    Φ90
    Φ45
    X9 (B6 / B39)
    7.5 ~ 30
    9 ~ 87
    7,100
    Φ100
    Φ50
    X10 (B7 / B45)
    15 ~ 45
    9 ~ 87
    12,000
    Φ110
    Φ55
    X11 (B8 / B55)
    18.5 ~ 55
    9 ~ 87
    20,000
    Φ130
    Φ70
    2 stages
    X32 (B10)
    0.25 ~ 0.55
    121 ~ 1849
    -
    Φ35
    Φ15
    X42 (B20 / B1812)
    0.37 ~ 0.75
    121 ~ 1849
    -
    Φ45
    Φ15
    X53 (B31 / B2215)
    0.55 ~ 1.5
    121 ~ 1849
    -
    Φ55
    Φ18
    X63 (B41 / B2715)
    0.75 ~ 2.2
    121 ~ 1849
    -
    Φ65 (Φ70)
    Φ18
    X64 (B42 / B2718)
    0.75 ~ 2.2
    121 ~ 1849
    -
    Φ65 (Φ70)
    Φ22
    X74
    1.1 ~ 3.0
    121 ~ 1849
    -
    Φ80
    Φ22
    X84 (B52 / B3318)
    1.5 ~ 4.0
    121 ~ 1849
    -
    Φ90
    Φ22
    X85 (B53 / B3322)
    2.2 ~ 5.5
    121 ~ 1849
    -
    Φ90
    Φ30
    X95 (B63 / B3922)
    3.0 ~ 7.5
    121 ~ 1849
    -
    Φ100
    Φ30
    X106
    4.0 ~ 11
    121 ~ 1849
    -
    Φ110
    Φ35



    Parameter A.jpg


    LVKTF04Y5PEVY% DXV

    product name: B / X series cycloid reducer
    colour: Blue, silver or customized
    material: Bearing steel
    Heat treatment: Quenching
    Shell material HT200
    Bearing material: SKF
    certificate: ROHS, IS09001
    package: Standard export packaging (cotton blanket + wooden box)
    Guarantee: 1 year


    application:

    Metallurgy, coal / mining industry. Cement, chemical industry, energy, electricity

    Electricity, paper industry, sugar industry, port, lifting and construction

    Machinery, rubber / plastic

    Type / Model

    X2, X3, X4, X5, X6, X7, X9, X9, X10, X11, XE31, XE42, XE53, XE63, XE64, XE74, XE84, XE85, XE95, XE106, XE117

    B0, B1, B2, B3, B4, B5, B6, B7, B8, B10, B21, B31, B41, B42, B52, B53, B63, B74, B85

    JXJ0, JXJ1, JXJ2, JXJ3, JXJ4, JXJ5, JXJ6, JXJ7, JXJ8, JXJE10, JXJE21

    B12, B15, B18, B22, B27, B33, B39, B45, B55, B1812, B2215, B2715, B2718, B3318, B3322, B3922, B5527

    XWY5.5-5-23, BLED63-289-1.5, XWED3-85-187-YB-B3, XWD4-5-29, xled1.5-63-187,

    BWY3-43-2.2, BLEY53-391-1.5, JXJ (L) 4-43-5.5, JXJE (L) 53-385-2.2


    00-BX-cycloid-reducer.pdf
    BOOK.pngElectronic Catalog BOOK5.pngPDF Catalog
    BX cycloid series Price USD.pdf
    USD account information.pdf

    BX cycloid reducer has the following models:
    B0(X2)120  B1(X3)150  B2(X4)180  B3(X5)220  B4(X6)270  B5(X8)330
    B6(X9)390  B7(X10)450  B8(X11)550  B9(X12)650

    BL0(X2)120  BL0(XL2)120  BL0(XW2)120  BL0(XLD2)120  BL0(XWD2)120
    BW0(X2)120  BW0(XL2)120  BW0(XW2)120  BW0(XLD2)120  BW0(XWD2)120
    BLD0(X2)120  BLD0(XL2)120  BLD0(XW2)120  BLD0(XLD2)120  BLD0(XWD2)120
    BWD0(X2)120  BWD0(XL2)120  BWD0(XW2)120  BWD0(XLD2)120  BWD0(XWD2)120

    BL1(X3)150  BL1(XL3)150  BL1(XW3)150  BL1(XLD3)150  BL1(XWD3)150
    BW1(X3)150  BW1(XL3)150  BW1(XW3)150  BW1(XLD3)150  BW1(XWD3)150
    BLD1(X3)150  BLD1(XL3)150  BLD1(XW3)150  BLD1(XLD3)150  BLD1(XWD3)150
    BWD1(X3)150  BWD1(XL3)150  BWD1(XW3)150  BWD1(XLD3)150  BWD1(XWD3)150

    BL2(X4)180  BL2(XL4)180  BL2(XW4)180  BL2(XLD4)180  BL2(XWD4)180
    BW2(X4)180  BW2(XL4)180  BW2(XW4)180  BW2(XLD4)180  BW2(XWD4)180
    BLD2(X4)180  BLD2(XL4)180  BLD2(XW4)180  BLD2(XLD4)180  BLD2(XWD4)180
    BWD2(X4)180  BWD2(XL4)180  BWD2(XW4)180  BWD2(XLD4)180  BWD2(XWD4)180

    BL3(X5)220  BL3(XL5)220  BL3(XW5)220  BL3(XLD5)220  BL3(XWD5)220
    BW3(X5)220  BW3(XL5)220  BW3(XW5)220  BW3(XLD5)220  BW3(XWD5)220
    BLD3(X5)220  BLD3(XL5)220  BLD3(XW5)220  BLD3(XLD5)220  BLD3(XWD5)220
    BWD3(X5)220  BWD3(XL5)220  BWD3(XW5)220  BWD3(XLD5)220  BWD3(XWD5)220

    BL4(X6)270  BL4(XL6)270  BL4(XW6)270  BL4(XLD6)270  BL4(XWD6)270
    BW4(X6)270  BW4(XL6)270  BW4(XW6)270  BW4(XLD6)270  BW4(XWD6)270
    BLD4(X6)270  BLD4(XL6)270  BLD4(XW6)270  BLD4(XLD6)270  BLD4(XWD6)270
    BWD4(X6)270  BWD4(XL6)270  BWD4(XW6)270  BWD4(XLD6)270  BWD4(XWD6)270

    BL5(X8)330  BL5(XL8)330  BL5(XW8)330  BL5(XLD8)330  BL5(XWD8)330
    BW5(X8)330  BW5(XL8)330  BW5(XW8)330  BW5(XLD8)330  BW5(XWD8)330
    BLD5(X8)330  BLD5(XL8)330  BLD5(XW8)330  BLD5(XLD8)330  BLD5(XWD8)330
    BWD5(X8)330  BWD5(XL8)330  BWD5(XW8)330  BWD5(XLD8)330  BWD5(XWD8)330

    BL6(X9)390  BL6(XL3)390  BL6(XW9)390  BL6(XLD9)390  BL6(XWD9)390
    BW6(X9)390  BL6(XL3)390  BL6(XW9)390  BL6(XLD9)390  BL6(XWD9)390
    BLD6(X9)390  BL6(XL3)390  BL6(XW9)390  BL6(XLD9)390  BL6(XWD9)390
    BWD6(X9)390  BL6(XL3)390  BL6(XW9)390  BL6(XLD9)390  BL6(XWD9)390

    BL7(X10)450  BL7(XL10)450  BL7(XW10)450  BL7(XLD10)450  BL7(XWD10)450
    BW7(X10)450  BW7(XL10)450  BW7(XW10)450  BW7(XLD10)450  BW7(XWD10)450
    BLD7(X10)450  BLD7(XL10)450  BLD7(XW10)450  BLD7(XLD10)450  BLD7(XWD10)450
    BWD7(X10)450  BWD7(XL10)450  BWD7(XW10)450  BWD7(XLD10)450  BWD7(XWD10)450

    BL8(X11)550  BL8(XL11)550  BL8(XW11)550  BL8(XLD11)550  BL8(XWD11)550
    BW8(X11)550  BW8(XL11)550  BW8(XW11)550  BW8(XLD11)550  BW8(XWD11)550
    BLD8(X11)550  BLD8(XL11)550  BLD8(XW11)550  BLD8(XLD11)550  BLD8(XWD11)550
    BWD8(X11)550  BWD8(XL11)550  BWD8(XW11)550  BWD8(XLD11)550  BWD8(XWD11)550

    BL9(X12)650  BL9(XL12)650  BL9(XW12)650  BL9(XLD12)650  BL9(XWD12)650
    BW9(X12)650  BW9(XL12)650  BW9(XW12)650  BW9(XLD12)650  BW9(XWD12)650
    BLD9(X12)650  BLD9(XL12)650  BLD9(XW12)650  BLD9(XLD12)650  BLD9(XWD12)650
    BWD9(X12)650  BWD9(XL12)650  BWD9(XW12)650  BWD9(XLD12)650  BWD9(XWD12)650

    Inquiry Us






    Related Products

    XB Series Cycloidal Pin Wheel Gear Units With AC Motor

    XB Series Cycloidal Pin Wheel Gear Units With AC Motor

    X/B series cyclo gear reducer gearbox motor reductor aluminum gear box for evconvertion kit high frequency gearbox gear

    X/B series cyclo gear reducer gearbox motor reductor aluminum gear box for evconvertion kit high frequency gearbox gear

    China gear reducer x/b series cyclo cycloidal pin wheel reducer motor gearbox conveyor with large torque

    China gear reducer x/b series cyclo cycloidal pin wheel reducer motor gearbox conveyor with large torque

    X/B series pin wheel shaft mounted transcyko shape cycloidal gearbox speed reducer power transmission

    X/B series pin wheel shaft mounted transcyko shape cycloidal gearbox speed reducer power transmission

    BWD Cycloidal Gear Motor Speed Reducer Gearbox Right Angle T Shape Anglgear Gear Box Reducer 1:1 Ratio .21 Hp Inch

    BWD Cycloidal Gear Motor Speed Reducer Gearbox Right Angle T Shape Anglgear Gear Box Reducer 1:1 Ratio .21 Hp Inch

    X/B series cyclo drive jxj cycloidal speed gearbox reducer 1250 ratio gearbox spiral bevel gear box stainless bevel gearbox

    X/B series cyclo drive jxj cycloidal speed gearbox reducer 1250 ratio gearbox spiral bevel gear box stainless bevel gearbox

    Product Categories

    • Product series on page 2
      • SMR Series Shaft Mounted Reducer
      • RXG Shaft Mounted Gear Reducer
      • JDX/MBY series gearbox
      • Wind turbine speed increaser
      • Dongchuan Motor Series
      • Couplings
      • Hand Tools
    • R series helical gear units
    • S series helical worm gear units
    • K series helical bevel gear units
    • F series parallel shaft helical gear units
    • HB series industrial gear units
    • P Series Planetary gear reduction unit
    • WP series worm gearbox
      • WP Single Reducer Ratio(1/10-1/60)
      • WPW Universal Reducer Ratio(1/10-1/60)
      • WPE Double Reducer Ratio(1/100-1/3600)
    • NMRV series aluminum shell reducer
    • B/X Cycloid reducer(BLD,BWD,XLD,XWD)
    • ZQ JZQ SOFT TOOTH FACE GEAR BOX
    • ZSY/ZLY/ZDY/DBY Hardened tooth surface Gearbox
    • T series spiral bevel gear units
    • JWM/SWL series worm screw jacks
    • YHJ series hybrid gear reducer
    • AC Motor
    • Generator series
      • Distinguish by power
      • Volvo generator set
      • Yuchai generator set
      • Perkins generator set
      • Doosan generator set
      • Cummins generator set
      • MTU diesel generator set
      • Cork diesel generator set
      • Weichai Power Generator Set
      • Shangchai Co., Ltd. generator set
      • Shanghai dry energy generating set
      • Weiman Power Series Generator Set
      • Mobile silent series diesel generator set
      • Quiet and low noise series generator set
    • Old website product data
    • Search Classes by Model
      • WH_WHCJ_CW_LCW_SCW_WD_WSJ_WXJ_A_M
      • WP_WPW_WPE
      • Replace_SEW_M_MC_Series Gearbox
      • XWD_BWY_JXJW_XLD_JXJL_BLY_BYY_XWED_BWEY
      • Gear_transfer_case_PUMP_DRIVE
      • R_S_K_F_GEARBOX_REDUCER

    Links

    WGT.asiachinaFourSea

    LatestPost

    • Machining and maintenance of gear parts
      2023-03-03
    • Common problems of worm gear reducer
      2023-03-03
    • Precautions for running-in period of pla
      2023-03-03

    Contact Us

    Facebook
    Twitter
    Google+
    LinkedIn
    Pinterest

    Whatsapp:+8613456789605

    Email:wgt.asia@gmail.com

    Skype:+8613456789605

    Wechat:59201133

    Fax:+8657185023568

    Add: Aojiang Industrial Park, Wenzhou, Zhejiang, China

    Mobile Website

    Copyright © 2013-2023 Hangzhou WeiGao Transmission Machinery Co., Ltd. All Rights Reserved.

    • Skype.
    • E-mail
    • Whatsapp
    • Inquiry
    Inquiry Us Now !
    Inquiry Us Now !
