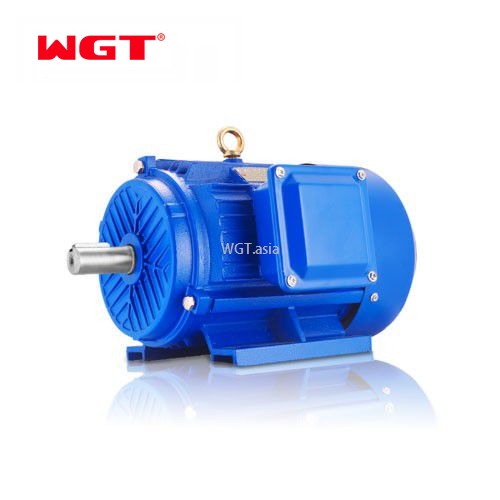

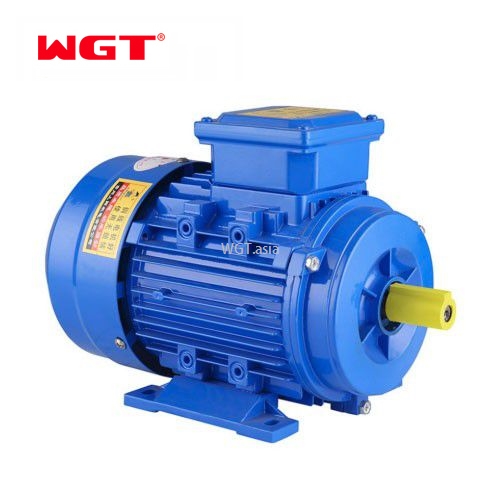

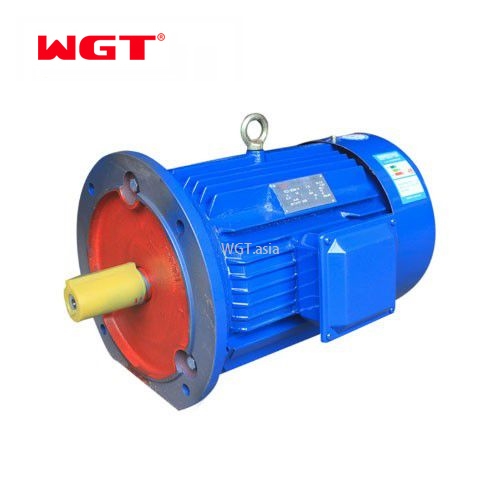

YEJ Series Copper wire winding 3 phase 4hp electric motor

Product Item:YEJ Series Copper wire winding 3 phase 4hp electri

FOB Reference price：$30~$3000

Minimum order quantity：10Piece

Customized logo：50Piece

Payment method：T/T

Supply capacity：30day（3000Piece）

Delivery time：3 day (1 - 100 Piece)

Packing：Standard export plywood case

Port：NINGBO/SHANGHAI PORT

Warranty：one year

Brand Name：WGT

Place of Origin：Zhejiang, China

View online Catalog

Category：AC Motor

Description

Guide

Selection

Model

Electronic Catalog PDF Catalog

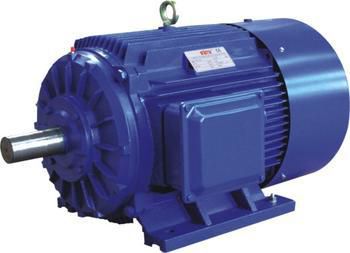

YE2 SERIES ASYNCHRONOUS MOTOR 3 phase motor

1. High quality cold-rolled silicon steel sheet, national standard copper wire, low temperature rise, environmental protection and durability.

2. Fine steel rotor, intelligent processing

3. Chinese famous brand, human-oriented bearing

4. It is widely used in general occasions without inflammable, explosive or corrosive gases and in machinery and equipment without special needs, such as metal cutting machines, pumps, fans, transport machinery, agitators, agricultural machinery and food machinery.

Ambient temperature: -15 degrees centigrade ~40 degrees centigrade

Altitude: not more than 1000 meters

Voltage:220/380V 380/660V 230/400V 400/690V 440V

Rated power: 50HZ, 60HZ

Connection: the rated power is 3KW and the following motor is Y connected. The rated power is 4KW and the motor is triangular connection.

Working system: continuous working system (S1)

Protection grade: IP54/IP55

Insulation grade: F grade

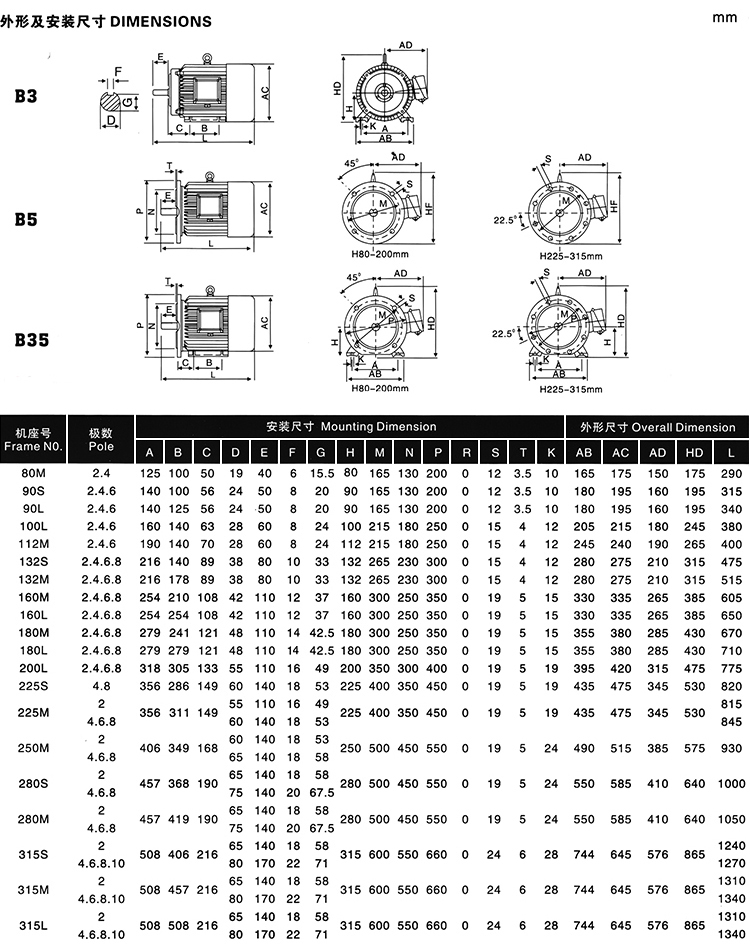

Center height of the seat: 80mm-400mm

Product weight: 70Kg-700Kg

Electronic Catalog	PDF Catalog
Motor series Price USD.pdf	USD account information.pdf

Y2 series reducer has the following models:
Y2-631-4-0.12KW Y2-632-4-0.18KW Y2-711-4-0.25KW Y2-712-4-0.37KW Y2-801-4-0.55KW Y2-802-4-0.75KW Y2-90S-4-1.1KW Y2-90L-4-1.5KW Y2-100L1-4-2.2KW Y2-100L2-4-3KW Y2-112M-4-4KW Y2-132S-4-5.5KW Y2-132M-4-7.5KW Y2-160M-4-11KW Y2-160L-4-15KW Y2-180M-4-18.5KW Y2-180L-4-22KW Y2- 200L-4-30KW Y2-225S-4-37KW Y2-225M-4-45KW Y2-250M-4-55KW Y2-280S-4-75KW Y2-280M-4-90KW

YVP series reducer has the following models:
YVP-631-4-0.12KW YVP-632-4-0.18KW YVP-711-4-0.25KW YVP-712-4-0.37KW YVP-801-4-0.55KW YVP-802-4-0.75KW YVP-90S-4-1.1KW YVP-90L-4-1.5KW YVP-100L1-4-2.2KW YVP-100L2-4-3KW YVP-112M-4-4KW YVP-132S-4-5.5KW YVP-132M-4-7.5KW YVP-160M-4-11KW YVP-160L-4-15KW YVP-180M-4-18.5KW YVP-180L-4-22KW YVP-200L-4-30KW YVP-225S-4-37KW YVP-225M-4-45KW YVP-250M-4-55KW YVP-280S-4-75KW YVP-280M-4-90KW

YEJ series reducer has the following models:
YEJ-631-4-0.12KW YEJ-632-4-0.18KW YEJ-711-4-0.25KW YEJ-712-4-0.37KW YEJ-801-4-0.55KW YEJ-802-4-0.75KW YEJ-90S-4-1.1KW YEJ-90L-4-1.5KW YEJ-100L1-4-2.2KW YEJ-100L2-4-3KW YEJ-112M-4-4KW YEJ-132S-4-5.5KW YEJ-132M-4-7.5KW YEJ-160M-4-11KW YEJ-160L-4-15KW YEJ-180M-4-18.5KW YEJ-180L-4-22KW YEJ-200L-4-30KW YEJ-225S-4-37KW YEJ-225M-4-45KW YEJ-250M-4-55KW YEJ-280S-4-75KW YEJ-280M-4-90KW

YVPEJ series reducer has the following models:
YVPEJ-631-4-0.12KW YVPEJ-632-4-0.18KW YVPEJ-711-4-0.25KW YVPEJ-712-4-0.37KW YVPEJ-801-4-0.55KW YVPEJ-802-4-0.75KW YVPEJ-90S-4-1.1KW YVPEJ-90L-4-1.5KW YVPEJ-100L1-4-2.2KW YVPEJ-100L2-4-3KW YVPEJ-112M-4-4KW YVPEJ-132S-4-5.5KW YVPEJ-132M-4-7.5KW YVPEJ-160M-4-11KW YVPEJ-160L-4-15KW YVPEJ-180M-4-18.5KW YVPEJ-180L-4-22KW YVPEJ-200L-4-30KW YVPEJ-225S-4-37KW YVPEJ-225M-4-45KW YVPEJ-250M-4-55KW YVPEJ-280S-4-75KW YVPEJ-280M-4-90KW

YB2 series reducer has the following models:
YB2-631-4-0.12KW YB2-632-4-0.18KW YB2-711-4-0.25KW YB2-712-4-0.37KW YB2-801-4-0.55KW YB2-802-4-0.75KW YB2-90S-4-1.1KW YB2-90L-4-1.5KW YB2-100L1-4-2.2KW YB2-100L2-4-3KW YB2-112M-4-4KW YB2-132S-4-5.5KW YB2-132M-4-7.5KW YB2-160M-4-11KW YB2-160L-4-15KW YB2-180M-4-18.5KW YB2-180L-4-22KW YB2-200L-4-30KW YB2-225S-4-37KW YB2-225M-4-45KW YB2-250M-4-55KW YB2-280S-4-75KW YB2-280M-4-90KW

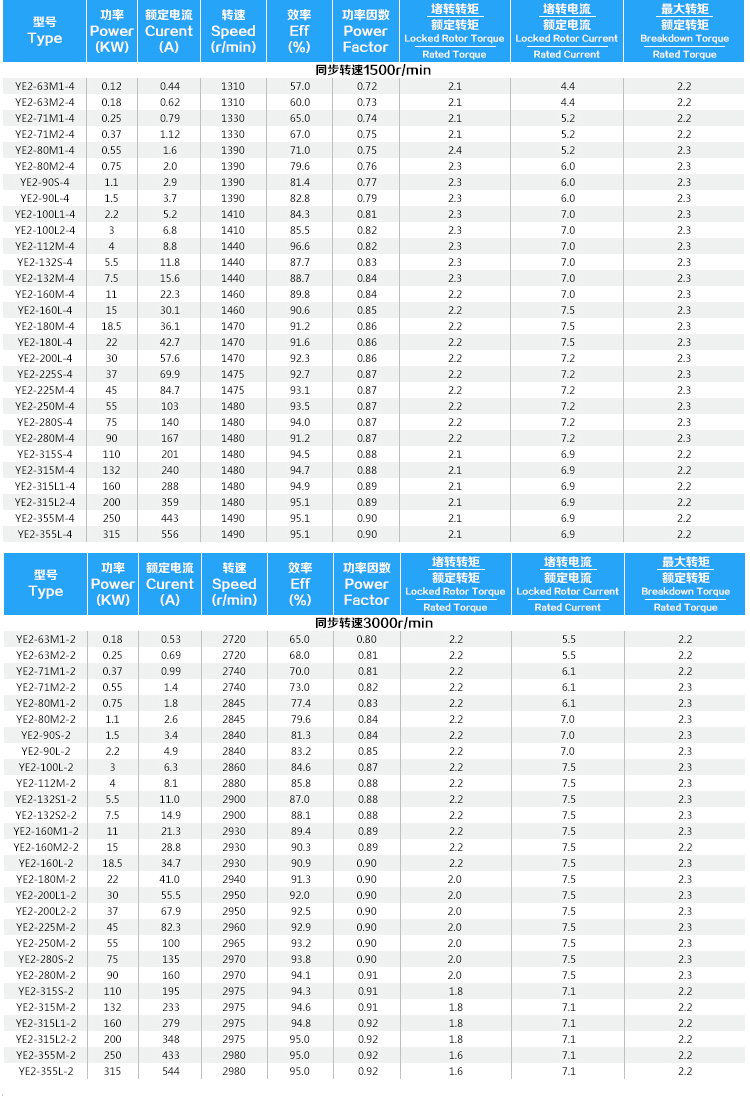

YE2 series reducer has the following models:
YE2-631-4-0.12KW YE2-632-4-0.18KW YE2-711-4-0.25KW YE2-712-4-0.37KW YE2-801-4-0.55KW YE2-802-4-0.75KW YE2-90S-4-1.1KW YE2-90L-4-1.5KW YE2-100L1-4-2.2KW YE2-100L2-4-3KW YE2-112M-4-4KW YE2-132S-4-5.5KW YE2-132M-4-7.5KW YE2-160M-4-11KW YE2-160L-4-15KW YE2-180M-4-18.5KW YE2-180L-4-22KW YE2- 200L-4-30KW YE2-225S-4-37KW YE2-225M-4-45KW YE2-250M-4-55KW YE2-280S-4-75KW YE2-280M-4-90KW

YE3 series reducer has the following models:
YE3-631-4-0.12KW YE3-632-4-0.18KW YE3-711-4-0.25KW YE3-712-4-0.37KW YE3-801-4-0.55KW YE3-802-4-0.75KW YE3-90S-4-1.1KW YE3-90L-4-1.5KW YE3-100L1-4-2.2KW YE3-100L2-4-3KW YE3-112M-4-4KW YE3-132S-4-5.5KW YE3-132M-4-7.5KW YE3-160M-4-11KW YE3-160L-4-15KW YE3-180M-4-18.5KW YE3-180L-4-22KW YE3-200L-4-30KW YE3-225S-4-37KW YE3-225M-4-45KW YE3-250M-4-55KW YE3-280S-4-75KW YE3-280M-4-90KW
