Home Products AC Motor YVP three phase AC motor electric motor

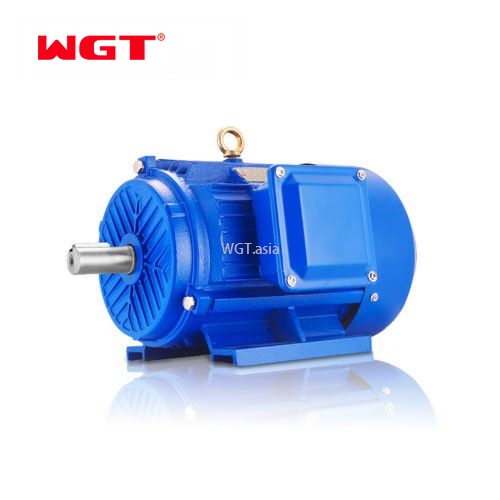

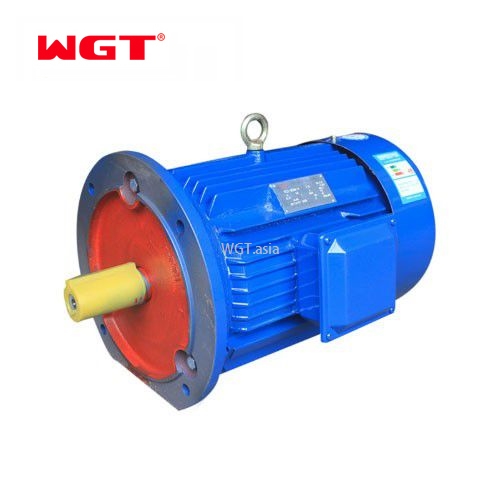

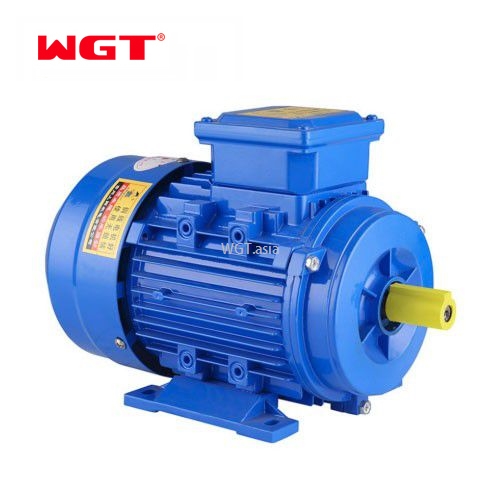

YVP three phase AC motor electric motor for gearbox
  1. YVP three phase AC motor electric motor for gearbox
  2. YVP three phase AC motor electric motor for gearbox
  3. YVP three phase AC motor electric motor for gearbox
  4. YVP three phase AC motor electric motor for gearbox

YVP three phase AC motor electric motor for gearbox

Product Item:YVP three phase AC motor electric motor for gearbo

  • FOB Reference price:$30~$3000
  • Minimum order quantity:10Piece
  • Customized logo:50Piece
  • Payment method:T/T
  • Supply capacity:30day(3000Piece)
  • Delivery time:3 day (1 - 100 Piece)
  • Packing:Standard export plywood case
  • Port:NINGBO/SHANGHAI PORT
  • Warranty:one year
  • Brand Name:WGT
  • Place of Origin:Zhejiang, China
  • View online Catalog
  • Category:AC Motor
  • worm
    Inquiry Email
    Description
    Guide
    Selection
    Model

    BOOK.pngElectronic Catalog BOOK5.pngPDF Catalog

    YE2 SERIES ASYNCHRONOUS MOTOR 3 phase motor

    1. High quality cold-rolled silicon steel sheet, national standard copper wire, low temperature rise, environmental protection and durability.

    2. Fine steel rotor, intelligent processing

    3. Chinese famous brand, human-oriented bearing

    4. It is widely used in general occasions without inflammable, explosive or corrosive gases and in machinery and equipment without special needs, such as metal cutting machines, pumps, fans, transport machinery, agitators, agricultural machinery and food machinery.

    Ambient temperature: -15 degrees centigrade ~40 degrees centigrade

    Altitude: not more than 1000 meters

    Voltage:220/380V 380/660V 230/400V 400/690V 440V

    Rated power: 50HZ, 60HZ

    Connection: the rated power is 3KW and the following motor is Y connected. The rated power is 4KW and the motor is triangular connection.

    Working system: continuous working system (S1)

    Protection grade: IP54/IP55

    Insulation grade: F grade

    Center height of the seat: 80mm-400mm

    Product weight: 70Kg-700Kg



    BOOK.pngElectronic Catalog BOOK5.pngPDF Catalog
    Motor series Price USD.pdf
    USD account information.pdf



    Y2 series reducer has the following models:
    Y2-631-4-0.12KW  Y2-632-4-0.18KW  Y2-711-4-0.25KW  Y2-712-4-0.37KW  Y2-801-4-0.55KW  Y2-802-4-0.75KW  Y2-90S-4-1.1KW  Y2-90L-4-1.5KW  Y2-100L1-4-2.2KW  Y2-100L2-4-3KW  Y2-112M-4-4KW  Y2-132S-4-5.5KW  Y2-132M-4-7.5KW  Y2-160M-4-11KW  Y2-160L-4-15KW  Y2-180M-4-18.5KW  Y2-180L-4-22KW Y2- 200L-4-30KW  Y2-225S-4-37KW  Y2-225M-4-45KW  Y2-250M-4-55KW  Y2-280S-4-75KW  Y2-280M-4-90KW

    YVP series reducer has the following models:
    YVP-631-4-0.12KW  YVP-632-4-0.18KW  YVP-711-4-0.25KW  YVP-712-4-0.37KW  YVP-801-4-0.55KW  YVP-802-4-0.75KW  YVP-90S-4-1.1KW  YVP-90L-4-1.5KW  YVP-100L1-4-2.2KW  YVP-100L2-4-3KW  YVP-112M-4-4KW  YVP-132S-4-5.5KW  YVP-132M-4-7.5KW  YVP-160M-4-11KW  YVP-160L-4-15KW  YVP-180M-4-18.5KW  YVP-180L-4-22KW  YVP-200L-4-30KW  YVP-225S-4-37KW  YVP-225M-4-45KW  YVP-250M-4-55KW  YVP-280S-4-75KW  YVP-280M-4-90KW

    YEJ series reducer has the following models:
    YEJ-631-4-0.12KW  YEJ-632-4-0.18KW  YEJ-711-4-0.25KW  YEJ-712-4-0.37KW  YEJ-801-4-0.55KW  YEJ-802-4-0.75KW  YEJ-90S-4-1.1KW  YEJ-90L-4-1.5KW  YEJ-100L1-4-2.2KW  YEJ-100L2-4-3KW  YEJ-112M-4-4KW  YEJ-132S-4-5.5KW  YEJ-132M-4-7.5KW  YEJ-160M-4-11KW  YEJ-160L-4-15KW  YEJ-180M-4-18.5KW  YEJ-180L-4-22KW  YEJ-200L-4-30KW  YEJ-225S-4-37KW  YEJ-225M-4-45KW  YEJ-250M-4-55KW  YEJ-280S-4-75KW  YEJ-280M-4-90KW

    YVPEJ series reducer has the following models:
    YVPEJ-631-4-0.12KW  YVPEJ-632-4-0.18KW  YVPEJ-711-4-0.25KW  YVPEJ-712-4-0.37KW  YVPEJ-801-4-0.55KW  YVPEJ-802-4-0.75KW  YVPEJ-90S-4-1.1KW  YVPEJ-90L-4-1.5KW  YVPEJ-100L1-4-2.2KW  YVPEJ-100L2-4-3KW  YVPEJ-112M-4-4KW  YVPEJ-132S-4-5.5KW  YVPEJ-132M-4-7.5KW  YVPEJ-160M-4-11KW  YVPEJ-160L-4-15KW  YVPEJ-180M-4-18.5KW  YVPEJ-180L-4-22KW  YVPEJ-200L-4-30KW  YVPEJ-225S-4-37KW  YVPEJ-225M-4-45KW  YVPEJ-250M-4-55KW  YVPEJ-280S-4-75KW  YVPEJ-280M-4-90KW

    YB2 series reducer has the following models:
    YB2-631-4-0.12KW  YB2-632-4-0.18KW  YB2-711-4-0.25KW  YB2-712-4-0.37KW  YB2-801-4-0.55KW  YB2-802-4-0.75KW  YB2-90S-4-1.1KW  YB2-90L-4-1.5KW  YB2-100L1-4-2.2KW  YB2-100L2-4-3KW  YB2-112M-4-4KW  YB2-132S-4-5.5KW  YB2-132M-4-7.5KW  YB2-160M-4-11KW  YB2-160L-4-15KW  YB2-180M-4-18.5KW  YB2-180L-4-22KW  YB2-200L-4-30KW  YB2-225S-4-37KW  YB2-225M-4-45KW  YB2-250M-4-55KW  YB2-280S-4-75KW  YB2-280M-4-90KW

    YE2 series reducer has the following models:
    YE2-631-4-0.12KW  YE2-632-4-0.18KW  YE2-711-4-0.25KW  YE2-712-4-0.37KW  YE2-801-4-0.55KW  YE2-802-4-0.75KW  YE2-90S-4-1.1KW  YE2-90L-4-1.5KW  YE2-100L1-4-2.2KW  YE2-100L2-4-3KW  YE2-112M-4-4KW  YE2-132S-4-5.5KW  YE2-132M-4-7.5KW  YE2-160M-4-11KW  YE2-160L-4-15KW  YE2-180M-4-18.5KW  YE2-180L-4-22KW YE2- 200L-4-30KW  YE2-225S-4-37KW  YE2-225M-4-45KW  YE2-250M-4-55KW  YE2-280S-4-75KW  YE2-280M-4-90KW

    YE3 series reducer has the following models:
    YE3-631-4-0.12KW  YE3-632-4-0.18KW  YE3-711-4-0.25KW  YE3-712-4-0.37KW  YE3-801-4-0.55KW  YE3-802-4-0.75KW  YE3-90S-4-1.1KW  YE3-90L-4-1.5KW  YE3-100L1-4-2.2KW  YE3-100L2-4-3KW  YE3-112M-4-4KW  YE3-132S-4-5.5KW  YE3-132M-4-7.5KW  YE3-160M-4-11KW  YE3-160L-4-15KW  YE3-180M-4-18.5KW  YE3-180L-4-22KW  YE3-200L-4-30KW  YE3-225S-4-37KW  YE3-225M-4-45KW  YE3-250M-4-55KW  YE3-280S-4-75KW  YE3-280M-4-90KW
