ZQ650-JZQ650 reducer for machine tool industry -JZQ gearbox

ZQ JZQ SOFT TOOTH FACE GEAR BOX
Electronic Catalog PDF Catalog

ZQ Cylindrical gear reducer gear carburizing, quenching, grinding, high bearing capacity, low noise; mainly used for belt conveyor and various kinds of transport machinery, can also be used to drive other general machinery. It has the advantages of high bearing capability, long service life, small volume, high efficiency, light weight, for the input shaft and the output shaft is vertically arranged in the driving device.

The field of cylindrical gear reducer is widely used in metallurgical equipment, mining equipment, automation equipment, food machinery, packaging equipment, tobacco equipment etc..

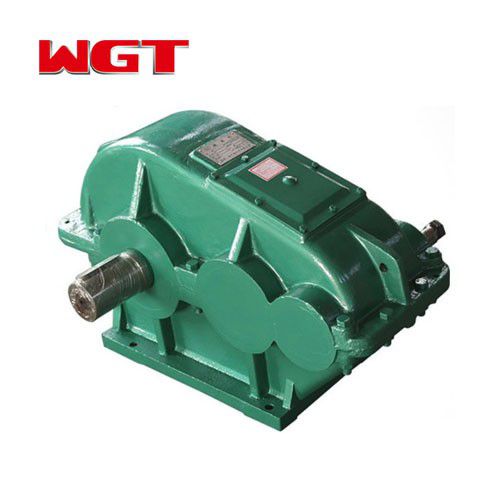

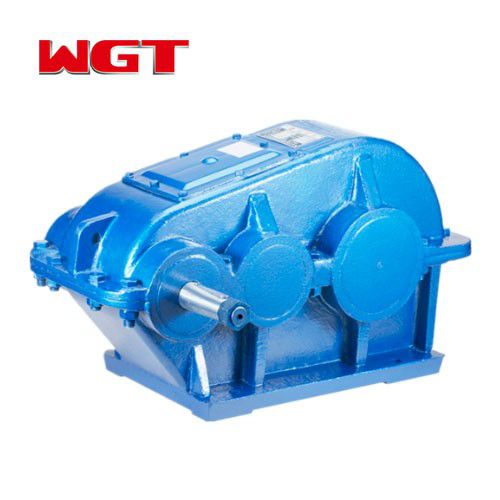

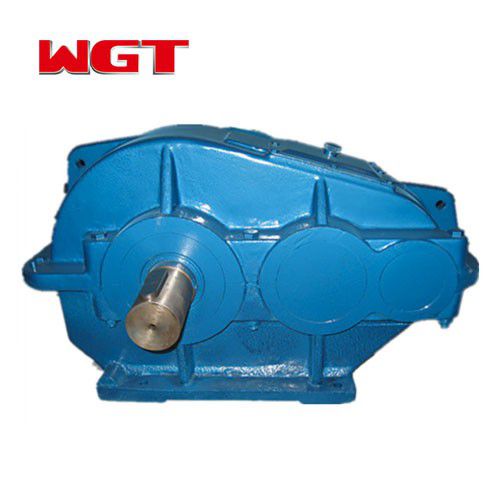

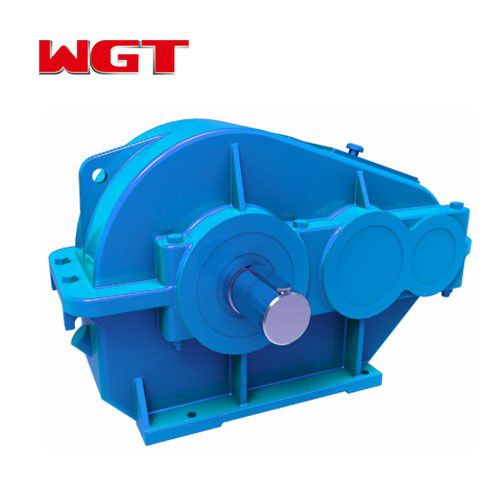

Zq Cylindrical gear speed reducer

Zq Cylindrical gear speed reducer is a three-level transmission of involute cylindrical gear reducer, mainly used inmining, metallurgy, cement, construction, chemical industry, light industry, etc all kinds of mechanical equipment, reduction drive, is suitable for the workplace being limited by the structure adopts the vertical installation, high-speed spindle speed not more than 1500 r/min, the work environment to + 40 °C and 40 °C -, can positive &negative operation.

Main Features

1.gear with high strength and low carbon alloy steel by carburizing quenching, tooth surface hardness of HRC58-62, gear are CNC grinding process, high precision, good contact.

2.transmission rate is high: single stage is greater than 96.5%, double stage is greater than 93%, grade three is greater than 90%.

3.stable operation, low noise.

4.small size, light weight, long service life, high carrying capacity.

5.easy to be disassembled and easy to install.

	Packaging

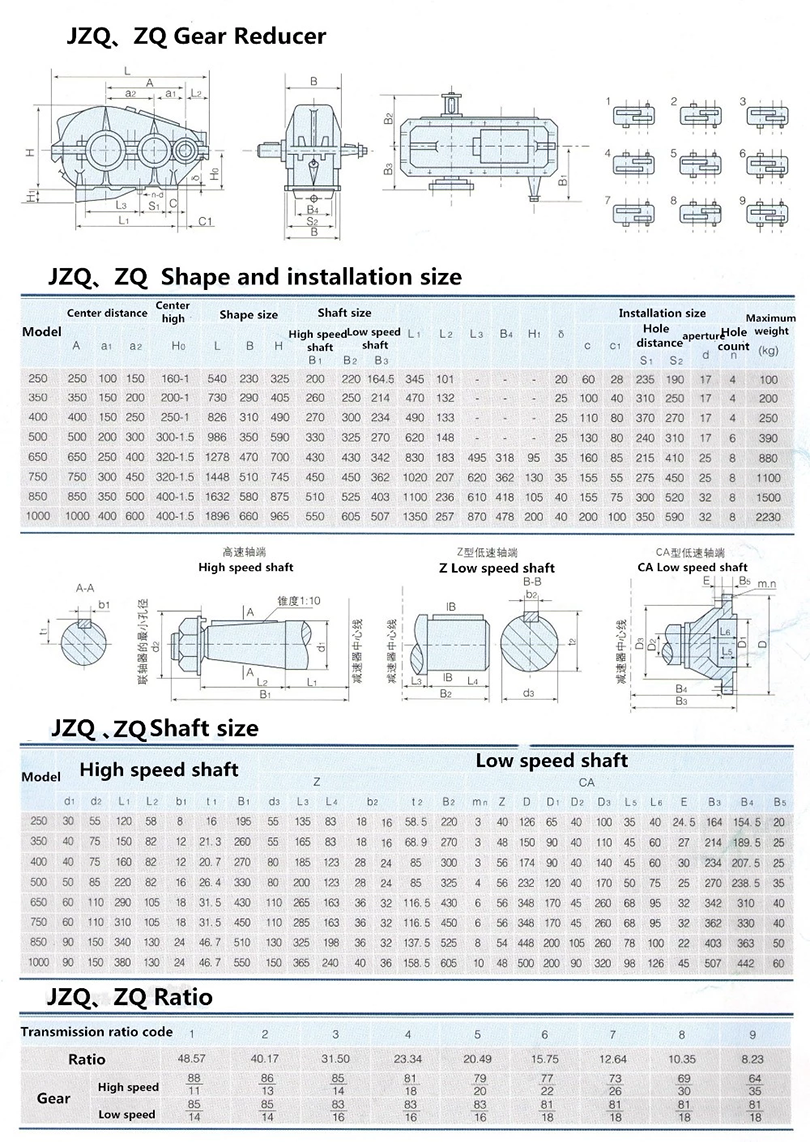

	Size	Refer to the specification table. Please consult the sales manager.
	Weight
	Packaging Details	The normal package is wooden box(Size.L*W*H). If export to europeancountries,the wooden box will be fumigated.If container is too tigher,wewill use pe film for packing or pack itaccording to customers special request.
