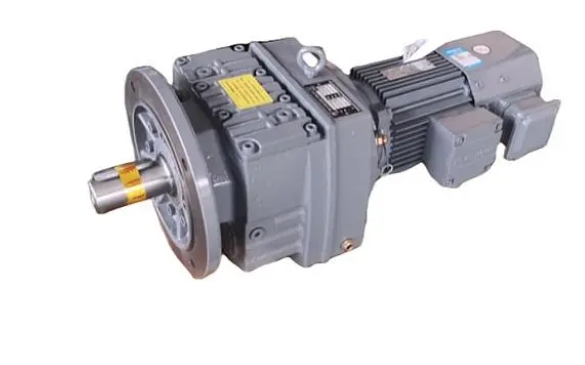

Helical gear reducer KAB157DRS200L4BE30-61.02-M4-90 model

The optional helical gear reducer is a widely used transmission equipment in the industrial field, characterized by high efficiency, low noise, high torque, and long service life. Among them, the KAB157DRS200L4BE30-61.02-M4-90 helical gear reducer is a common model suitable for various application scenarios.
Firstly, let's understand the basic principle of a helical gear reducer. A helical gear reducer is a transmission device that achieves deceleration through a helical gear pair. Its working principle is to use the meshing transmission of helical gears to convert the rotational motion of the input shaft into the deceleration motion of the output shaft. Due to the inclined tooth surface of the helical gear, it can achieve relative rotational motion between the tooth surfaces of two helical gears during meshing, thereby achieving the purpose of deceleration.
The KAB157DRS200L4BE30-61.02-M4-90 helical gear reducer is a typical model, with specific parameters as follows:
1. Model: KAB157DRS200L4BE30-61.02-M4-90
2. Reduction ratio: 61.02
3. Input power: 157kW
4. Input speed: 1475r/min
5. Output torque: 200kN. m
6. Output speed: 90r/min
7. Usage: Horizontal installation
8. Box material: cast iron
9. Cooling method: oil cooling
10. Protection level: IP54
This model of helical gear reducer has the following characteristics:
1. High efficiency: Adopting helical gear design, the meshing transmission efficiency is high, which can effectively reduce energy loss.
2. Low noise: During the working process, due to the smooth meshing and transmission of helical gears, the noise generated is relatively low.
3. High torque: By using a high-power input motor and a reasonable gear design, this model of reducer can provide a large output torque to meet the needs of various heavy-duty applications.
4. Long lifespan: Due to its reliable materials and precise processing technology, this model of reducer has a long lifespan, reducing the frequency of maintenance and replacement.
5. Easy installation: Adopting a horizontal installation method, it is convenient for users to install and adjust.
6. Good protective performance: With an IP54 protection level, it can effectively prevent the invasion of dust and water, ensuring its long-term stable working performance.
In practical applications, the KAB157DRS200L4BE30-61.02-M4-90 helical gear reducer can be widely used in various situations that require reduction transmission, such as metallurgy, mining, lifting, transportation, petroleum, chemical, textile, pharmaceutical and other fields. It can be an important component of the transmission system, used in conjunction with transmission components such as motors, pulleys, sprockets, etc., to achieve deceleration and torque transmission functions.
In summary, the KAB157DRS200L4BE30-61.02-M4-90 helical gear reducer is a high-performance, high-efficiency, low-noise, and long-life transmission equipment with broad application prospects.
