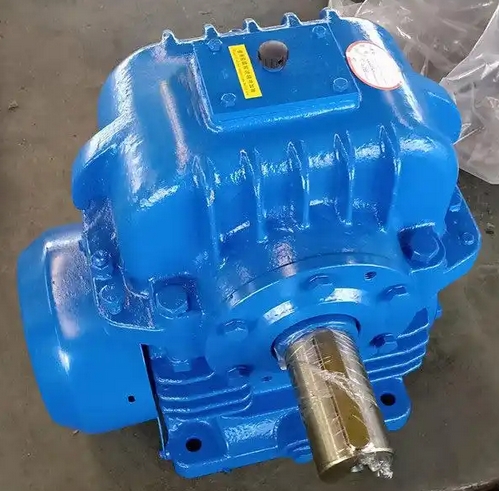

Introduce the specific parameters of CWU140-40-11 worm gear reducer

The specific parameters of CWU140-40-11 worm gear reducer are as follows:

Center distance: The center distance is 140mm.

Transmission ratio: The transmission ratio is 40.

Input speed: The input speed should not exceed 1500r/min.

Working environment temperature: The working environment temperature is -40 ℃ -40 ℃. When the working environment temperature is below 0 ℃, the lubricating oil must be heated to above 0 ℃ before starting; When the working environment temperature exceeds 40 ℃, cooling measures must be taken.

Lubricating oil quantity: The oil quantity is about 6L.

External dimensions and installation dimensions: B1 is 285mm, B2 is 275mm, B3 is 345mm, C1 is 230mm, C2 is 225mm. The input shaft diameter d1 is 38k6 (when the transmission ratio i is ≤ 12.5) or 28js6 (when the transmission ratio i is ≥ 16), the input shaft length I1 is 58mm, the keyway width b1 is 10mm, the shaft end diameter t1 is 41mm, and the input shaft length L1 is 228mm. The output shaft diameter d2 is 60m6, the output shaft length I2 is 105mm, the keyway width b2 is 18mm, the shaft end diameter t2 is 64mm, and the output shaft length L2 is 260mm. The reducer height H is 445mm, the base height h is 140mm, and the foot bolt diameter d3 is the same. For M16.

Rated input power and rated output torque: The rated input power P1 and rated output torque T2 vary at different speeds. When the speed is 1400r/min, the rated input power is about 9.9kW and the rated output torque is about 990N · m.
