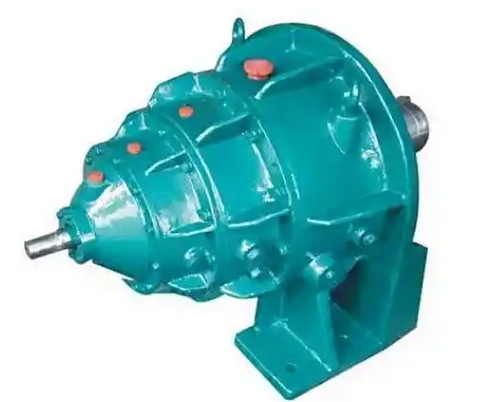

How does the transmission ratio of NCD500-280 planetary gearbox affect its performance

The transmission ratio of the NCD500-280 planetary gearbox is 280, which is a key performance parameter that has multiple impacts on its performance

The impact on output speed and torque: The transmission ratio determines the speed ratio between input and output. Generally, the larger the transmission ratio, the greater the output torque, but the lower the output speed. For the NCD500-280 planetary gearbox, its larger transmission ratio means that it can convert the input high-speed power into a larger torque output to meet the torque requirements of the equipment during low-speed operation, but the output speed will correspondingly decrease.

The impact on transmission efficiency: Generally speaking, the larger the transmission ratio, the lower the transmission efficiency. This is because as the transmission ratio increases, the number of meshing times of gears inside the planetary gear system increases, and friction losses also increase accordingly, leading to an increase in energy loss and a decrease in transmission efficiency. For the NCD500-280 planetary gearbox, its transmission ratio is 280, which belongs to a relatively large transmission ratio. In practical applications, it is necessary to consider the possibility of relatively low transmission efficiency.

The impact on accuracy and stiffness: The transmission ratio is related to the number of internal gears. Generally, the smaller the speed ratio and the more internal gears, the higher the accuracy and stiffness. The NCD500-280 planetary gearbox has a relatively large transmission ratio, which may result in lower accuracy and stiffness compared to some gearboxes with smaller transmission ratios. However, specific factors such as manufacturing process and gear design need to be considered.

The impact on structure and volume: Generally, the smaller the speed ratio, the larger the reducer. The NCD500-280 planetary gearbox has a relatively large transmission, and under the same load-bearing capacity requirements, its volume and weight may be relatively small, and its structure is more compact, making it easy to install and arrange in space limited situations.

The impact on operational stability: A reasonable transmission ratio can make the forces between various components of the planetary gear system more uniform during operation, thereby improving the stability and reliability of the entire system. If the transmission ratio of NCD500-280 planetary gearbox is designed reasonably, it can ensure smoother operation, stronger resistance to impact and vibration.
