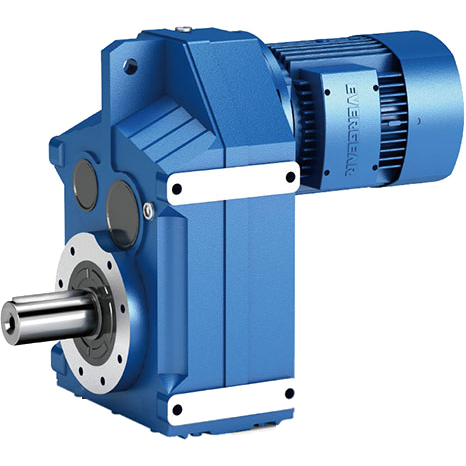

F series parallel shaft helical gear reducer

The F series parallel axis helical gear reducer is one of the F series reducers in the four major series of reducers. After optimized design and combined with international technology, it has high technological content and reaches the international advanced level. It mainly includes four series: ZDY (single stage), ZLY (two stage), ZSY (three stage), and ZFY (four stage).
The materials of the F series parallel axis reducer mainly include:
1. Cast iron box body;
2. Low carbon alloy steel with a tooth surface hardness of 60HRC and a hard layer thickness of>0.5mm after carbon and nitrogen co infiltration treatment and precision grinding;
3. Flat key: 45 steel, surface hardness above 45HRC;
4. Surface painting;
5. Cast iron: sprayed with RAL7031 gray blue paint.
Technical parameters of the F series parallel axis reducer:
Power: 0.18KW~200KW;
Torque: 3N · m~22500N · m;
Output speed: 0.06-374r/minF.
Performance characteristics of the F series parallel axis helical gear reducer:
1. The F series parallel axis helical gear reducer has advanced technology, high technological content, and superior performance;
2. Space saving, reliable and durable, with high overload resistance and a power output of over 90KW;
3. High energy, low consumption, low vibration, low voice, and a gearbox efficiency of over 95%;
4. Select high-quality forged steel materials, steel cast iron casing, and the gear surface undergoes high-frequency heat treatment;
5. Precision machining ensures the parallelism and positioning accuracy of the shaft, ensuring the quality of product use;
6. Parallel output, compact structure, high torque transmission, smooth operation, and long service life;
7. The main parameters such as center distance and nominal transmission ratio have been optimized and designed, resulting in good interchangeability of the main components.
F series parallel axis helical gear reducer model:
F37, F47, F57, F67, F77, F87, F97, F107, F127, F157.
