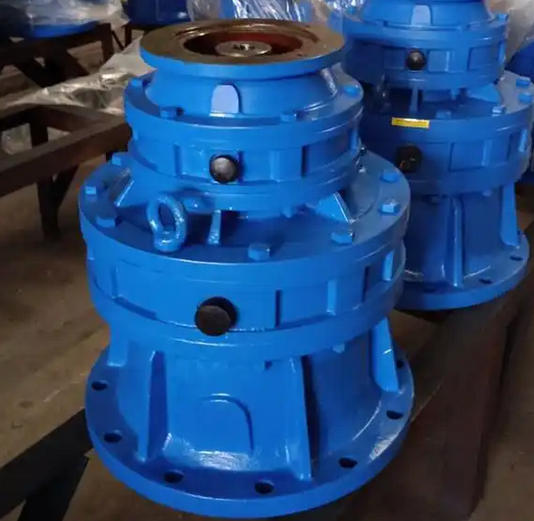

How to clean the vent hole of XLED0.55-53-3481 cycloidal pinwheel reducer

If the ventilation hole is blocked, it will affect the internal pressure balance of the gearbox, causing lubricating oil leakage or seal damage. Timely cleaning is crucial.

To clean the ventilation holes of XLED0.55-53-3481 cycloidal pinwheel reducer, the following steps can be followed:

1. Shutdown cooling
Ensure that the gearbox has stopped running for more than 30 minutes, and wait for the oil temperature to drop to near ambient temperature to avoid hot oil spraying out or pressure release too quickly during operation.

2. Preliminary inspection and cleaning
Observe whether there are oil stains, dust, or sludge accumulation around the vent hole. Wipe the surface with a clean cotton cloth, then gently unclog the holes with a fine wire or soft needle to remove internal impurities.

3. Deep cleaning (optional)
If the blockage is severe, the ventilation cap can be removed and soaked in kerosene or cleaning agent before brushing to ensure smooth airway. Check whether the inside of the breathable cap is aged or damaged, and replace it if necessary.

4. Maintenance and upgrade suggestions
To prevent repeated blockages, it may be considered to install breathable devices with filtering functions, such as micro filter cotton or labyrinth breathable plugs, to achieve dual effects of breathability and dust prevention.

5. Regular maintenance reminder
It is recommended to check the status of the ventilation holes once a month and promptly deal with any oil stains found; Perform dismantling, cleaning, and maintenance once every quarter to ensure long-term stable operation.
