How to adjust the thermal expansion clearance of FAF77-17.49Y5.5-4P-M1 gear reducer

The thermal expansion clearance adjustment of FAF77-17.49-Y5.5-4P-M1 gear reducer is based on the preset assembly clearance and temperature compensation design to cope with thermal elongation during operation. This type of F-series parallel axis helical gear reducer causes shaft expansion due to temperature rise during operation. If the clearance is not properly pre adjusted, it is easy to cause bearing overload or jamming.

According to the design specifications of the F series reducer, the adjustment methods mainly include:

1. Cold pre adjustment method: During assembly at room temperature, reserve an appropriate axial clearance of the bearing (usually 0.05~0.1mm) to offset the thermal elongation during operation. This value needs to be calculated based on equipment operating conditions, ambient temperature, and continuous operation time.

2. Floating support structure: F-series reducers often adopt a bearing configuration with one end fixed and one end floating. The floating end allows axial displacement, absorbs thermal expansion stress, and avoids damage caused by rigid constraints.

3. Double piece gear misalignment adjustment (high-precision scenario): If there are strict requirements for return clearance (such as servo drive system), a double piece thin gear+spring pre tensioning structure can be used to achieve "zero backlash" compensation and effectively suppress meshing changes caused by thermal deformation.

4. Regular inspection and maintenance: After running for a period of time, use a feeler gauge or micrometer to check the bearing clearance. If abnormal wear or clearance reduction is found, it should be dismantled and adjusted in a timely manner.

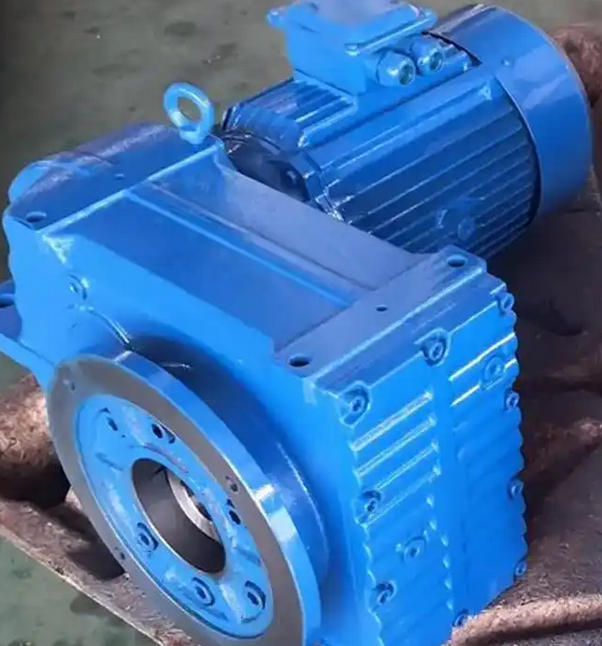

As FAF77 belongs to the F-series modular combination model, its structure is similar to FA77, supporting flange installation and mechatronic integration. It is recommended to refer to the thermal expansion coefficient and assembly tolerance standards in the original technical manual for precise adjustment.
