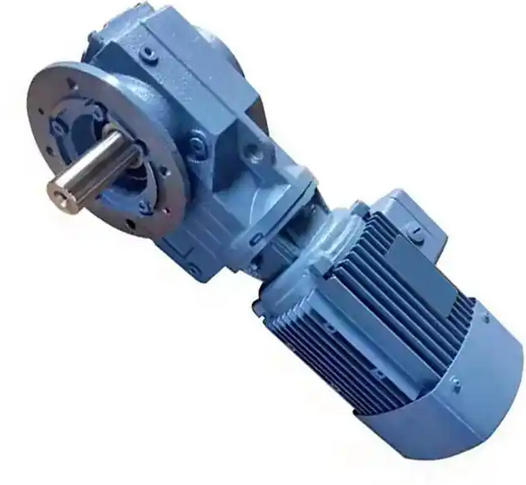

What tools can help set the load and speed of KF47-NA45-1.5-4P-M3-A-180 reducer

Here are some tools that can help set the load and speed of the KF47-NA45-1.5-4P-M3-A-180 gearbox:

Gearbox selection software: such as SEW-EURODRIVE, a specialized selection software provided by gearbox manufacturers. By inputting parameters such as gearbox model, motor power, reduction ratio, and load type, the software can calculate the appropriate load and speed range. In addition, general gear reducer design and gear parameter calculation software such as Gearbox gear reducer design system can also assist in determining the load and speed of the reducer based on the relevant input parameters.

Torque calculator: Tools such as the "motor reducer torque calculator" are usually available in the form of Excel spreadsheets or other software. By inputting parameters such as motor power, speed, and reducer speed ratio, the output torque after deceleration can be calculated to help determine the load size. At the same time, the output speed can also be calculated based on the speed formula.

Variable frequency drive: In actual operation, the variable frequency drive can adjust the motor speed by changing the power supply frequency of the motor, thereby controlling the input speed of the reducer. By setting the parameters of the frequency converter, such as frequency range, acceleration and deceleration time, precise control of the gearbox speed can be achieved, and the output torque can also be adjusted according to the load situation.

Test bench equipment: The gearbox test bench is usually composed of a computer, oscilloscope, tachometer, loading device, etc. Among them, the loading device can simulate the load under actual working conditions, control the testing process through a computer, and set the load size; The tachometer is used to measure the speed of the gearbox, thereby helping to determine the appropriate speed parameters.

LabVIEW reducer loading control system: This is an automated loading control system based on LabVIEW, with hardware including magnetic powder loader, three-phase asynchronous motor, frequency converter, various sensors, etc. Operators can select different loading modes and adjust loading parameters through the interface. The system automatically adjusts the output of the magnetic powder loader according to the set parameters to achieve the preset testing conditions. At the same time, it can monitor the speed, torque, and temperature changes of the reducer in real time.
